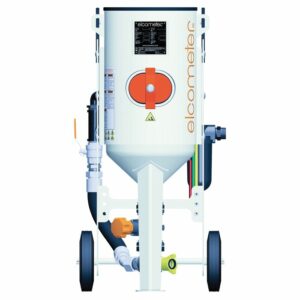

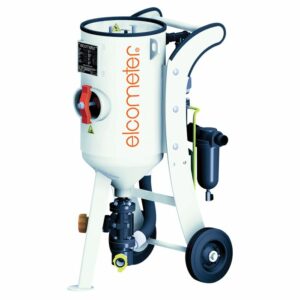

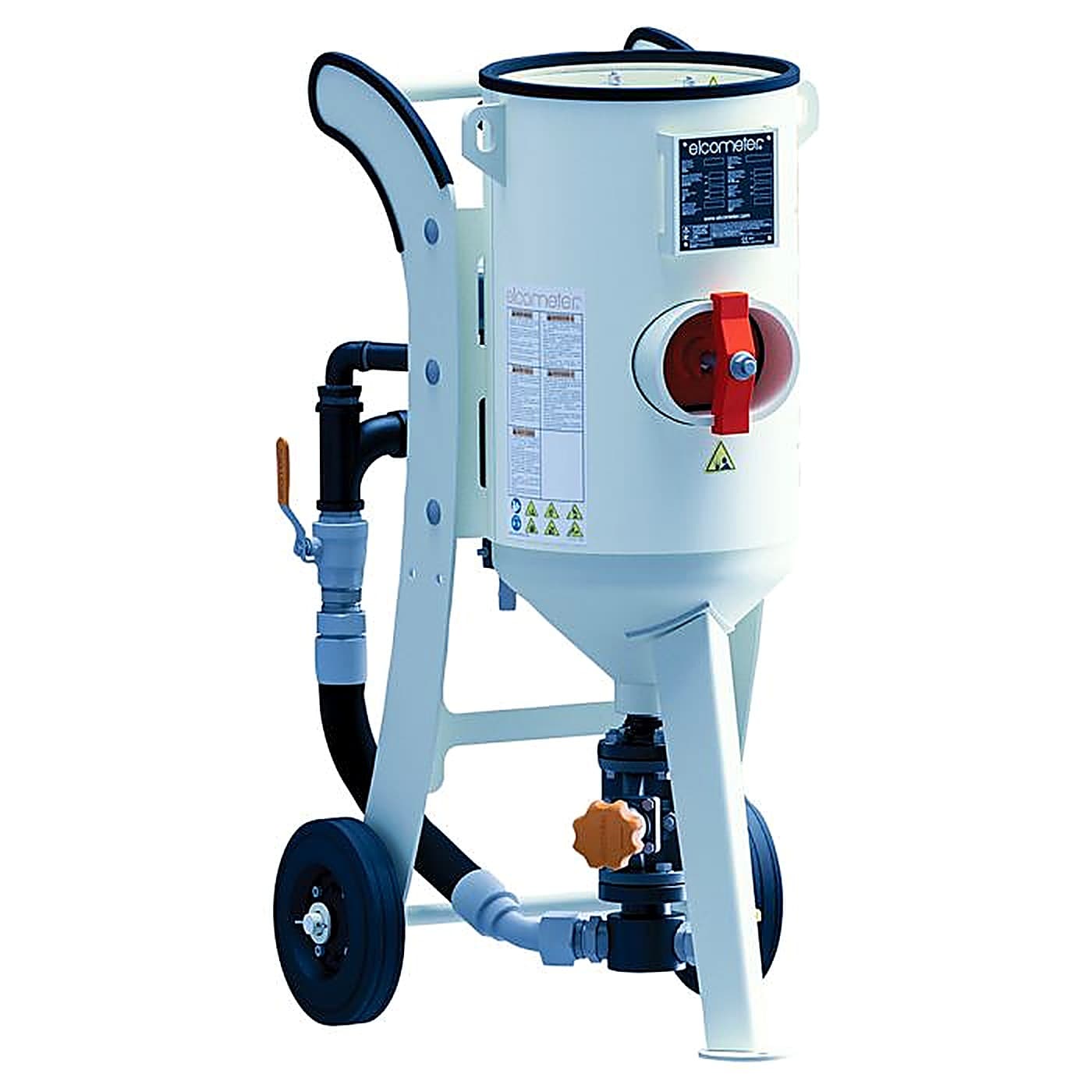

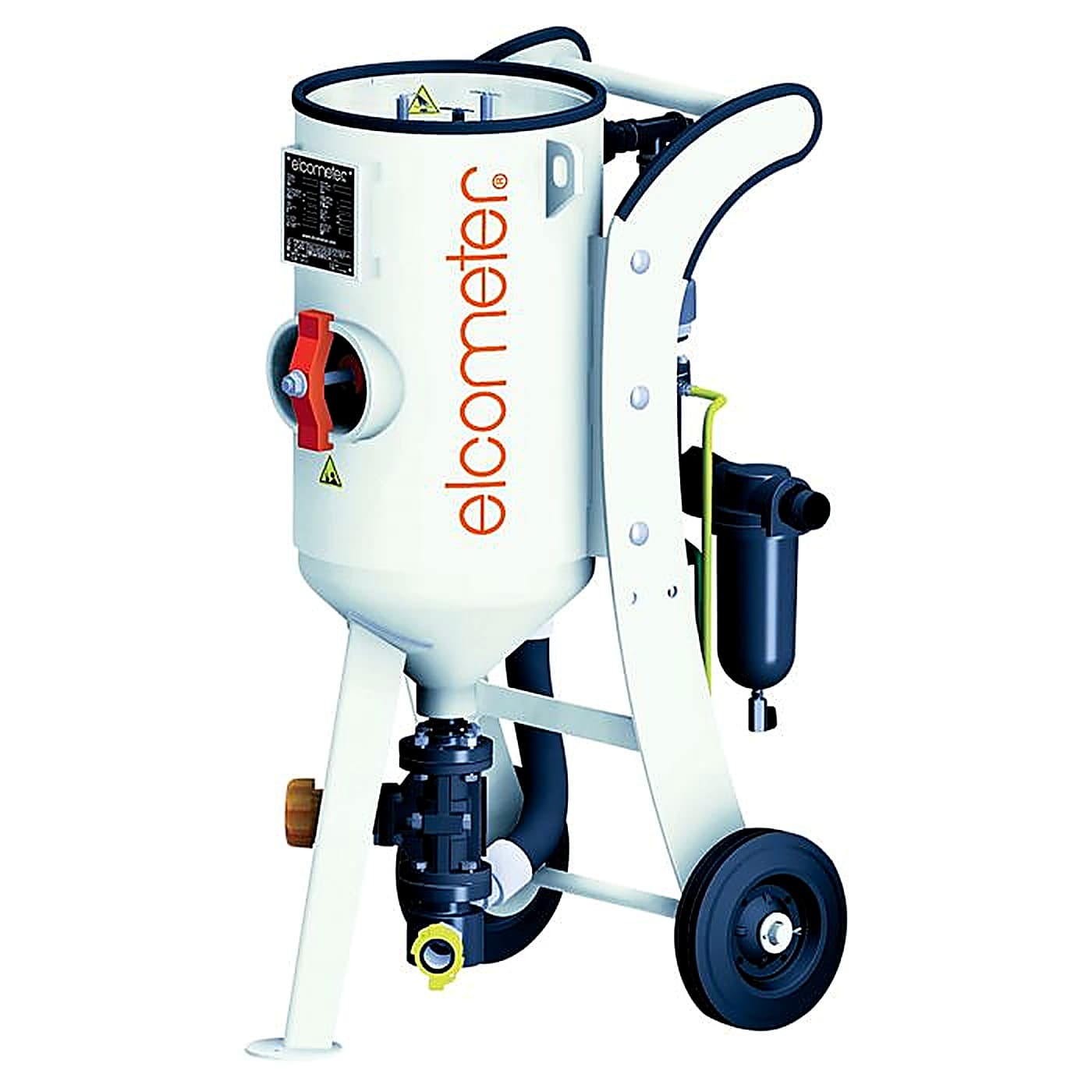

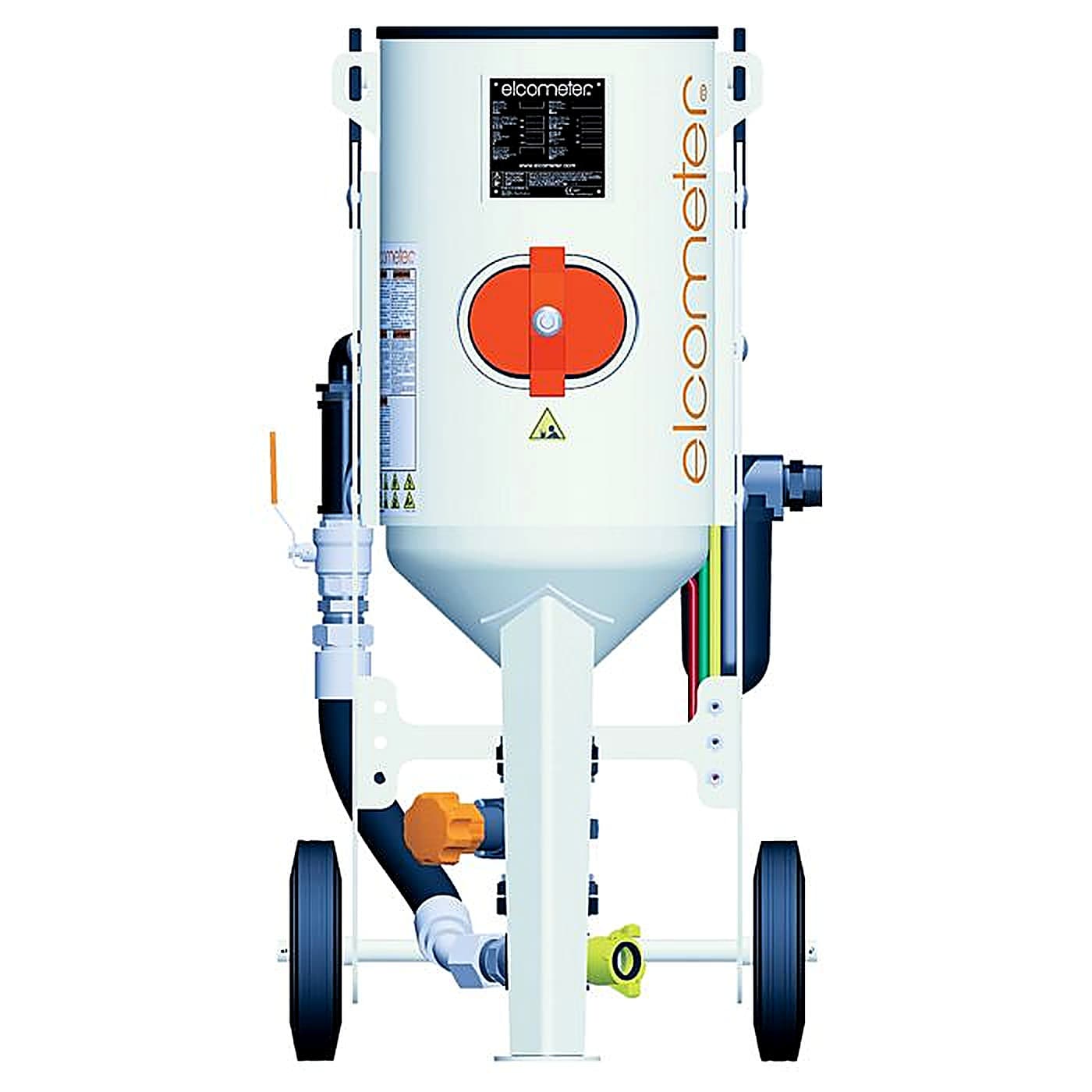

Elcometer 1460 Portable Abrasive Blast Machine 60 litre – 12bar
Product Description
The Elcometer 1460 Portable Abrasive Blast Machine is ideal for mobile contractors or small blast rooms.
- Ideal for small blast rooms and spot blasting
- Small size makes it easy to manoeuvre the portable abrasive blast machine
- Available with a range of abrasive blast media valves to suit your application
- Heavy duty 6mm construction
- Easy and quick to service
Enhance Your Performance
The Elcometer 1460 Portable Abrasive Blast Machine is engineered to work harder, last longer and be faster to maintain. To find out how efficiency has been ensured through the blast pot.
Safe & Reliable
Rugged, reliable and easy to use, Elcometer Performance Blast Machine & Valves are supplied with a full 12 month warranty and are engineered & tested to be incredibly efficient, durable and safe. To learn more about how the pot’s safety features combat dangerous sandblasting issues.
Elcometer Engineered
The Elcometer 1460 Portable Abrasive Blast Machine is manufactured to an industry leading specification and designed and engineered by Elcometer experts. For more information about the high quality components of the Elcometer 1460 Portable Abrasive Blast Machine, including the high flow pipework, precision metering valves and hardwearing mixer T’s.
Product Range
Elcometer 1460 Portable Abrasive Blast Machine Kit 1 with Automatic General Valve – 12bar
Kit includes:
- 14″ 60 litre Abrasive Blast Machine
- Pressure Test Certificate
- RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
- 20m Pneumatic Control Hose and Deadman’s Handle (DMHII)
- Choke Valve and Pusher Line

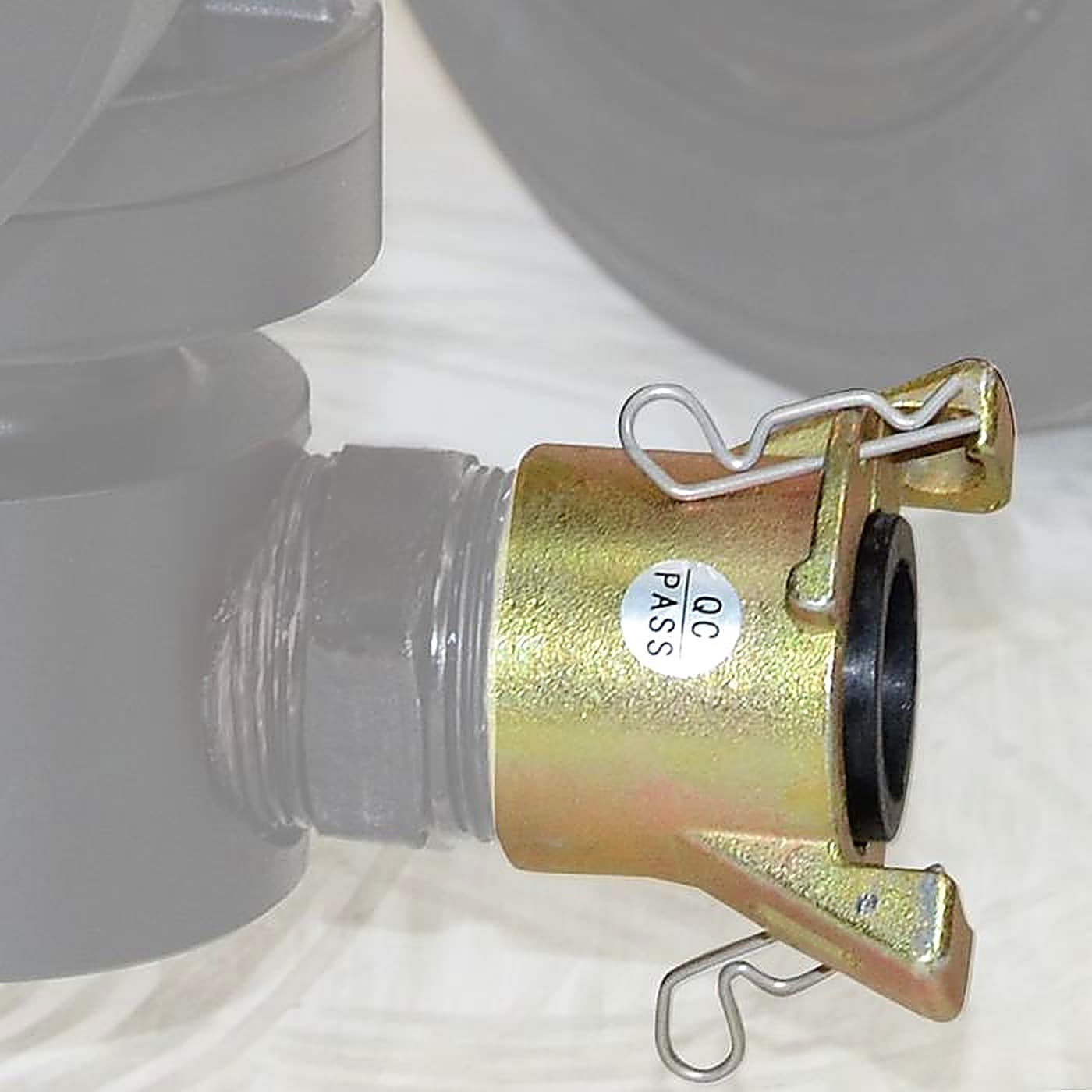

- Automatic General Valve with Mixer T and Metal Pot Coupling
- Moisture Separator
PED
- Maximum Working Pressure :12bar
- Valve Type :AGV
- Part Number :M1460-AGV1-B
ASME
- Maximum Working Pressure :174psi
- Valve Type :AGV
- Part Number :M1460-AGV1-N
Elcometer 1460 Portable Abrasive Blast Machine Kit 1 with General Valve – 12bar
Kit includes:
- 14″ 60 litre Abrasive Blast Machine
- Pressure Test Certificate
- RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
- 20m Pneumatic Control Hose and Deadman’s Handle (DMHII)
- Choke Valve and Pusher Line
- General Media Valve with Flanged T and Metal Pot Coupling
- Moisture Separator
PED
- Maximum Working Pressure :12bar
- Valve Type :GV
- Part Number :M1460-GV1-B
ASME
- Maximum Working Pressure :174psi
- Valve Type :GV
- Part Number :M1460-GV1-N
Elcometer 1460 Portable Abrasive Blast Machine Kit 2 with Automatic General Valve – 12bar
Kit includes:
- 14″ 60 litre Abrasive Blast Machine
- Pressure Test Certificate
- RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
- 20m Pneumatic Control Hose and Deadman’s Handle (DMHII)
- Choke Valve and Pusher Line
- Automatic General Valve with Mixer T and Metal Pot Coupling
- Moisture Separator
- 20m, 32mm ID Blast Hose with Cast Iron Hose Couplings & Nylon Nozzle Holder

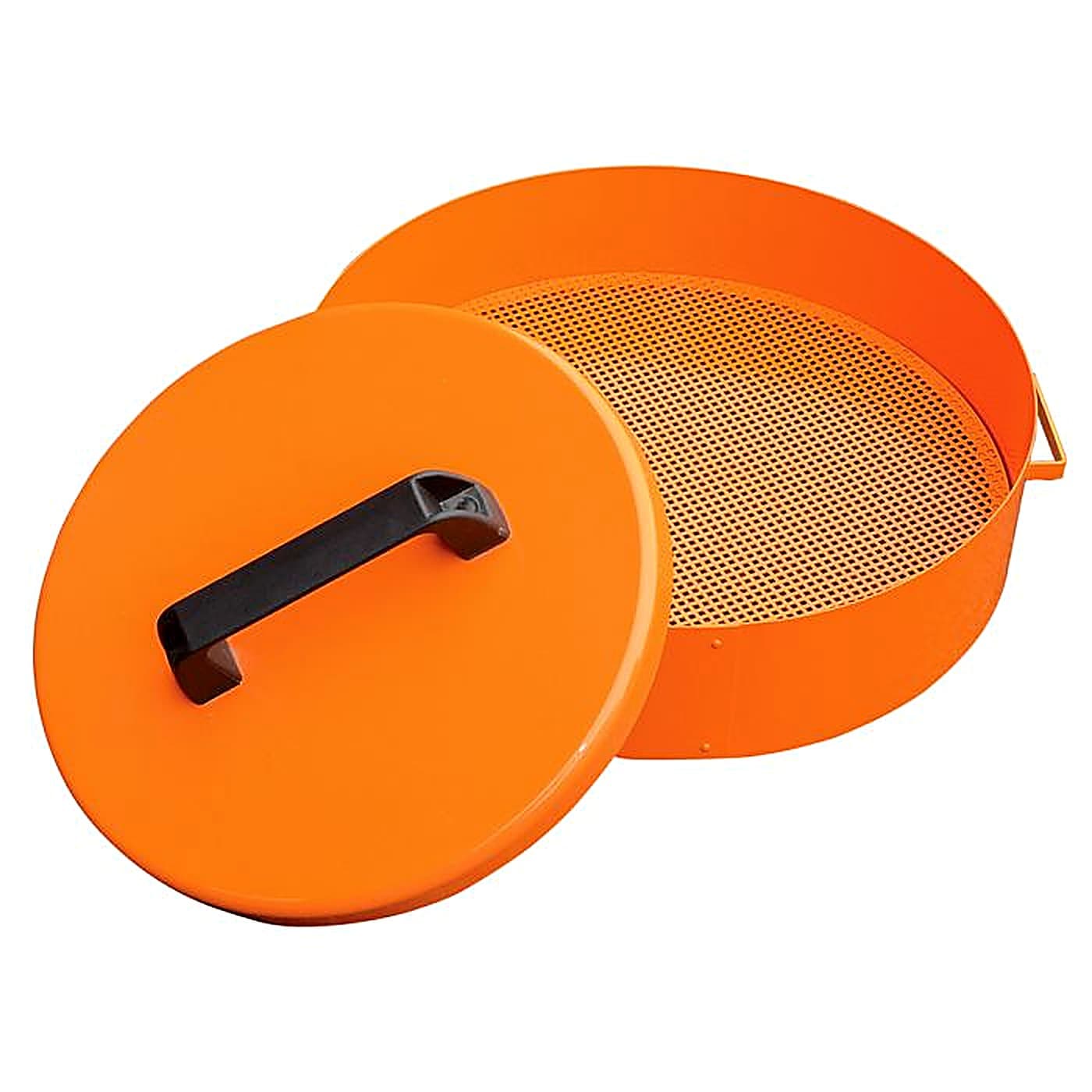

- Externally Mounted Sieve and Lid
PED
- Maximum Working Pressure :12bar
- Valve Type :AGV
- Part Number :M1460-AGV2-B
ASME
- Maximum Working Pressure :174psi
- Valve Type :AGV
- Part Number :M1460-AGV2-N
Elcometer 1460 Portable Abrasive Blast Machine Kit 2 with General Valve – 12bar
Kit includes:
- 14″ 60 litre Abrasive Blast Machine
- Pressure Test Certificate
- RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
- 20m Pneumatic Control Hose and Deadman’s Handle (DMHII)
- Choke Valve and Pusher Line
- General Media Valve with Mixer T and Metal Pot Coupling
- Moisture Separator
- 20m, 32mm ID Blast Hose with Cast Iron Hose Couplings & Nylon Nozzle Holder
- Externally Mounted Sieve and Lid
PED
- Maximum Working Pressure :12bar
- Valve Type :GV
- Part Number :M1460-GV2-B
ASME
- Maximum Working Pressure :174psi
- Valve Type :GV
- Part Number :M1460-GV2-N
Spare Parts
PED
| Elcometer 1460 Portable Abrasive Blast Machine Spare Parts | |||||||
| Item | Part Number | Description | |||||
| 1 | MT28622 | Pop Up Valve | |||||
| 2 | MT28631-3 | 25mm Pop Up Shaft for Elcometer 1460 (144mm) | |||||
| 3 | MT29661 | 25mm Female 90° Equal Elbow | |||||
| 4 | MT29663 | 38mm Hex Nipple | |||||
| 5 | MT28617 | Moisture Separator Assembly | |||||
| 6 | MT29662 | 38mm Male/Male Union Taper Seat | |||||
| 7 | MT29664 | 6mm Bulkhead Connector (x3) | |||||
| 8 | MT29711 | Elcometer 1460 Twin Airline Hose Assembly (Yellow & Green) | |||||
| 9 | MT29712 | Airline Assembly for Elcometer 1460 (Red) | |||||
| 10 | MT28627-5 | Pop Up Valve O-Ring (x5) | |||||
| 11 | MT29601 | Protective Edging Strip Kit (2.7m) | |||||
| 12 | MT29667 | Spring Cotter Pin Type E (x3) | |||||
| 13 | MT29701 | Short Deflector Plate Spacer – 16mm (x3) | |||||
| 14 | MT29702 | Long Deflector Plate Spacer – 30mm (x3) | |||||
| 15 | MT29670 | Deflector Plate | |||||
| 16 | MT28629-2 | Deflector Plate Shaft – 51mm (x3) | |||||
| 17 | MT29672 | 25mm Backnut (Recessed) | |||||
| 18 | MT29673 | 25mm Female/Female Union Taper Seat | |||||
| 19 | MT29679 | 25mm Hex Nipple | |||||
| 20 | MT29680 | 25mm Exhaust T Assembly (complete with MT29681 Exhaust Plug) | |||||
| 21 | MT29681 | 25mm Exhaust Plug | |||||
| 22 | MT29714 | 25mm Pipe for Elcometer 1460 (110mm) | |||||
| 23 | MT29683 | 25mm Socket | |||||
| 24 | MT29704 | 25mm Male/Female Equal Union Taper Seat | |||||
| 25 | MT29713 | 25mm Pipe for Elcometer 1460 (126mm) | |||||
| 26 | MT29706 | 25mm Male/Female 90° Elbow | |||||
| 27 | MT29707 | 1″ to 11⁄2” Reducing Bush (25 x 38mm) | |||||
| 28 | MT28599 | 19mm Reinforced Union Elbow | |||||
| 29 | MT29688 | 19mm Hex Nipple | |||||
| 30 | MT29465 | Elcometer RCV4000+ Remote Control Valve | |||||
| 31 | MT29656 | Petcock Valve Assembly – (Red Handle) | |||||
| 32 | MT30122-5 | 38mm Male/Female Equal Union Taper Seat | |||||
| 33 | MT29708 | 38mm Equal Pitcher T | |||||
| 34 | MT30094 | 38mm Choke Valve Handle | |||||
| 35 | MT29177 | 38mm Choke Valve Assembly (include MT30094 Choke Valve Handle) | |||||
| 36 | MT29710 | 38mm 60° Cone Male/Male Adaptor | |||||
| 37 | MT29658 | 6mm Ball Valve Assembly – (Black Handle) | |||||
| 38 | MT29660 | 6mm Airline Ball Valve Assembly (Black Handle) | |||||
| 39 | MT28597 | Exhaust Silencer Assembly | |||||
| 40 | MT29692-2 | Protection Guard for Elcometer 1460 | |||||

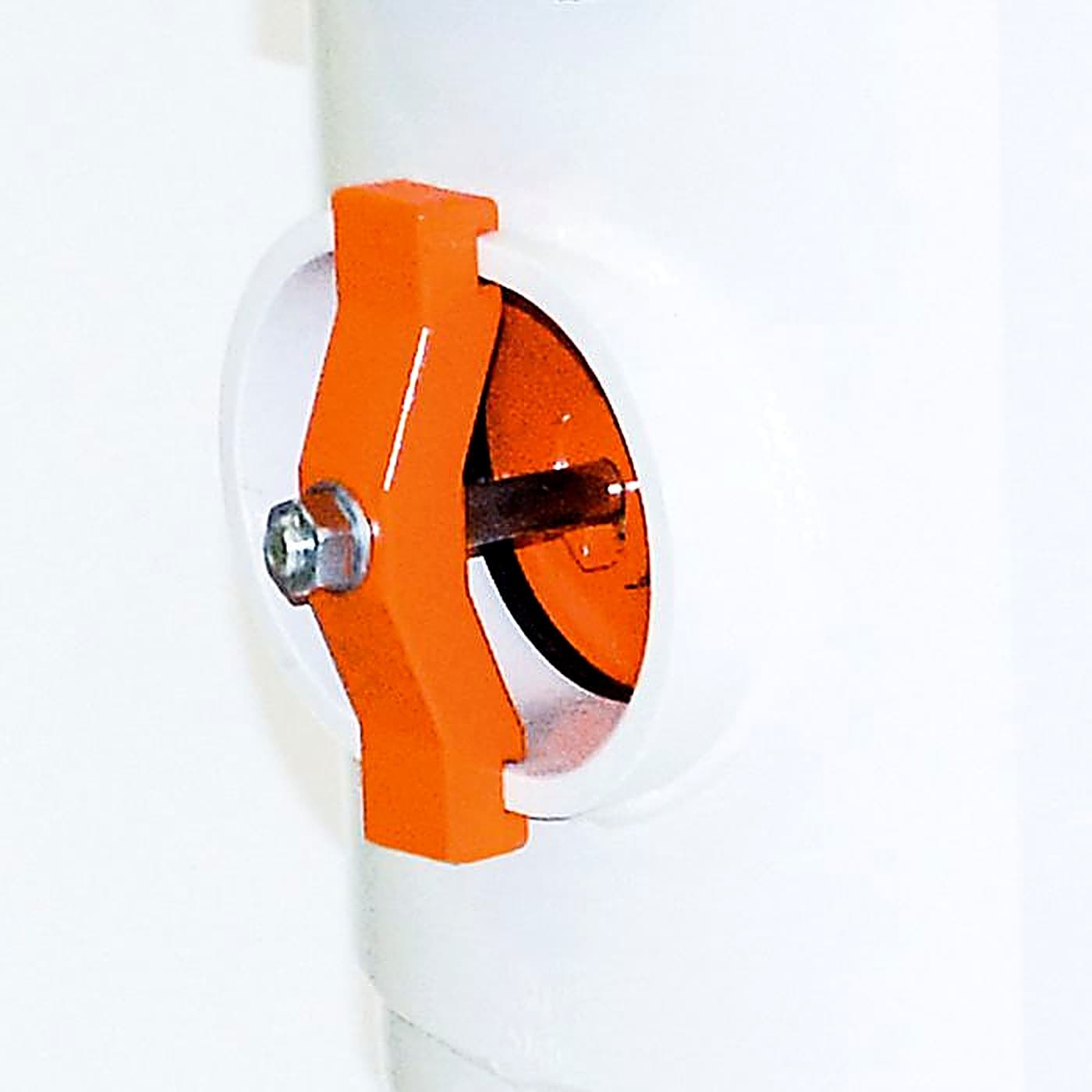

| 41 | MT28616 | Elcometer Inspection Hatch Door for Elcometer 1460 | |||||
| 42 | MT28613 | ElcoFit™ Door Sealing Gasket | |||||
| 43 | MT29695 | Elcometer Inspection Door Hatch Bolt – M16 x 110mm | |||||
| 44 | MT28615 | Inspection Hatch Door Yoke | |||||
| 45 | MT29696 | M16 Hexagon Flanged Nut | |||||
| 46 | MT28636 | Ø250mm Diameter Wheel (x1) | |||||
| 47 | MT29697 | Flat Washer (x8) | |||||
| 48 | MT29698 | Split Cotter Pin (x4) | |||||
| – | MT29490-3 | Elcometer RCV4000+ & Pipework Assembly Service Kit (contains items in orange) | |||||
| – | MT29180 | Elcometer Safety Label Kit | |||||
ASME
| Elcometer 1460 Portable Abrasive Blast Machine Spare Parts | |||||||
| Item | Part Number | Description | |||||
| 1 | MT28622 | Pop Up Valve | |||||
| 2 | MT28631-3N | 25mm Pop Up Shaft for Elcometer 1460 | |||||
| 3 | MT29661N | 25mm Female 90° Equal Elbow | |||||
| 4 | MT31013-3N | 38mm Hex Nipple | |||||
| 5 | MT28617N | Moisture Separator Assembly | |||||
| 6 | MT30553-1N | 38mm Close Nipple | |||||
| 7 | MT31018-5N | 38mm Union Brass Seat | |||||
| 8 | MT29664N | 6mm Bulkhead Connector (x3) | |||||
| 9 | MT29711N | Elcometer 1460 Twin Airline Hose Assembly (Yellow & Green) | |||||
| 10 | MT29712N | Airline Assembly for Elcometer 1460 (Red) | |||||
| 11 | MT28627-5 | Pop Up Valve O-Ring (x5) | |||||
| 12 | MT29601 | Protective Edging Strip Kit (2.7m) | |||||
| 13 | MT29667 | Spring Cotter Pin Type E (x3) | |||||
| 14 | MT29701 | Short Deflector Plate Spacer – 16mm (x3) | |||||
| 15 | MT29702 | Long Deflector Plate Spacer – 30mm (x3) | |||||
| 16 | MT29670 | Deflector Plate | |||||
| 17 | MT28629-2 | Deflector Plate Shaft – 51mm (x3) | |||||
| 18 | MT29672N | 25mm Backnut | |||||
| 19 | MT31018-3N | 25mm Union Brass Seat | |||||
| 20 | MT31013-2N | 25mm Hex Nipple | |||||
| 21 | MT30574-2N | 25mm Equal T | |||||
| 22 | MT29681N | 25mm Solid Plug | |||||
| 23 | MT30556-4N | 25mm SCH 40 Pipe Tube | |||||
| 24 | MT31017N | 25mm Machine Socket | |||||
| 25 | MT30556-3N | 25mm SCH 40 Pipe Tube | |||||
| 26 | MT31019-2N | 25mm 90° Street Elbow | |||||
| 27 | MT30577-3N | 25mm to 38mm Reducing Bush | |||||
| 28 | MT31013-1N | 19mm Hex Nipple | |||||
| 29 | MT28599N | 19mm Union Elbow Male | |||||
| 30 | MT29465N | Elcometer RCV4000+ Remote Control Valve | |||||
| 31 | MT29656N | Petcock Valve Assembly (Red Handle) | |||||
| 32 | MT30566-1N | 38mm Pipe | |||||
| 33 | MT29708N | 38mm Equal Pitcher T | |||||
| 34 | MT30094N | 38mm Choke Valve Handle | |||||
| 35 | MT29177N | 38mm Choke Valve Assembly (include MT30094N Choke Valve Handle) | |||||
| 36 | MT29710N | 38mm NPTF Male x 7/8 JIC Male Adaptor | |||||
| 37 | MT29658N | 6mm Ball Valve Assembly – (Black Handle) | |||||
| 38 | MT29660N | 6mm Airline Ball Valve Assembly (Black Handle) | |||||
| 39 | MT28597N | Exhaust Silencer Assembly | |||||
| 40 | MT29692-2 | Protection Guard for Elcometer 1460 | |||||
| 41 | MT28616 | Elcometer Inspection Hatch Door for Elcometer 1460 | |||||
| 42 | MT28613 | ElcoFit™ Door Sealing Gasket | |||||
| 43 | MT29695N | Elcometer Inspection Door Hatch Bolt – M16 x 110mm | |||||
| 44 | MT28615 | Inspection Hatch Door Yoke | |||||
| 45 | MT29696N | M16 Hexagon Flanged Nut | |||||
| 46 | MT28636 | Ø250mm Diameter Wheel (x1) | |||||
| 47 | MT29697 | Flat Washer (x8) | |||||
| 48 | MT29698 | Split Cotter Pin (x4) | |||||
| – | MT29490-3N | Elcometer RCV4000+ & Pipework Assembly Service Kit (contains items in orange) | |||||
| – | MT29180 | Elcometer Safety Label Kit | |||||
Technical Specifications
| Elcometer 1460 Abrasive Blast Machine – 12bar | |||
| Capacity1 | |||
| Volume | 60 Litres | ||
| Garnet Grit | 140kg | ||
| Steel Shot | 264kg | ||
| Pot Diameter: | 355mm | ||
| Height: | 1165mm | ||
| Width: | 615mm | ||
| Depth: | 714mm | ||
| Weight: | 95kg | ||
| Pipework Diameter: | 38mm | ||
| Maximum Working Pressure (WP)2: | 12bar | ||
| Operating Temperature Range: | 0 to 60oC | ||
PED
| Kit Selection | Part Numbers | |||||
|---|---|---|---|---|---|---|
| Elcometer Blast Machines Kits are available with: | Portable Kit 1 Kit 2 | |||||
General Media Valve (G) | Automatic General Valve (A) | M1440-GV1-B M1440-AGV1-B | M1440-GV2-B M1440-AGV2-B | |||
| 355.6mm, 60 litre Abrasive Blast Machine | ■ ■ | ■ ■ | ||||
| Pressure Test Certificate | ■ ■ | ■ ■ | ||||
| RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer | ■ ■ | ■ ■ | ||||
| 20m Pneumatic Control Hose and Deadman’s Handle (DMHII) | ■ ■ | ■ ■ | ||||
| Choke Valve and Pusher Line | ■ ■ | ■ ■ | ||||
| Abrasive Metering Valve with Mixer T and Metal Pot Coupling | G A | G A | ||||
| Moisture Separator | ■ ■ | ■ ■ | ||||
| 20m, 32mm ID Blast Hose with Cast Iron Hose Couplings and Nylon Nozzle Holder |
| ■ ■ | ||||
| Externally Mounted Sieve and Lid |
| ■ ■ | ||||
1 Garnet & steel shot capacity figures based on typical media bulk density. Note that bulk density also varies according to media size and grade.
2 Do not operate this abrasive blast machine unless there is an appropriate safety pressure relief valve within the pressurised system as a whole.
ASME
| Kit Selection | Part Numbers | |||||
|---|---|---|---|---|---|---|
| Elcometer Blast Machines Kits are available with: | Portable Kit 1 Kit 2 | |||||
| General Media Valve (G) | Automatic General Valve (A) | M1440-GV1-N M1440-AGV1-N | M1440-GV2-N M1440-AGV2-N | |||
| 355.6mm, 60 litre Abrasive Blast Machine | ■ ■ | ■ ■ | ||||
| Pressure Test Certificate | ■ ■ | ■ ■ | ||||
| RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer | ■ ■ | ■ ■ | ||||
| 20m Pneumatic Control Hose and Deadman’s Handle (DMHII) | ■ ■ | ■ ■ | ||||
| Choke Valve and Pusher Line | ■ ■ | ■ ■ | ||||
| Abrasive Metering Valve with Mixer T and Metal Pot Coupling | G A | G A | ||||
| Moisture Separator | ■ ■ | ■ ■ | ||||
| 20m, 25mm ID Blast Hose with Cast Iron Hose Couplings and Nylon Nozzle Holder |
| ■ ■ | ||||
| Externally Mounted Sieve and Lid |
| ■ ■ | ||||
1 Garnet & steel shot capacity figures based on typical media bulk density. Note that bulk density also varies according to media size and grade.
2 Do not operate this abrasive blast machine unless there is an appropriate safety pressure relief valve within the pressurised system as a whole.
Accessories

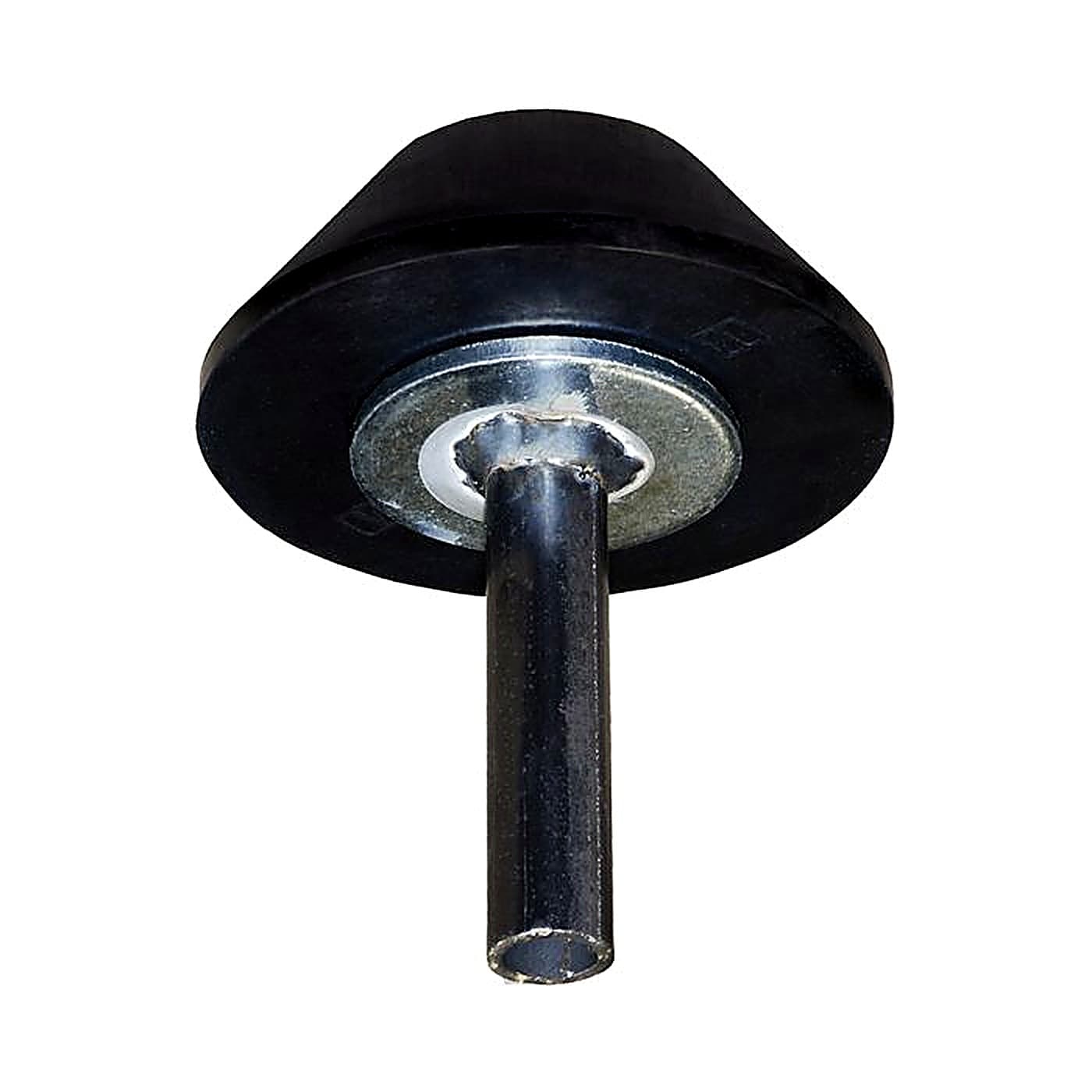

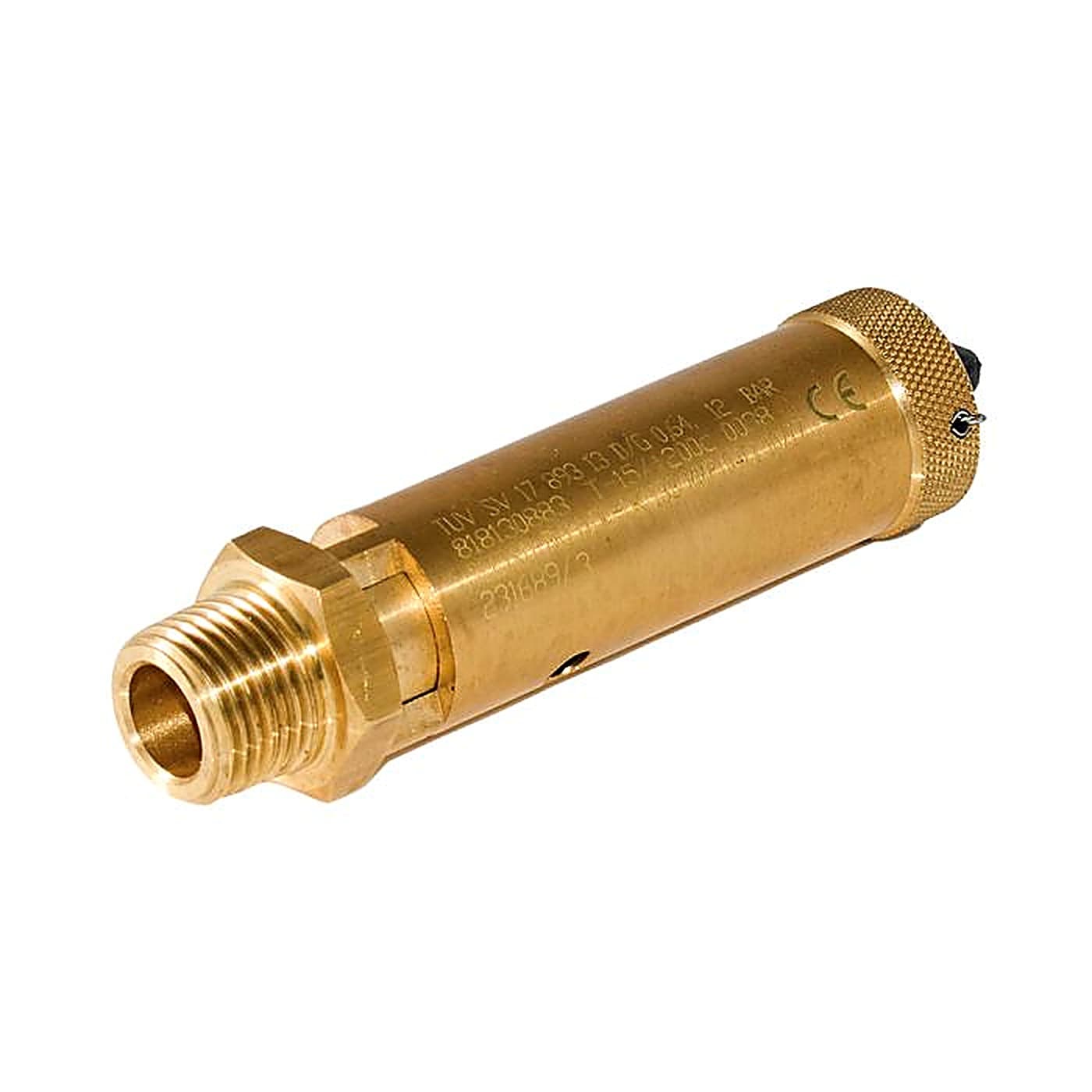

Certified 13mm Pressure Relief Valve Elcometer Internal Pop Up Valve Screen Sieve & Blast Machine Cover Lid Access Door & Assembly

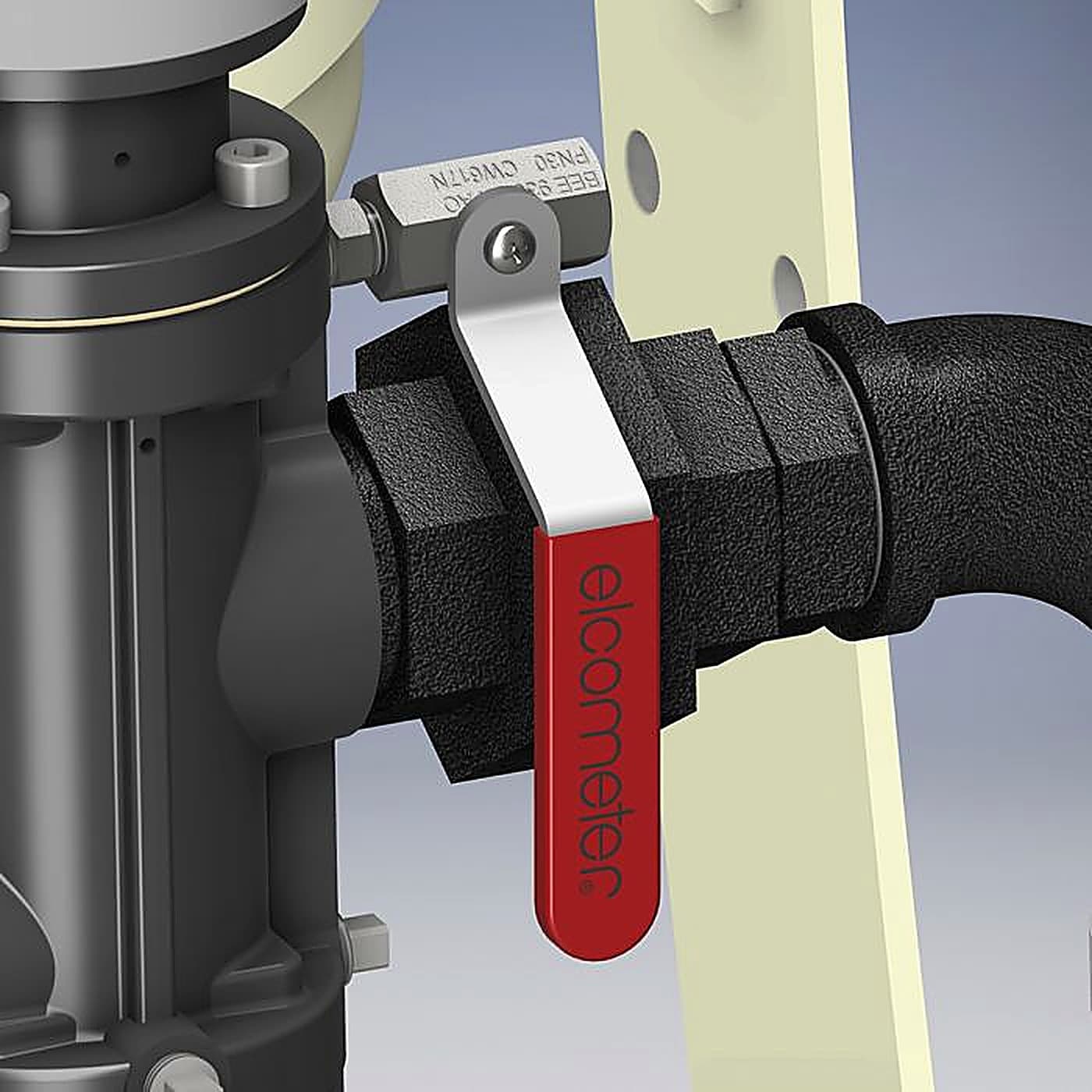

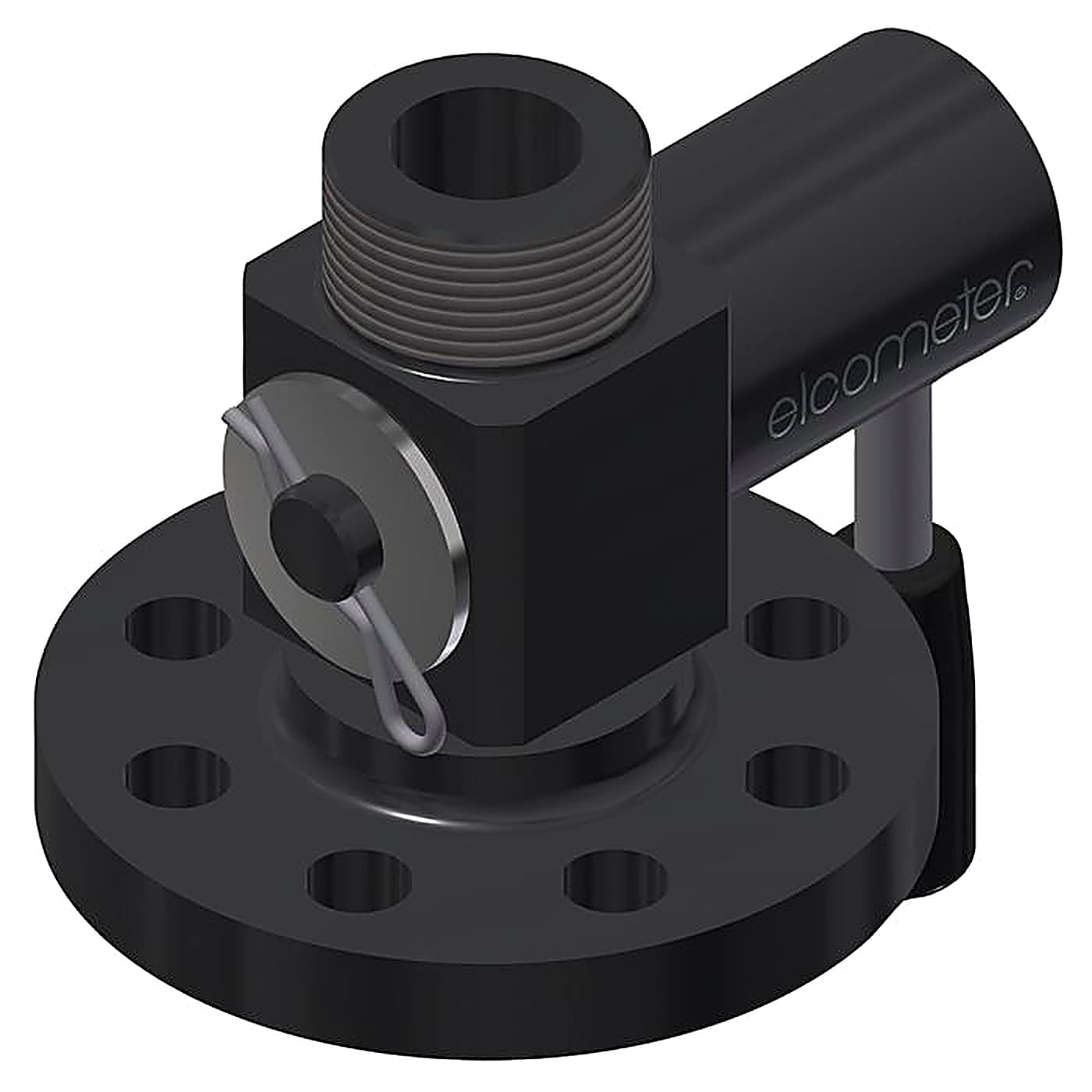

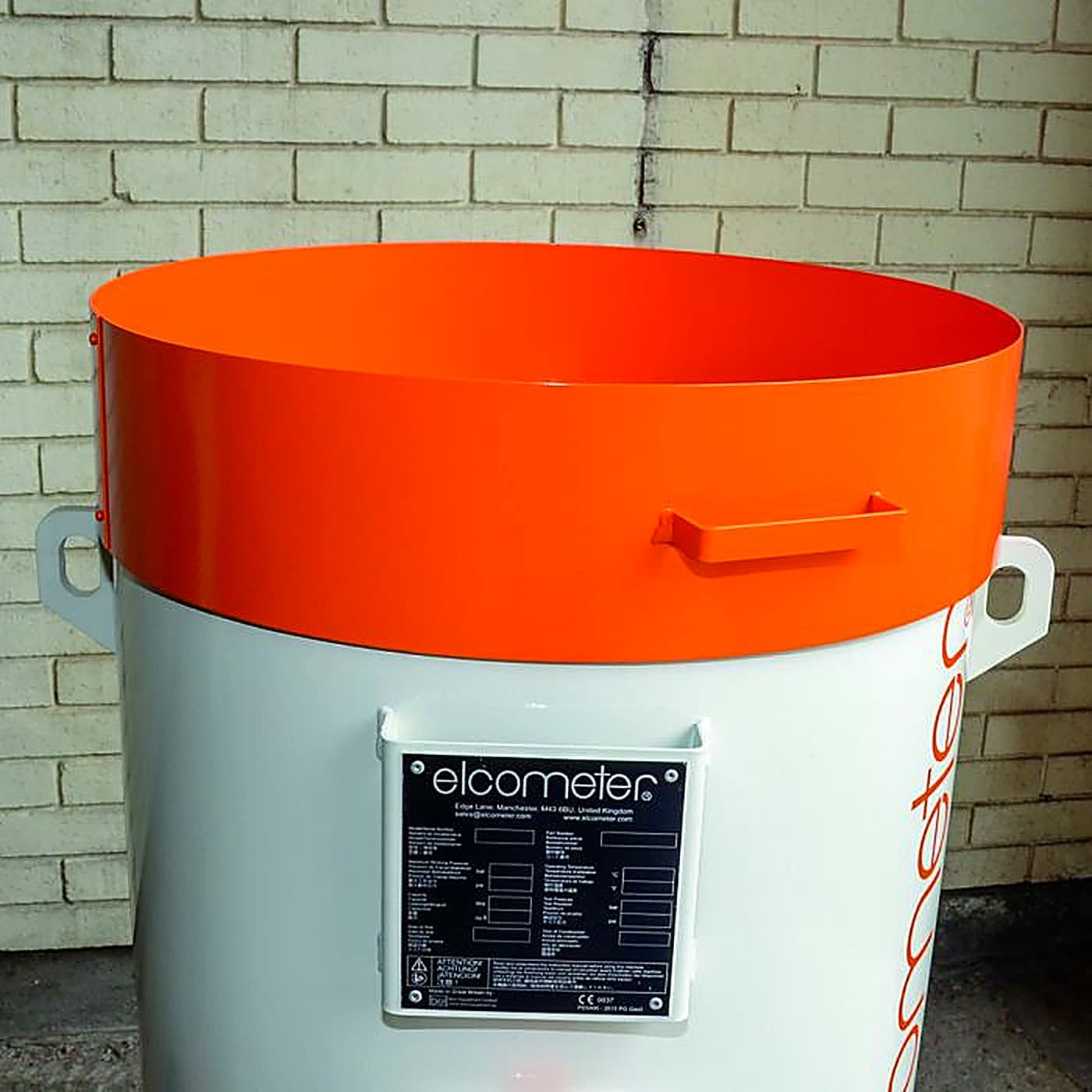

Screen Sieve Elcometer Manual Media Shut Off Elcometer Safety Petcock 6mm HP Ball Valve Blast Machine Cover Lid
Elcometer 38mm Moisture Separator Elcometer ABM Pot Coupling Earthing Wire Assembly Protection Skid
