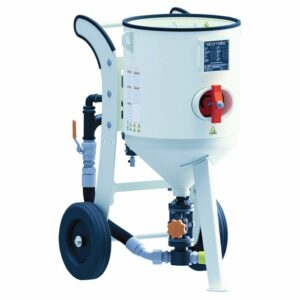

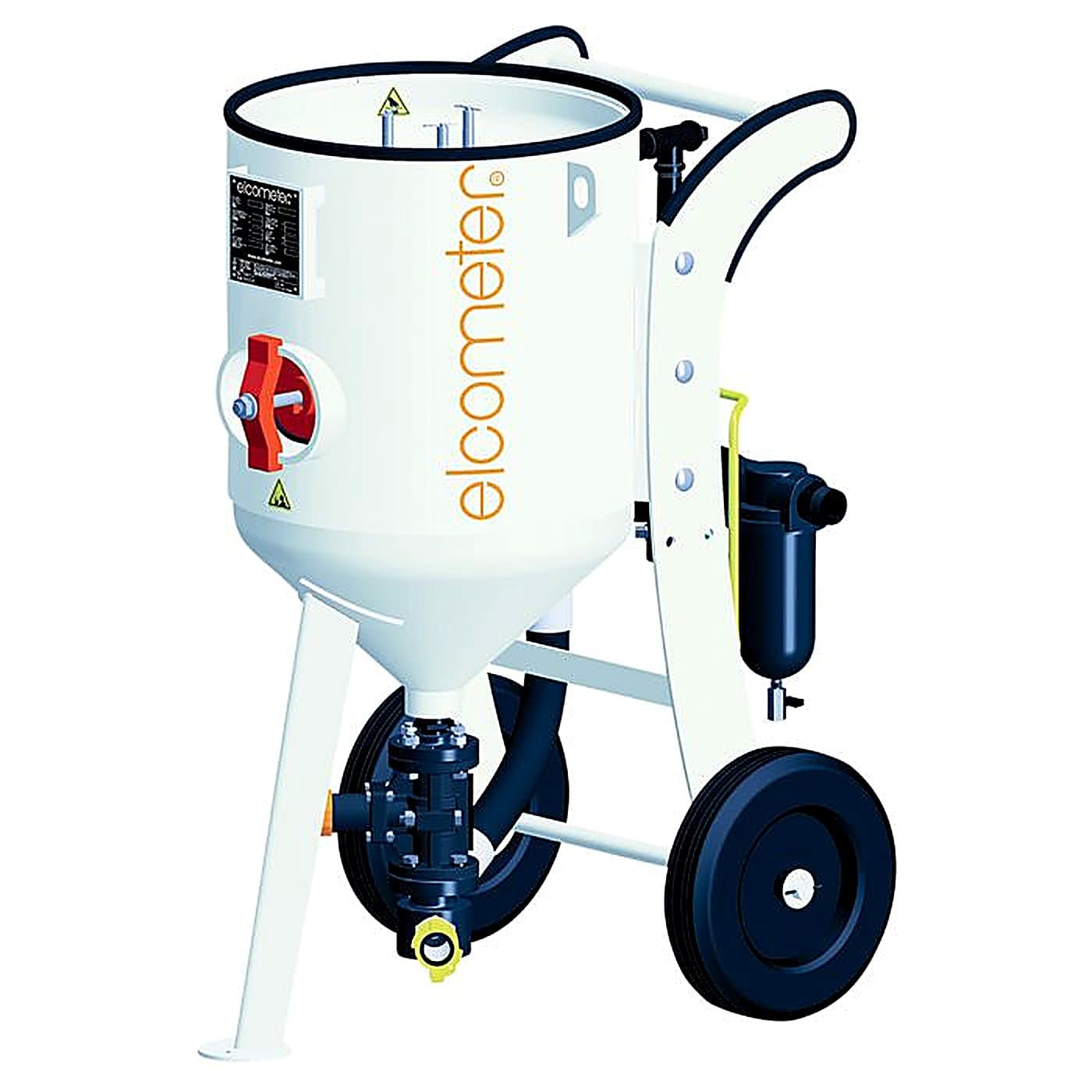

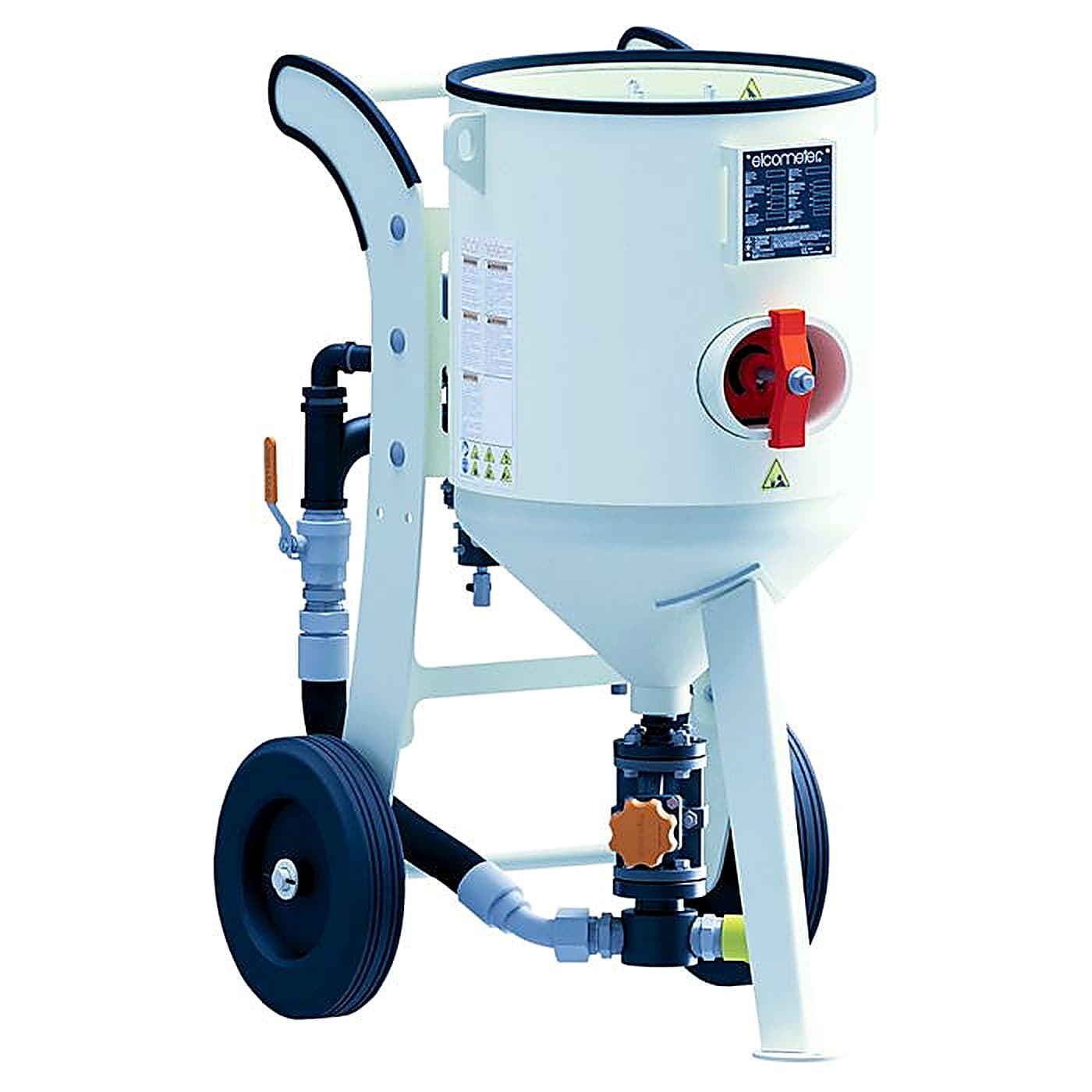

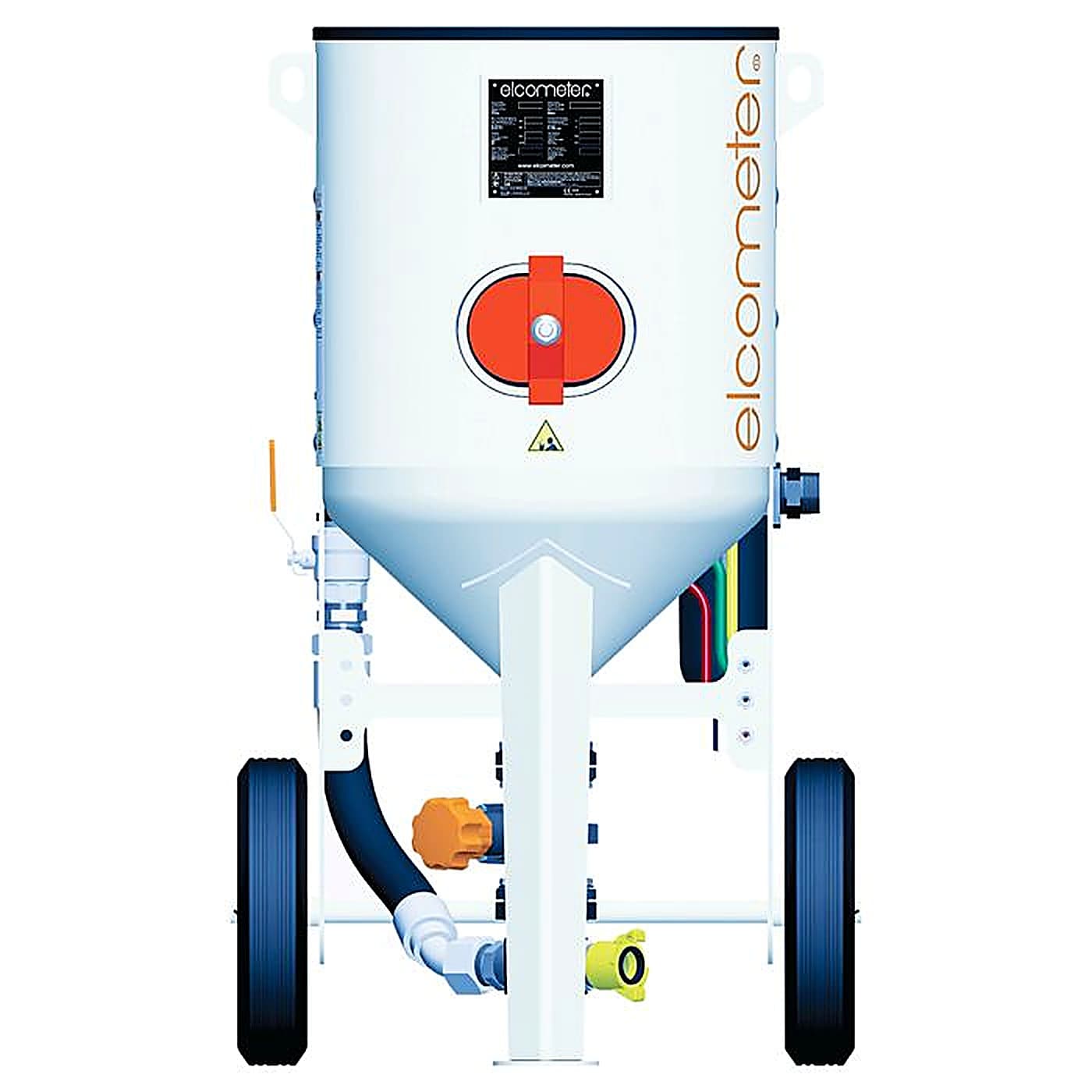

Elcometer 20100 Portable Abrasive Blast Machine 100 litre – 12bar

Product Description

The Elcometer 20100 Abrasive Blast Machine is ideal for mobile contractors requiring continuous high production blasting.

  • Ideal for continuous sandblasting applications
  • Heavy duty wheels for movement within blast yards and sites
  • Available with a range of grit valves to suit your application
  • Heavy duty 6mm construction
  • Easy and quick to service



Enhance Your Performance

The Elcometer 20100 Performance Blast Machine is engineered to work harder, last longer and be faster to maintain. For more information on the efficiency of Elcometer Performance blast pots and how they maximise up time.

Safe & Reliable

Rugged, reliable and easy to use, the Elcometer 20100 Portable Abrasive Blast Machine & Valves are supplied with a full 12 month warranty and are engineered & tested to be incredibly efficient, durable and safe. For more information on the Elcometer 20100 Portable Abrasive Blast Machines’ safety features.

Elcometer Engineered

The Elcometer 20100 Portable Abrasive Blast Machine is manufactured to an industry leading specification and designed and engineered by Elcometer experts. For more information about the high quality components of the Elcometer 20100 Portable Abrasive Blast Machine, including the high flow pipework, precision metering valves and hardwearing mixer T’s.

Product Range

Elcometer 20100 Portable Abrasive Blast Machine Kit 1 with Automatic General Valve – 12bar

Kit includes:
  • 508mm, 100 litre Abrasive Blast Machine
  • Pressure Test Certificate
  • RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
  • 20m Pneumatic Control Hose and Deadman’s Handle (DMHII)
  • Choke Valve and Pusher Line
  • Automatic General Valve with Mixer T and Metal Pot Coupling
  • Moisture Separator



PED
  • Maximum Working Pressure :12bar
  • Valve Type :AGV
  • Part Number :M20100-AGV1-B



ASME
  • Maximum Working Pressure :12bar
  • Valve Type :AGV
  • Part Number :M20100-AGV1-N



Elcometer 20100 Portable Abrasive Blast Machine Kit 1 with General Valve – 12bar

Kit includes:
  • 508mm, 100 litre Abrasive Blast Machine
  • Pressure Test Certificate
  • RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
  • 20m Pneumatic Control Hose and Deadman’s Handle (DMHII)
  • Choke Valve and Pusher Line
  • General Media Valve with Mixer T and Metal Pot Coupling
  • Moisture Separator



PED
  • Maximum Working Pressure :12bar
  • Valve Type :GV
  • Part Number :M20100-GV1-B



ASME
  • Maximum Working Pressure :12bar
  • Valve Type :GV
  • Part Number :M20100-GV1-N



Elcometer 20100 Portable Abrasive Blast Machine Kit 2 with Automatic General Valve – 12bar

Kit includes:
  • 508mm, 100 litre Abrasive Blast Machine
  • Pressure Test Certificate
  • RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
  • 20m Pneumatic Control Hose and Deadman’s Handle (DMHII)
  • Choke Valve and Pusher Line
  • Automatic General Valve with Mixer T and Metal Pot Coupling
  • Moisture Separator
  • 20m, 32mm ID Blast Hose with Cast Iron Hose Couplings & Nylon Nozzle Holder
  • Externally Mounted Sieve and Lid



PED
  • Maximum Working Pressure :12bar
  • Valve Type :AGV
  • Part Number :M20100-AGV2-B



ASME
  • Maximum Working Pressure :12bar
  • Valve Type :AGV
  • Part Number :M20100-AGV2-N



Elcometer 20100 Portable Abrasive Blast Machine Kit 2 with General Valve – 12bar

Kit includes:
  • 508mm, 100 litre Abrasive Blast Machine
  • Pressure Test Certificate
  • RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
  • 20m Pneumatic Control Hose and Deadman’s Handle (DMHII)
  • Choke Valve and Pusher Line
  • General Media Valve with Mixer T and Metal Pot Coupling
  • Moisture Separator
  • 20m, 32mm ID Blast Hose with Cast Iron Hose Couplings & Nylon Nozzle Holder
  • Externally Mounted Sieve and Lid



PED
  • Maximum Working Pressure :12bar
  • Valve Type :GV
  • Part Number :M20100-GV2-B



ASME
  • Maximum Working Pressure :12bar
  • Valve Type :GV
  • Part Number :M20100-GV2-N

Spare Parts

PED

Elcometer 20100 Portable Abrasive Blast Machine Spare Parts



Elcometer 20100 Portable Abrasive Blast Machine Spare Parts
ItemPart NumberDescription
1MT28622Pop Up Valve
2MT28631-425mm Pop Up Shaft for Elcometer 20100 (122mm)
3MT2966125mm Female 90° Equal Elbow
4MT2966338mm Hex Nipple
5MT28617Moisture Separator Assembly
6MT2966238mm Male/Male Union Taper Seat
7MT296646mm Bulkhead Connector (x3)
8MT29716Elcometer 20100 Twin Airline Hose Assembly (Yellow & Green)
9MT29717Airline Assembly for Elcometer 20100 (Red)
10MT28627-5Pop Up Valve O-Ring (x5)
11MT29601Protective Edging Strip Kit (2.7m)
12MT29667Spring Cotter Pin Type E (x3)
13MT29719Short Deflector Plate Spacer – 25mm (x3)
14MT29720Long Deflector Plate Spacer – 51mm (x3)
15MT29670Deflector Plate
16MT28629-3Deflector Plate Shaft – 82mm (x3)
17MT2967225mm Backnut (Recessed)
18MT2967325mm Female/Female Union Taper Seat
19MT2967925mm Hex Nipple
20MT2968025mm Exhaust T Assembly (complete with MT29681 Exhaust Plug)
21MT2968125mm Exhaust Plug
22MT2971825mm Pipe for Elcometer 20100 (118mm)
23MT2968325mm Socket
24MT2970425mm Male/Female Equal Union Taper Seat
25MT2968225mm Pipe for Elcometer 20100 (98mm)
26MT2970625mm Male/Female 90° Elbow
27MT2970725 x 38mm Reducing Bush (1″ to 11⁄2“)
28MT2859919mm Reinforced Union Elbow
29MT2968819mm Hex Nipple
30MT29465Elcometer RCV4000+ Remote Control Valve
31MT29656Petcock Valve Assembly – (Red Handle)
32MT30122-538mm Male/Female Equal Union Taper Seat
33MT2970838mm Equal Pitcher T
34MT3009438mm Choke Valve Handle
35MT2917738mm Choke Valve Assembly (include MT30094 Choke Valve Handle)
36MT2971038mm 60° Cone Male/Male Adaptor
37MT296586mm Ball Valve Assembly – (Black Handle)
38MT296606mm Airline Ball Valve Assembly (Black Handle)
39MT28597Exhaust Silencer Assembly
40MT29692-3Protection Guard for Elcometer 20100
41MT28616Elcometer Inspection Hatch Door for Elcometer 20100
42MT28613ElcoFit™ Door Sealing Gasket
43MT29695Elcometer Inspection Door Hatch Bolt – M16 x 110mm
44MT28615Inspection Hatch Door Yoke
45MT29696M16 Hexagon Flanged Nut
46MT28637Ø350mm Diameter Wheel (x1)
47MT29697Flat Washer (x8)
48MT29698Split Cotter Pin (x4)
–MT29490-4Elcometer RCV4000+ & Pipework Assembly Service Kit (contains items in orange)
–MT29180Elcometer Safety Label Kit



ASME

Elcometer 20100 Portable Abrasive Blast Machine Spare Parts
ItemPart NumberDescription
1MT28622Pop Up Valve
2MT28631-4N25mm Pop Up Shaft for Elcometer 20100
3MT29661N25mm Female 90° Equal Elbow
4MT31013-3N38mm Hex Nipple
5MT28617NMoisture Separator Assembly
6MT30553-1N38mm Close Nipple
7MT31018-5N38mm Union Brass Seat
8MT29664N6mm Bulkhead Connector (x3)
9MT29716NElcometer 20100 Twin Airline Hose Assembly (Yellow & Green)
10MT29717NAirline Assembly for Elcometer 20100 (Red)
11MT28627-5Pop Up Valve O-Ring (x5)
12MT29601Protective Edging Strip Kit (2.7m)
13MT29667Spring Cotter Pin Type E (x3)
14MT29719Short Deflector Plate Spacer – 25mm (x3)
15MT29720Long Deflector Plate Spacer – 51mm (x3)
16MT29670Deflector Plate
17MT28629-3Deflector Plate Shaft – 82mm (x3)
18MT29672N25mm Backnut
19MT31018-3N25mm Union Brass Seat
20MT31013-2N25mm Hex Nipple
21MT30574-2N25mm Equal T
22MT29681N25mm Solid Plug
23MT30556-4N25mm SCH 40 Pipe Tube
24MT31017N25mm Machine Socket
25MT30556-5N25mm Pipe
26MT31019-2N25mm 90° Street Elbow
27MT30577-3N25mm to 38mm Reducing Bush
28MT31013-1N19mm Hex Nipple
29MT28599N19mm Union Elbow Male
30MT29465NElcometer RCV4000+ Remote Control Valve
31MT29656NPetcock Valve Assembly – (Red Handle)
32MT30556-2N38mm Pipe
33MT29708N38mm Equal Pitcher T
34MT30094N38mm Choke Valve Handle
35MT29177N38mm Choke Valve Assembly (include MT30094N Choke Valve Handle)
36MT29710N38mm NPTF Male x 7/8 JIC Male Adaptor
37MT29658N6mm Ball Valve Assembly – (Black Handle)
38MT29660N6mm Airline Ball Valve Assembly (Black Handle)
39MT28597NExhaust Silencer Assembly
40MT29692-3Protection Guard for Elcometer 20100
41MT28616Elcometer Inspection Hatch Door for Elcometer 20100
42MT28613ElcoFit™ Door Sealing Gasket
43MT29695NElcometer Inspection Door Hatch Bolt – M16 x 110mm
44MT28615Inspection Hatch Door Yoke
45MT29696NM16 Hexagon Flanged Nut
46MT28637Ø 350mm Diameter Wheel (x1)
47MT29697Flat Washer (x8)
48MT29698Split Cotter Pin (x4)
–MT29490-4NElcometer RCV4000+ & Pipework Assembly Service Kit (contains items in orange)
–MT29180Elcometer Safety Label Kit

Technical Specifications

Elcometer 20100 Abrasive Blast Machine – 12bar
Capacity1
Volume100 Litres
Garnet Grit234kg
Steel Shot440kg
Pot Diameter:508mm
Height:1175mm
Width:704mm
Depth:865mm
Weight:153kg
Pipework Diameter:38mm
Maximum Working Pressure (WP)2:12bar
Operating Temperature Range:0 to 60oC

20100 Diagram



PED

Kit SelectionPart Numbers
Elcometer Blast Machines Kits are available with:

Portable

Kit 1                                            Kit 2

General Media Valve (G)General Valve Automatic General Valve (A)Automatic General Valve

M20100-GV1-B

M20100-AGV1-B

M20100-GV2-B

M20100-AGV2-B

508mm, 100 litre Abrasive Blast Machine

■

■

■

■

Pressure Test Certificate

■

■

■

■

RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer

■

■

■

■

20m Pneumatic Control Hose and Deadman’s Handle (DMHII)

■

■

■

■

Choke Valve and Pusher Line

■

■

■

■

Abrasive Metering Valve with Mixer T3 and Metal Pot Coupling

G

A

G

A

Moisture Separator

■

■

■

■

20m, 32mm ID Blast Hose with Cast Iron Hose Couplings and Nylon Nozzle Holder



■

■

Externally Mounted Sieve and Lid



■

■


1 Garnet & steel shot capacity figures based on typical media bulk density. Note that bulk density also varies according to media size and grade.

2 Do not operate this abrasive blast machine unless there is an appropriate safety pressure relief valve within the pressurised system as a whole.



ASME

Kit SelectionPart Numbers
Elcometer Blast Machines Kits are available with:

Portable

Kit 1                                            Kit 2

General Media Valve (G)General Valve Automatic General Valve (A)Automatic General Valve

M20100-GV1-N

M20100-AGV1-N

M20100-GV2-N

M20100-AGV2-N

508mm, 100 litre Abrasive Blast Machine

■

■

■

■

Pressure Test Certificate

■

■

■

■

RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer

■

■

■

■

20m Pneumatic Control Hose and Deadman’s Handle (DMHII)

■

■

■

■

Choke Valve and Pusher Line

■

■

■

■

Abrasive Metering Valve with Mixer T and Metal Pot Coupling

G

A

G

A

Moisture Separator

■

■

■

■

20m, 25mm ID Blast Hose with Cast Iron Hose Couplings and Nylon Nozzle Holder



■

■

Externally Mounted Sieve and Lid



■

■


1 Garnet & steel shot capacity figures based on typical media bulk density. Note that bulk density also varies according to media size and grade.

2 Do not operate this abrasive blast machine unless there is an appropriate safety pressure relief valve within the pressurised system as a whole.



Accessories

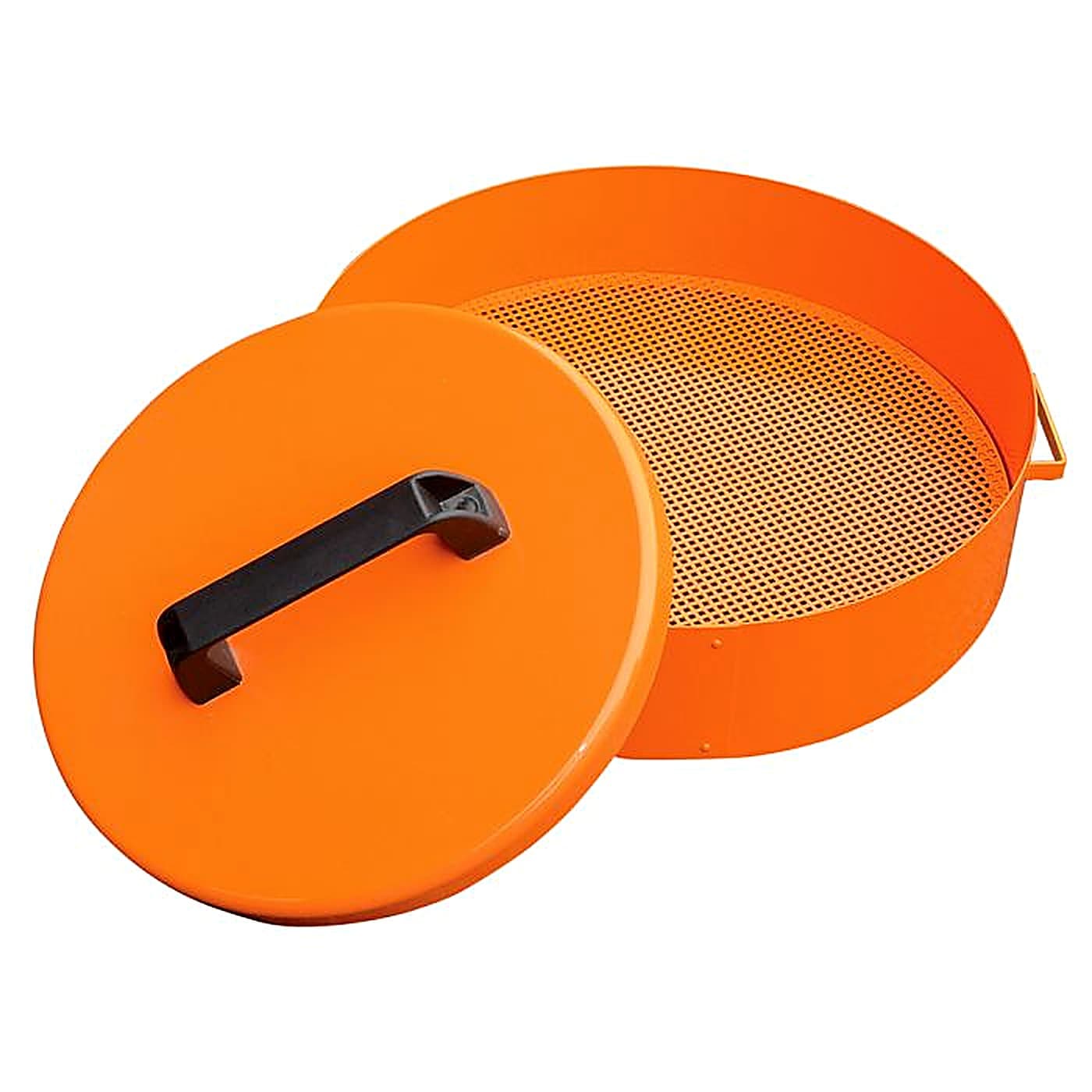

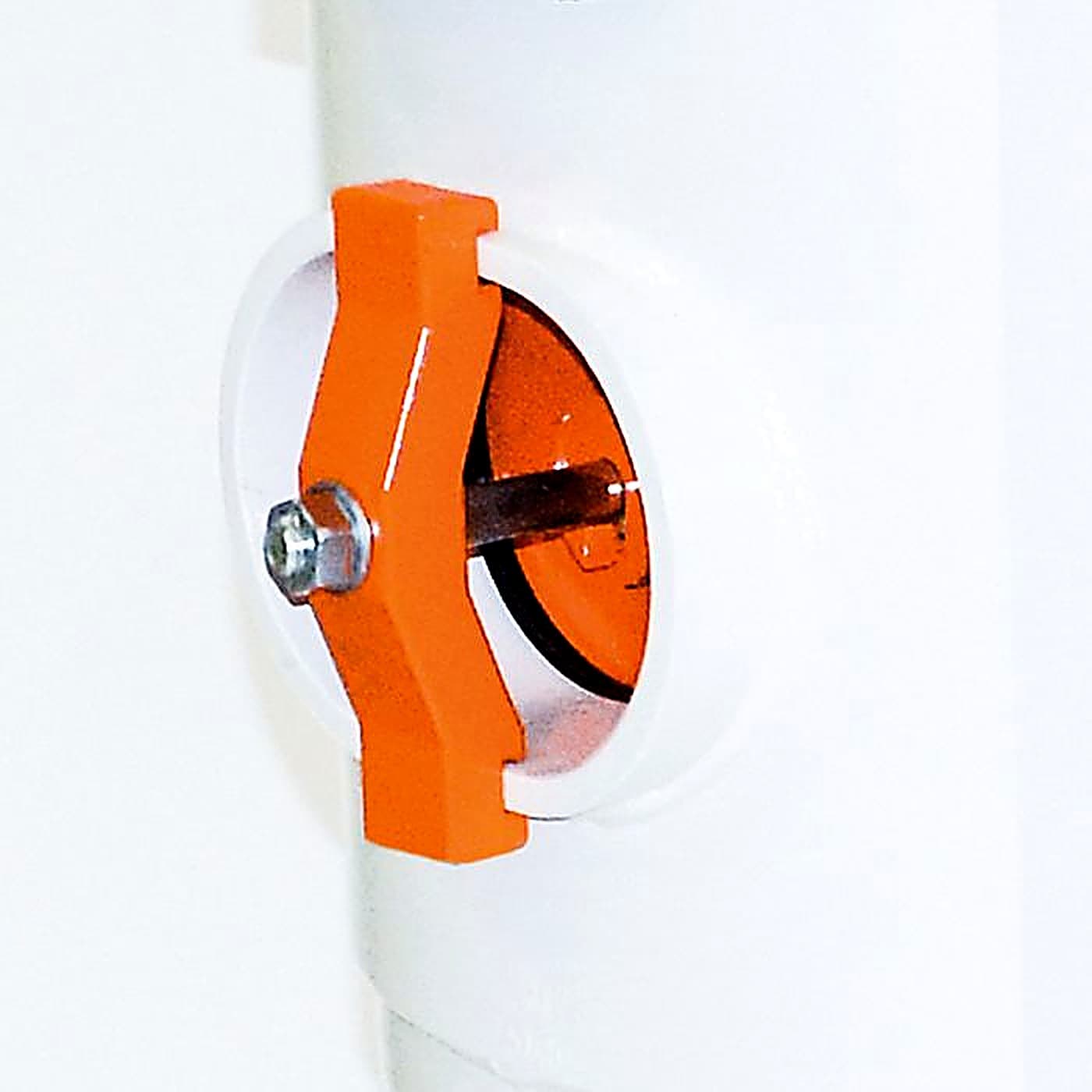

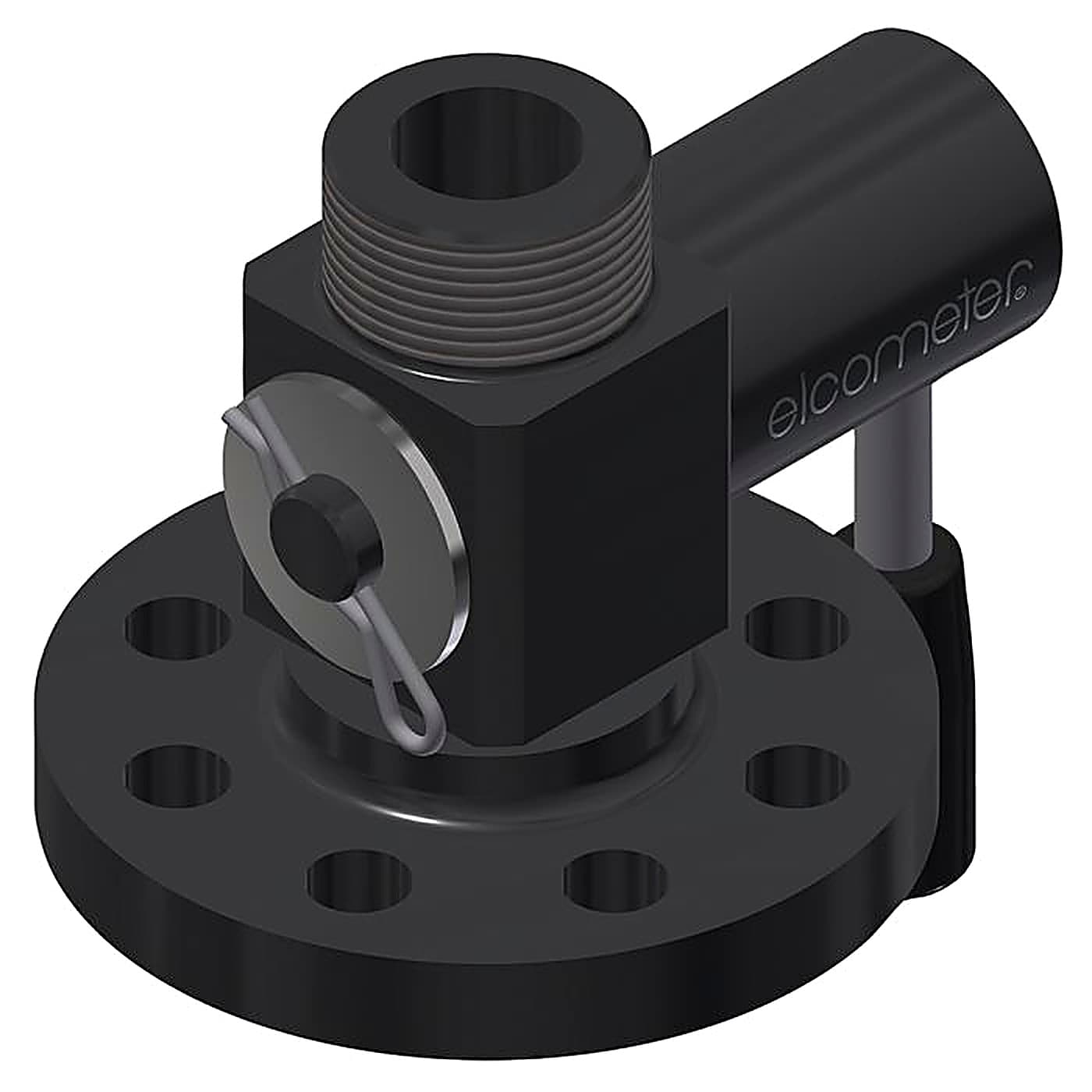

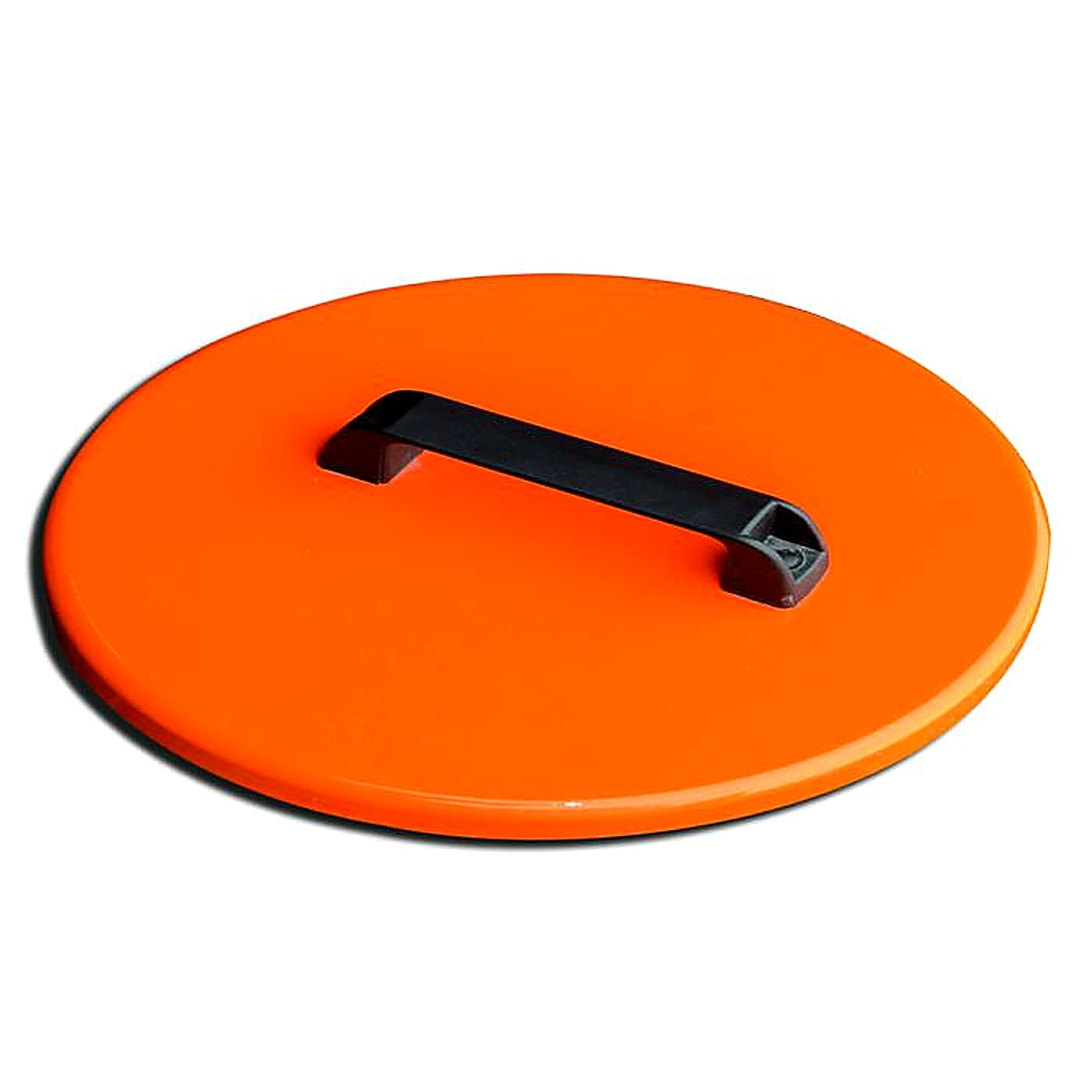

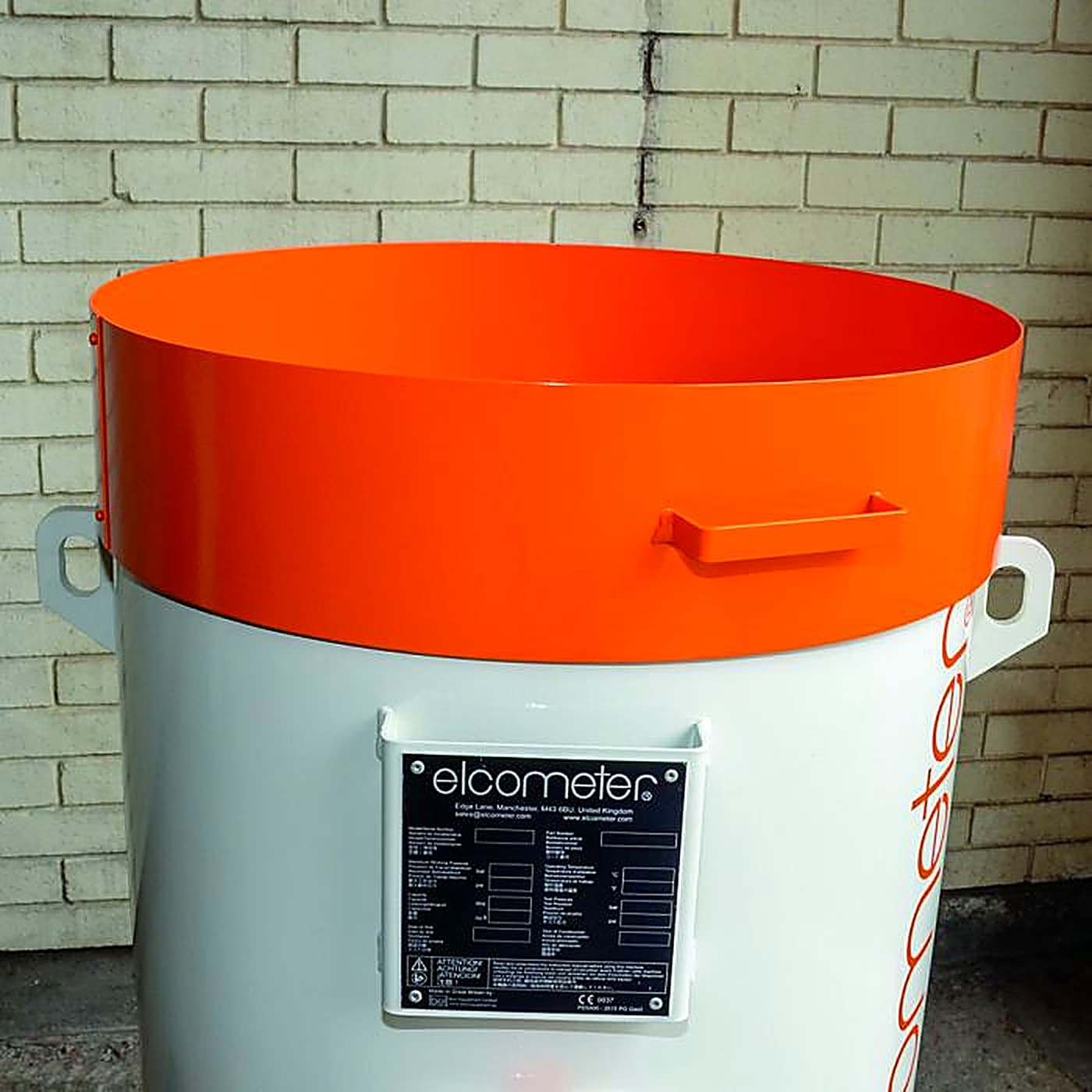

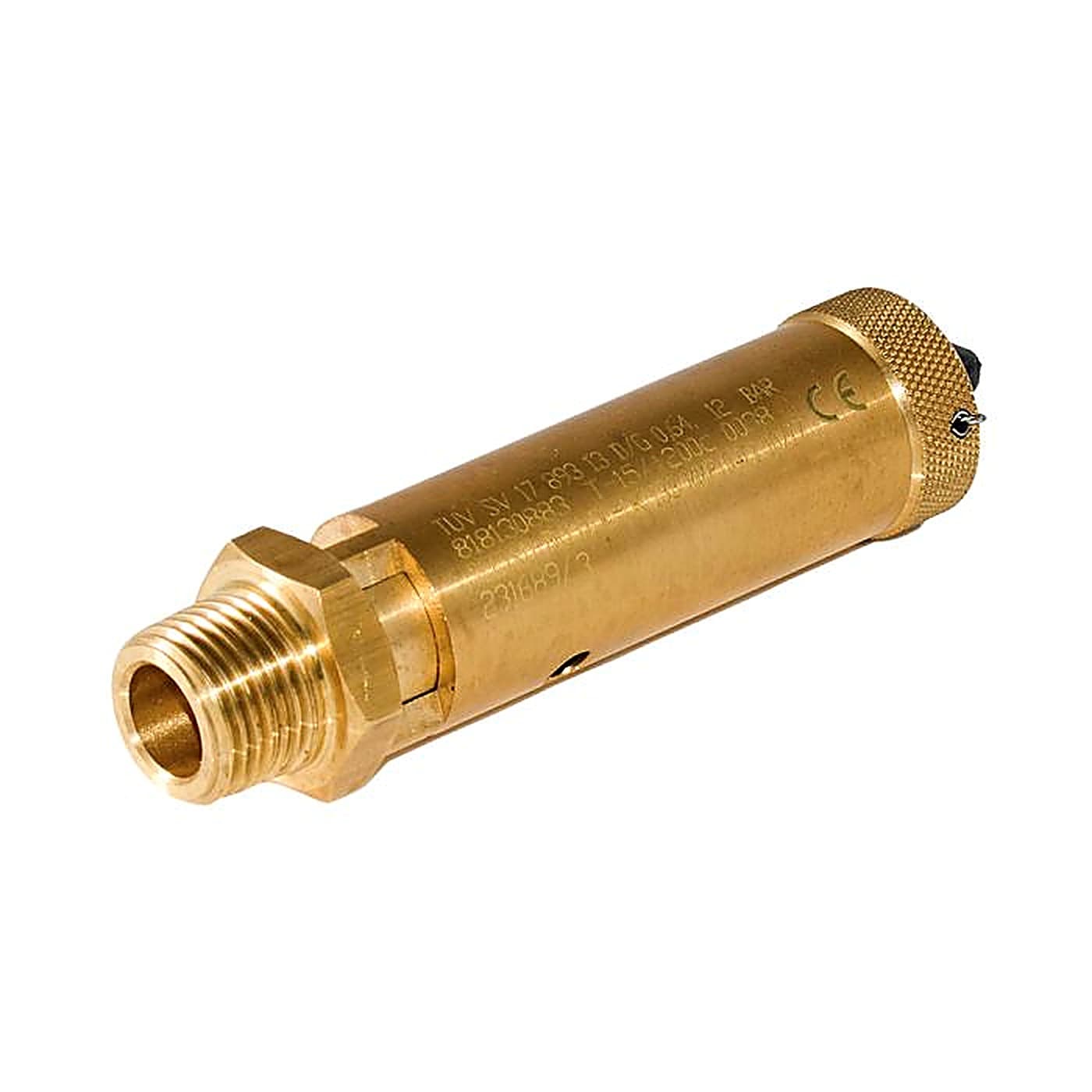

Certified 13mm Pressure Relief Valve      Elcometer Internal Pop Up Valve          Screen Sieve & Blast Machine Cover Lid              Access Door & Assembly

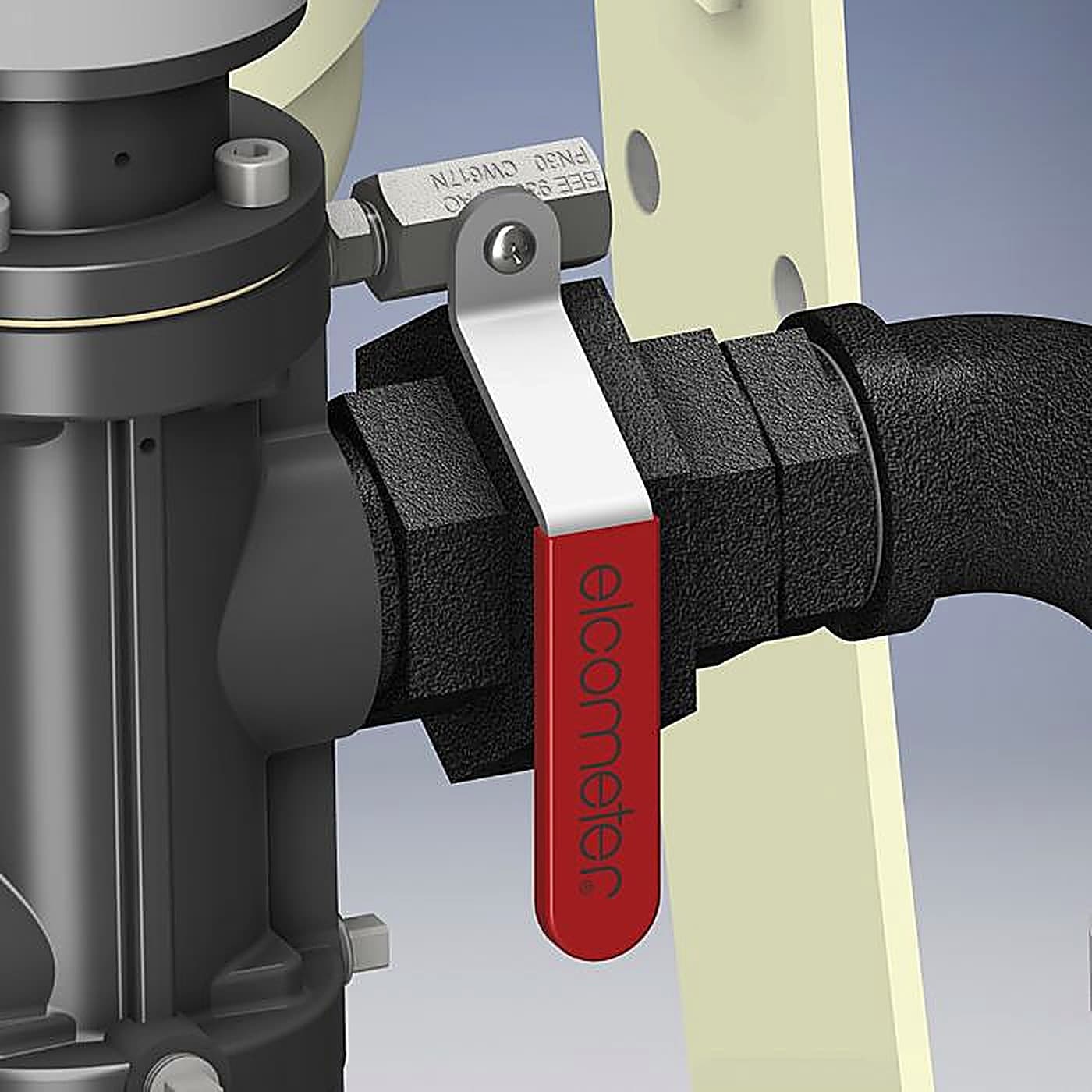

        Screen Sieve                               Elcometer Manual Media Shut Off        Elcometer Safety Petcock 6mm HP Ball Valve              Blast Machine Cover Lid

                                                                  Valve and Flange Assembly

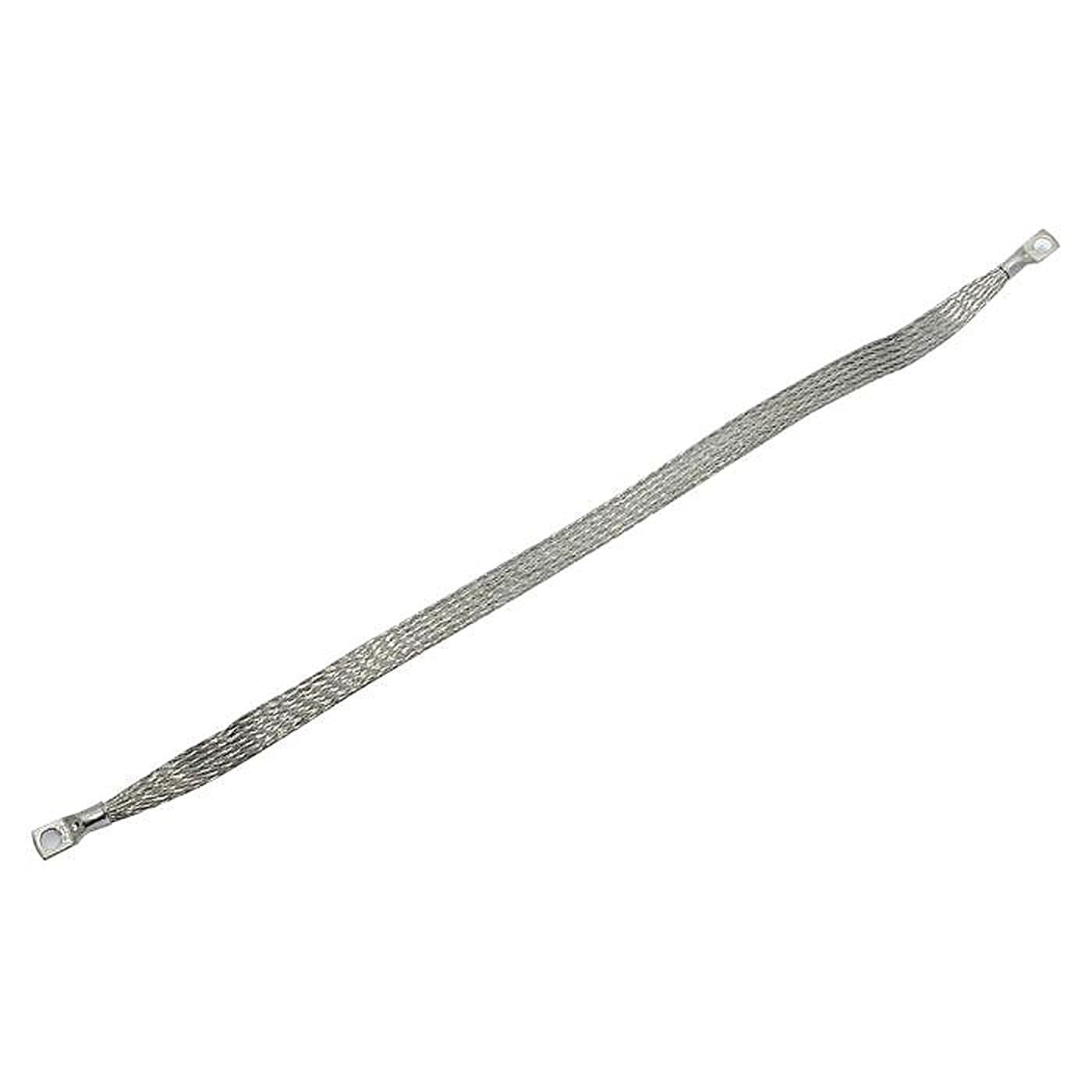

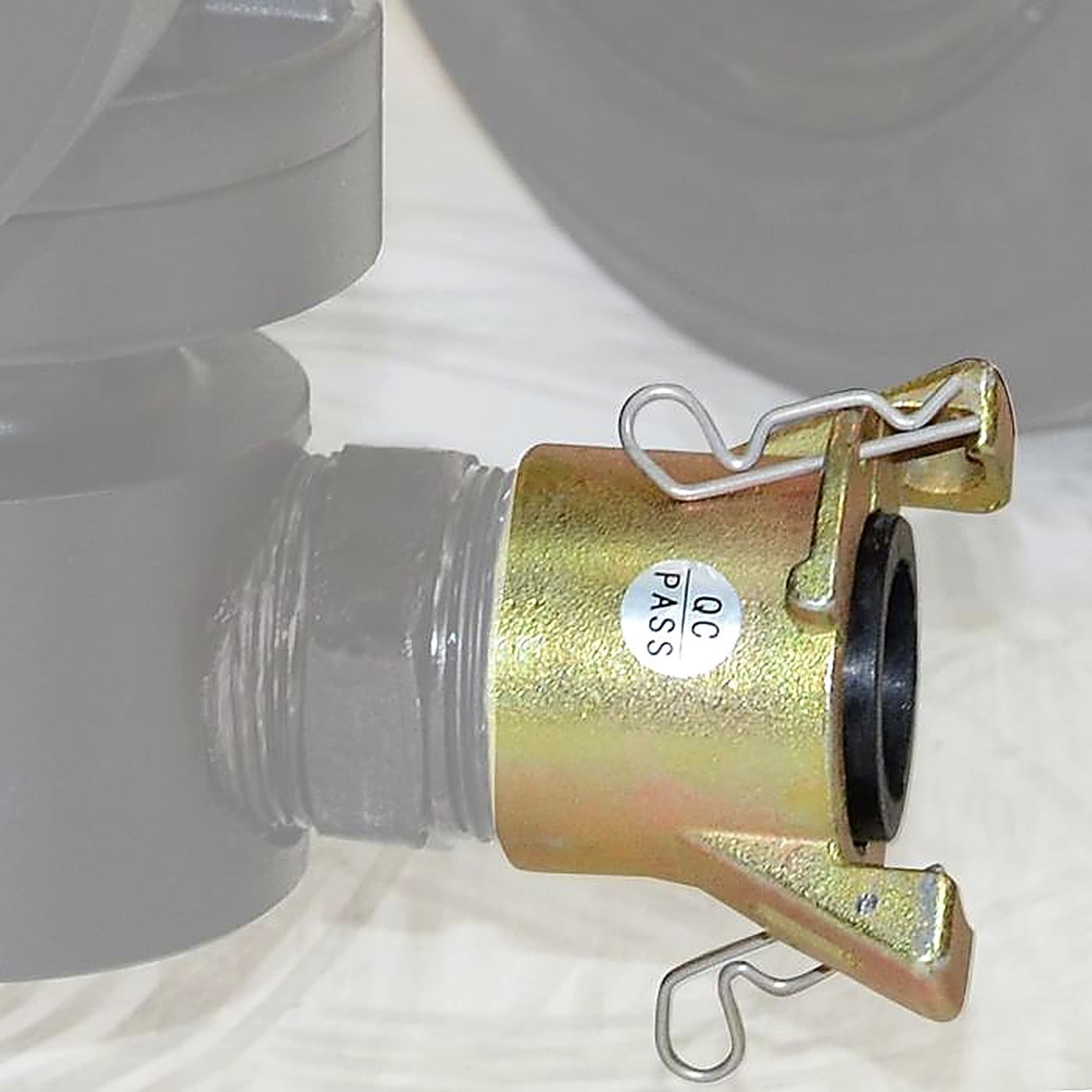

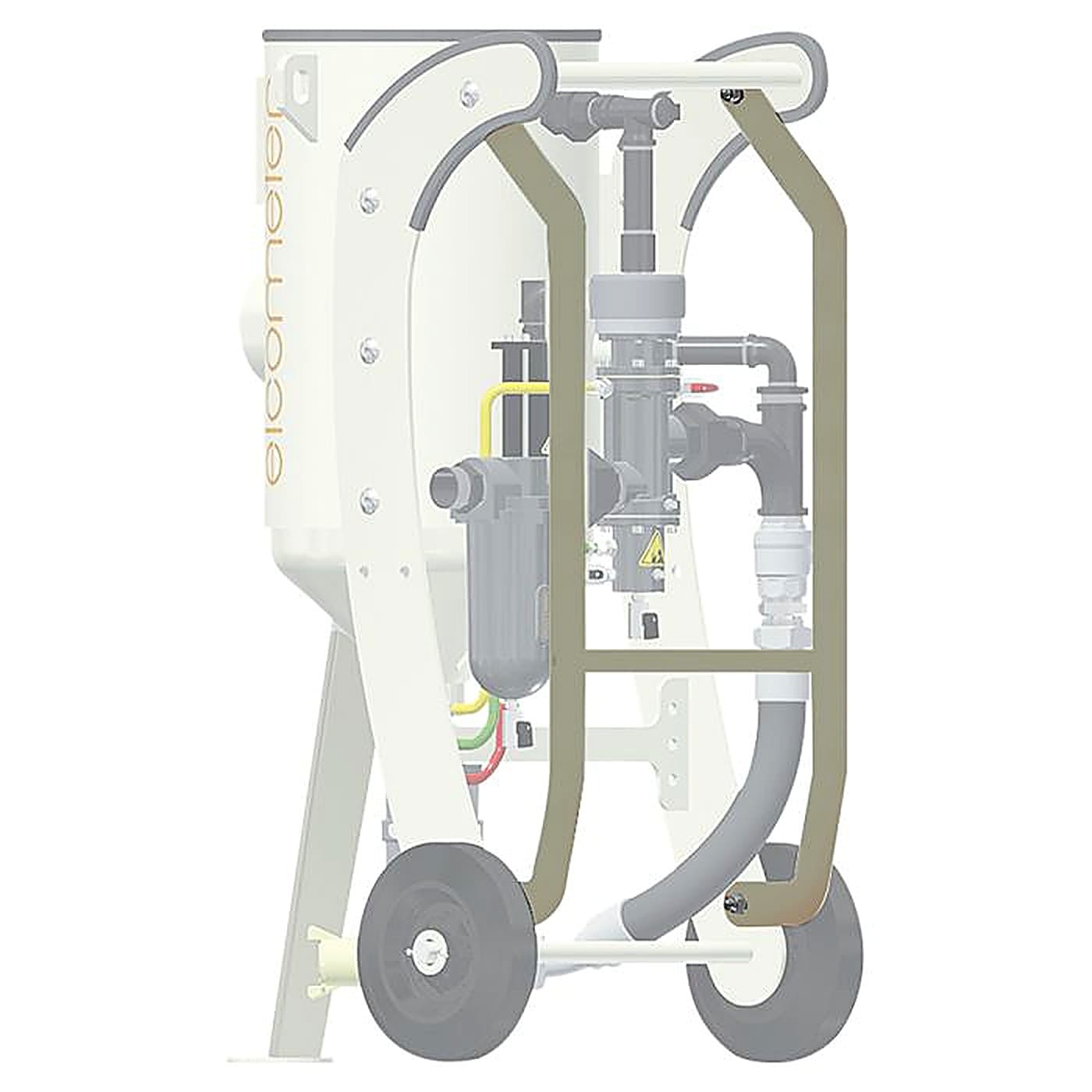

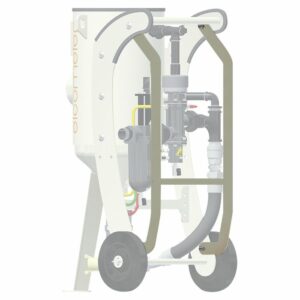

Elcometer 38mm Moisture Separator       Elcometer ABM Pot Coupling                         Earthing Wire Assembly                                    Protection Skid

Data Sheet

Elcometer 20100 Portable Abrasive Blast Machine 100 litre – 12bar  –  Data Sheet

Elcometer-20100-Portable-Abrasive-Blast-Machine-100-litre-12bar Data Sheet
