Infra Red Temperature

Home » Products » Climatic Condition Testing » Infra Red Temperature

Infra Red Temperature or Infrared Temperature Guns are used to check the surface temperature of a material without touching the surface, ie. it is a non contact temperature gauge.

Temperature affects the coating′s shelf life, viscosity and its application characteristics. Elcometer and BAMR offer a range of thermometers for accurate and fast temperature measurement of surfaces and liquids, which will ensure correct application of coatings.

The 8889 Infrared Temperature Gauge is probably our most popular unit, with its competitive pricing and ease of use. It has a range of -25 to 500°C with a distance to spot of 10:1 and comes complete with a calibration certificate. It is a small Mini Infrared Gun and has a very ergonomic design for ease of use.

The Elcometer 214 is a simple, easy-to-use, non-contact thermometer which safely and accurately measures surface temperature of non-reflective materials using infrared technology.

With a user switchable measuring range of -35°C to 365°C or -31°F to 689°F, a digital display of the temperature is produced in less than one second.

Non-contact technology with laser spot indicator
ºC / ºF user switchable
Fast, 1 second scanning of any surface
Can measure objects as small as 25mm (1”)
Distance-to-Target Ratio of 8:1
Easy to read LCD display

The Elcometer 214 IR Digital Laser Thermometer has a D/T ratio (Distance-to-Target) of 8:1 and measures the emitted energy from a target spot one-eighth the size of the working distance.

As can be seen in the diagram, if the distance from the sensor optics to the target is 200mm (8″) for example, the diameter of the measured area is 25mm (1″).

Infra Red Temperature 8889 Low Cost Digital Mini Gun Infra Red Thermometer

Infra Red Temperature Elcometer 214 Infrared Digital Thermometer (Laser pointer)

Infra Red Temperature / Infrared Temperature

8889 Low Cost Digital Mini Gun Infra Red Thermometer

Elcometer 214 Infrared Digital Thermometer (Laser pointer)

Please click on the appropriate image or on the heading for more information about each instrument.

27 Mar 2015

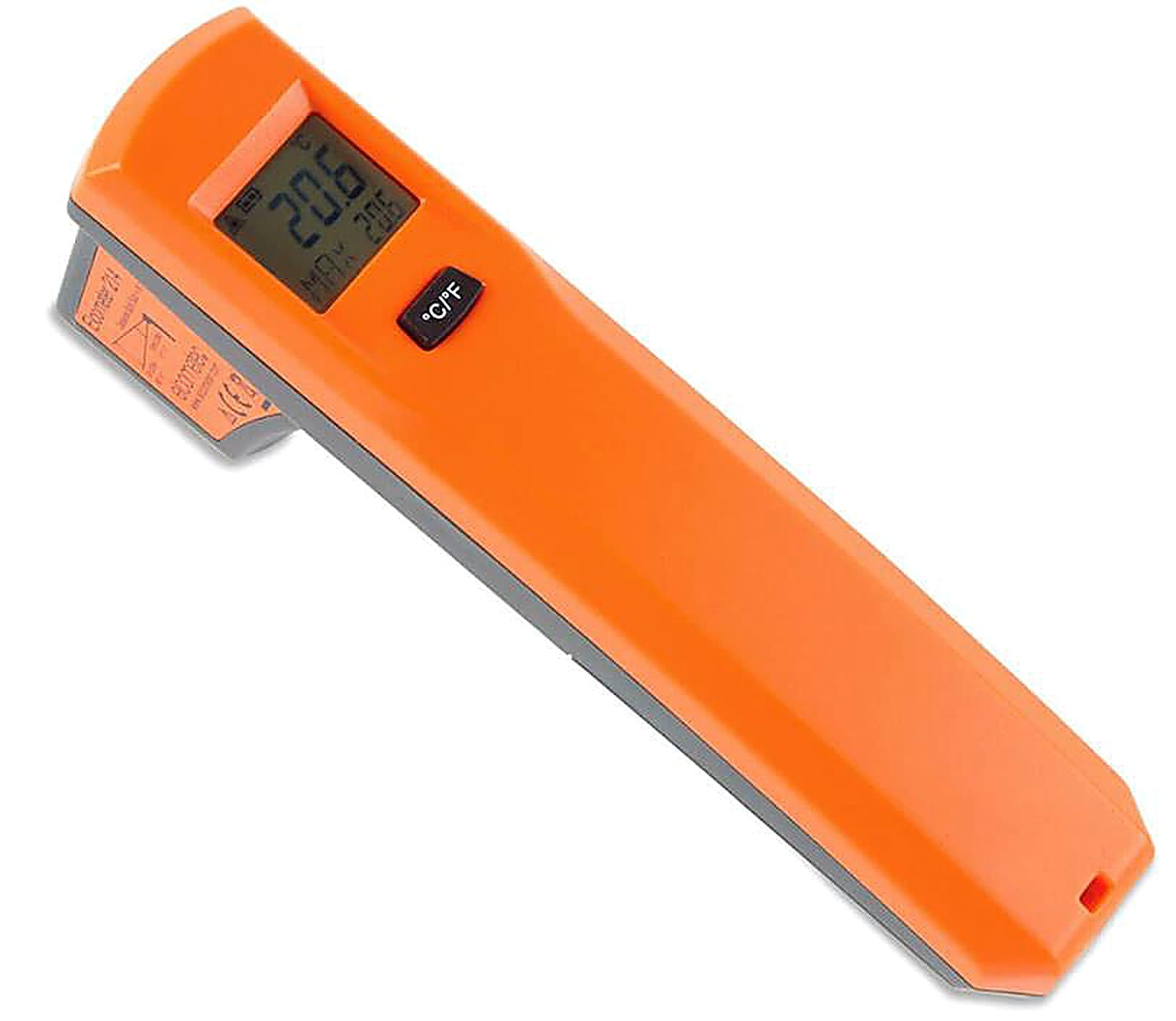

Elcometer 214 Infrared Digital Thermometer (Laser pointer)

by Graham Duk | posted in: Climatic Condition Testing, Coating Inspection, Infra Red Temperature, Products | 0

The Elcometer 214 is a simple, easy-to-use, non-contact thermometer which safely and accurately measures surface temperature of non-reflective materials using infrared technology. With a user switchable measuring range of -35°C to 365°C or -31°F to 689°F, a digital display of the temperature is produced in less than one second. Non-contact technology with laser spot indicator ºC / ºF user switchable Fast, 1 second scanning of any surface Measure objects as small as 25mm Distance-to-Target Ratio of 8:1 Easy to read … Read More

27 Mar 2015

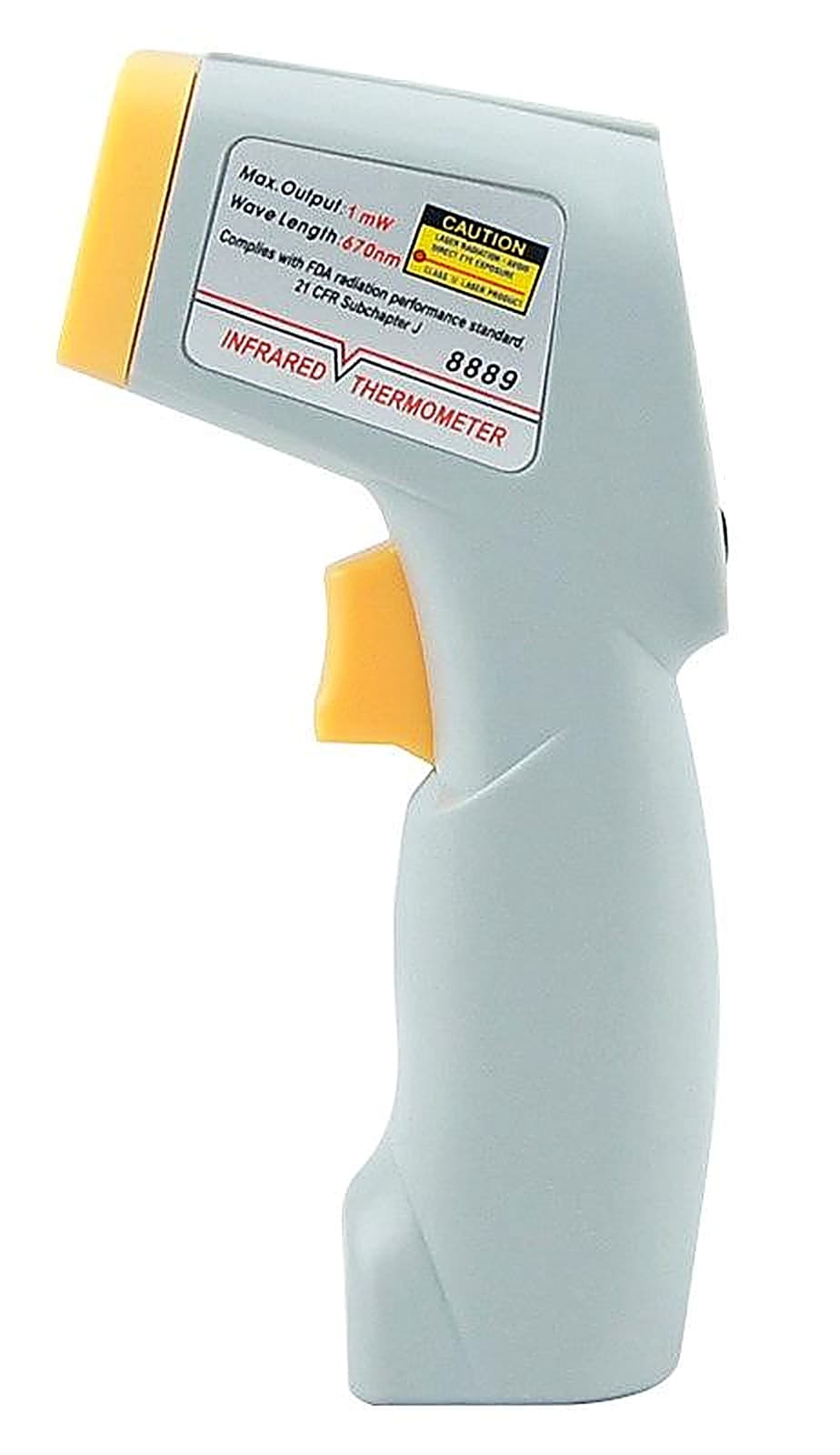

8889 Digital Mini Gun Infra Red Thermometer – SOLD OUT

by Graham Duk | posted in: Climatic Condition Testing, Coating Inspection, Infra Red Temperature, Products | 0

SOLD OUT – new stock arriving SOON! The 8889 Digital Mini Gun Infrared Thermometer, is compact in size and allows you to get into tight places while its convenient laser targeting and high distance to spot ratio (D:S) gives you accurate readings on distant targets. Features Popular Non-contact digital measurement with laser pointer with backlight Measurements of up to 500°C Built-in laser (670nm) ; complies with FDA class II Quick and accurate response rate of 500ms Simple one hand … Read More
