Concrete Hardness / Test Hammers are used to determine the surface hardness of concrete and are one of the most widely used instruments in the field of non destructive testing (NDT) of concrete compressive strength. It is the quickest, simplest and least expensive method to obtain an estimate of the quality and strength of the concrete.

Both mechanical and digital test hammers are available.

Mechanical Test Hammers

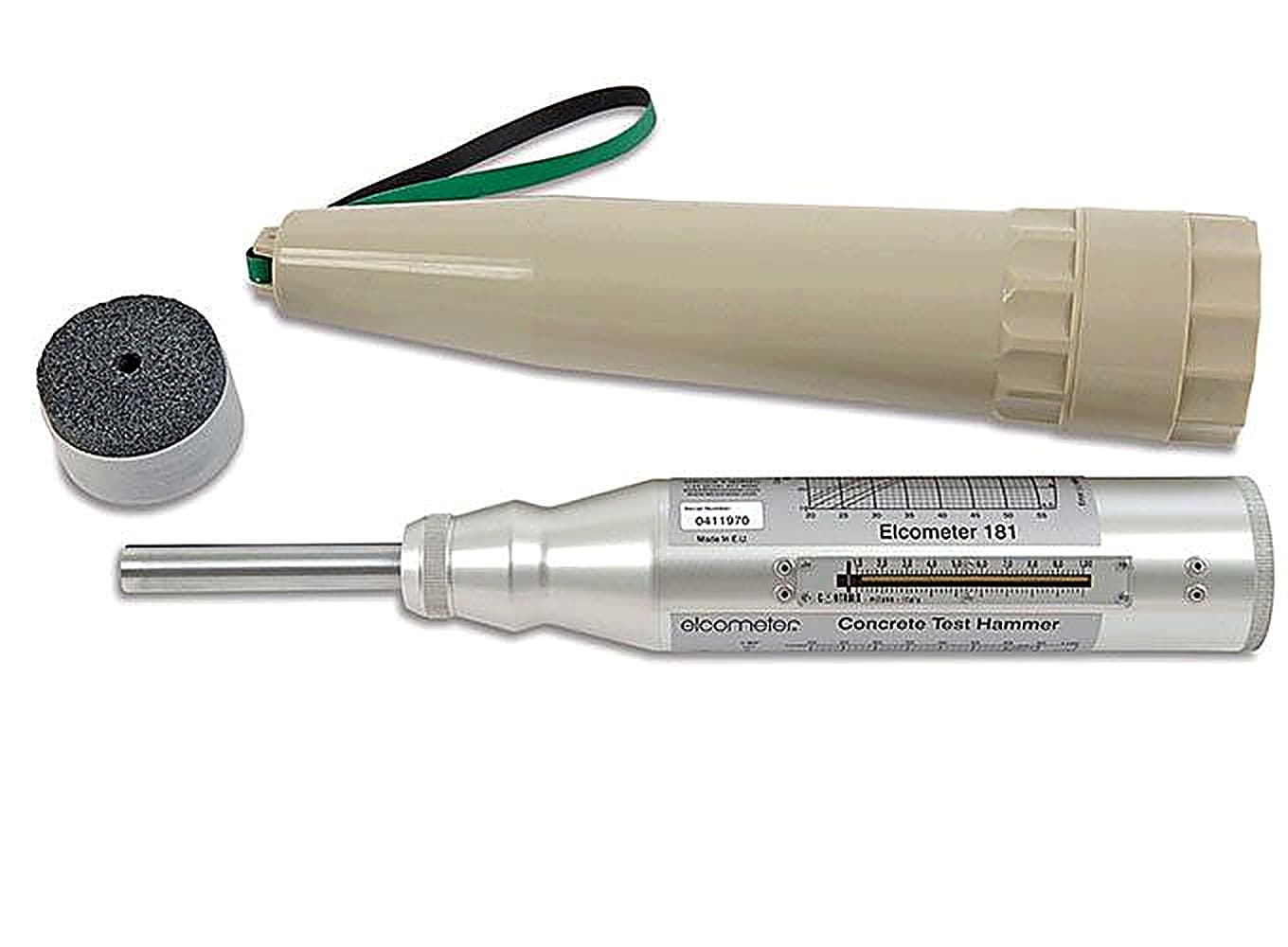

The Elcometer 181 Mechanical Concrete Test Hammer provides a quick, simple and inexpensive method for non-destructive evaluation of concrete and other masonry materials. Concrete Hardness / Test Hammers are one of the most widely used instruments in the field of non-destructive testing and Elcometer can offer you mechanical or digital models.

The HT 225A Concrete Test Hammer is designed specifically for the non-destructive testing of concrete structures. This method has considerable advantages over conventional methods of assessing the compressive strength of concrete in that large areas can be tested in a very short time at a very low cost. In addition it is possible to determine the variation in concrete quality between different sections of a structure with case. The HT 225A is comparable with the Schmidt Hammer, Type N, this method of testing is covered by DIN 1048 and BS1881 part 202. These standards refer to assessment of the rebound hardness of motar which is directly related to the compressive strengths of the material being tested.

Digital Test Hammers

The charts on the body of the Elcometer 181 correspond to the test hammer angle, average error, conversion scales, MPa and p.s.i. The Elcometer 182 Digital Concrete Test Hammer works in exactly the same way but the results are recorded digitally with the ability to set test parameters and factors including age, shape and correction factors.

Concrete Hardness Test Hammers Elcometer 181 Mechanical Concrete Test Hammer

Concrete Hardness / Test Hammers

HT 225A Concrete Compression Test Hammer / Concrete Hardness Tester (Schmidt equivalent)

Elcometer 181 Mechanical Concrete Test Hammer

Elcometer 182 Digital Concrete Test Hammer

Please click on the appropriate image or on the heading for more information about each instrument.

22 May 2015

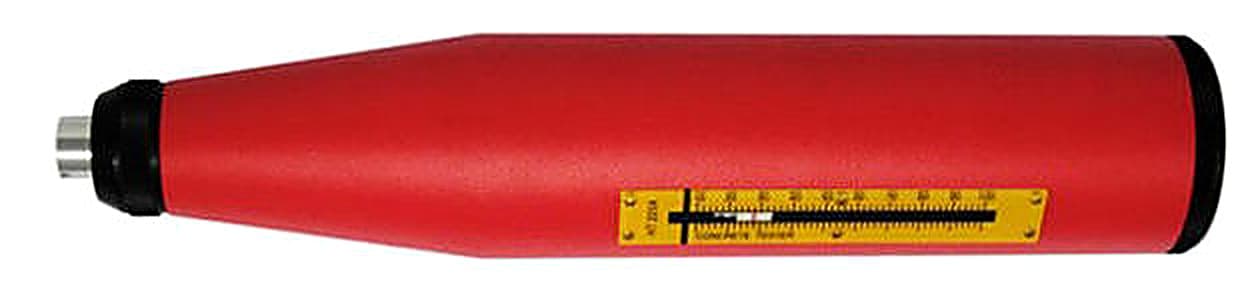

HT 225A Concrete Hardness Tester

by Graham Duk | posted in: Concrete Hardness / Test Hammers, Concrete Testing, Hardness - Concrete Testers, Hardness Testers, Measuring Instruments, Products | 0

The HT 225A Concrete Test Hammer is designed specifically for the non-destructive testing of concrete structures. This testing method has considerable advantages over conventional methods of assessing the compressive strength of concrete, in that large areas can be tested in a very short time, at a very low cost. In addition, it is possible to determine the variation in concrete quality between different sections of a structure with ease. The HT 225A is comparable with the Schmidt Hammer, Type N. … Read More

9 Apr 2015

Elcometer 181 Mechanical Concrete Test Hammer

by Graham Duk | posted in: Concrete Hardness / Test Hammers, Concrete Testing, Hardness - Concrete Testers, Hardness Testers, Measuring Instruments, Products | 0

The Elcometer 181 Mechanical Concrete Test Hammer provides a quick, simple and inexpensive method for non-destructive evaluation of concrete and other masonry materials. Concrete test hammers are one of the most widely used instruments in the field of non-destructive testing, and Elcometer can offer you mechanical or digital models.
