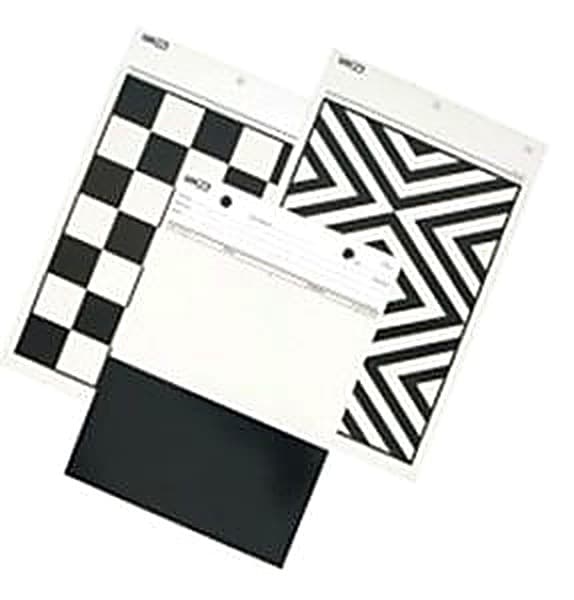

Elcometer supplies a wide range of Leneta Test Charts, from plain white to those having different patterns of black and white. Made from naturally bright, non-fluorescent white paper, these charts contain no optical brighteners that can affect instrumental color measurements.

Leneta Test Charts are the market standard in today’s coatings industry. Foil Card substrates of steel, aluminum, glass and plastic are also available. Leneta Test Charts are available in boxes & cases.

Charts can be used with the Elcometer 4340 Motorised Film Applicator

Spray Monitors – Self Adhesive Hiding Power

The Elcometer 4695 Spray Monitors are pressure sensitive labels with a hiding power test pattern and a sealed, solvent-resistant surface.

They are used primarily with metal panels on which the panel alone provides no visual clue as to the thickness of the applied paint film.

When placed on such a surface the Monitor presents a contrasting feature by which to observe how well the coating hides the surface, thereby facilitating film thickness control. It adheres firmly whether air-dried or baked, to present a permanent visual record of film opacity.

The Elcometer 4695 Leneta Test Charts can be used in accordance with:

• AS/NZS 1580.213.1
• ASTM D 344
• ASTM D2805
• ASTM D 2486
• ASTM D 5150
• ASTM D 6441
• BS 3900-D4*
• DIN 53162-2
• FTMS 141 4121
• ISO 2814

* Standards not in bold have been superseded but are still recognised in some industries

Elcometer 4695 Leneta Spray Monitors Self Adhesive Hiding Power – Specifications

Part Number		Description	Chart Dimensions	Box Weight	Quantity per Box	Boxes per Case
Box	Case
K0004695M059	K0004695M259	Leneta Spray Monitor M33	51 x 51 mm	0.91kg	500	4
K0004695M056	K0004695M256	Leneta Spray Monitor M12	25 x 25 mm	0.91kg	2000	4
K0004695M063	K0004695M263	Leneta Spray Monitor M72	51 x 279 mm	2.72kg	500	4

Elcometer 4695 Leneta Spray Monitors Self Adhesive Hiding Power – Data Sheet

Elcometer 4695 Leneta Spray Monitors Self Adhesive Hiding Power Data Sheet

Elcometer 4695 Leneta Spray Monitors Self Adhesive Hiding Power – Standards

The Elcometer 4695 Leneta Test Charts can be used in accordance with:

• AS/NZS 1580.213.1
• ASTM D 344
• ASTM D2805
• ASTM D 2486
• ASTM D 5150
• ASTM D 6441
• BS 3900-D4*
• DIN 53162-2
• FTMS 141 4121
• ISO 2814

* Standards not in bold have been superseded but are still recognised in some industries
