Sagola 3900 Plus Sealer Gun
Specialist pick
Image 1 / 1
About this product

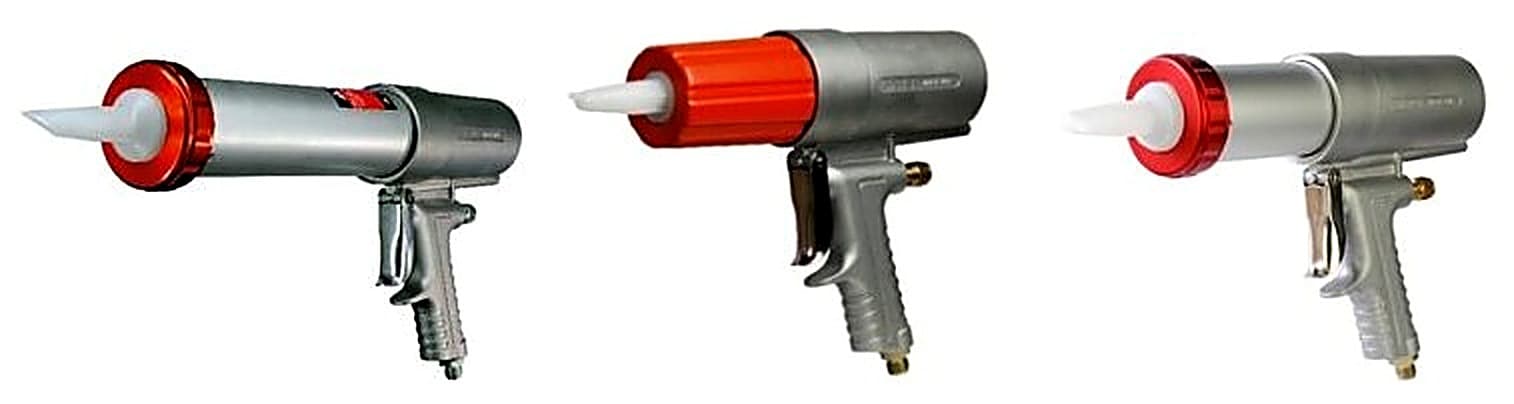

The Sagola 3900 Plus Sealer Gun is a range of compact, lightweight pneumatic sealer guns for dispensing sealants, suited to repairs and windscreen beading. The part numbers PG10330201, PG10330401 and PG10330402 cover the three versions in the range.

Applying sealant by hand is slow and uneven; a pneumatic gun gives a controlled, repeatable bead. The Sagola 3900 Plus Sealer Gun uses a trigger with a discharge valve for precision and control over the flow, and an aluminium main body with a full metal interior for long life and minimal maintenance. The range is offered in cartridge and sealant packet versions, so the same gun family covers different consumable formats.

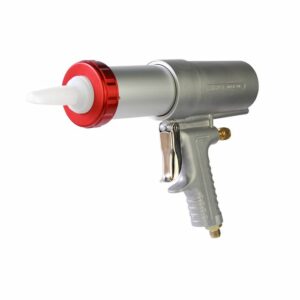

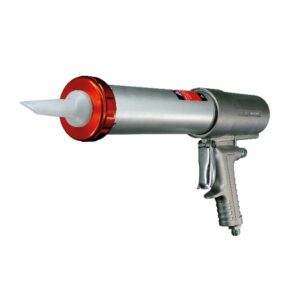

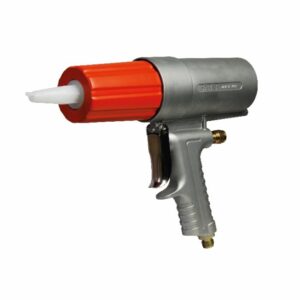

The base Sagola 3900 Plus (PG10330201) takes 300 ml cartridges, measures 250 mm long and weighs 540 g. The 3900 Plus M4 (PG10330401) handles 300 to 400 ml packets at 250 mm and 560 g, while the 3900 Plus M6 (PG10330402) takes 300 to 600 ml packets at 320 mm and 570 g. All three run at a working pressure of 4 to 6 bar with a maximum of 10 bar, draw 160 lpm of air, and connect via a 1/4 inch BSP male air inlet. Supplied by BAMR, South Africa's authorised distributor.

Sagola

Sagola 3900 Plus Sealer Gun

SKU · PG10330201 (+2 more - see Part Numbers)

The Sagola 3900 Plus range of pneumatic sealer guns are compact, lightweight and efficient - ideal for repairs or windscreen beading.

  • Precision control The gun's trigger with discharge valve guarantees precision and control.
  • Low maintenance Aluminium main body and full metal interior ensures long life and minimal maintenance.
  • Versatile Available in cartridge or sealant packet versions.
Indicative price
POA
Specialist-built quote, by close of business
Or ask a quick question on WhatsApp
Used by inspection teams in
RefiningMarineMiningBridge / civil
Specifications

Specifications

* Approximate weight

ModelVessel TypeCapacityWorking PressureMaximum PressureAir ConsumptionAir Inlet ConnectionLengthWeight*
Sagola 3900 PLUSCartridge300ml4 – 6bar10bar160lpm1/4" BSP Male250mm540g
Sagola 3900 PLUS M4Packet300-400ml4 – 6bar10bar1/4" BSP Male250mm560g
Sagola 3900 PLUS M6Packet300-600ml4 – 6bar10bar1/4" BSP Male320mm570g
Part Numbers

Part Numbers

DescriptionPart Numbers
Sagola 3900 PLUS Pneumatic Sealer Gun (compatible with 300ml Cartridges)
PG10330201
Sagola 3900 PLUS M4 Pneumatic Sealer Gun (compatible with 300ml & 400ml Packet)
PG10330401
Sagola 3900 PLUS M6 Pneumatic Sealer Gun (compatible with 600ml Sachet)
PG10330402
Downloads
Answers

Frequently asked questions

What is the difference between the Sagola 3900 Plus cartridge and packet variants?

The cartridge model holds 300ml in a pre-filled cartridge, whilst the M4 packet accommodates 300-400ml and the M6 packet holds 300-600ml. The M6 is 70mm longer to accommodate the larger capacity. Choose cartridge for convenience, or packets if you need to source your own material or require higher capacity.

What air supply do I need for the Sagola 3900 Plus?

The cartridge model consumes 160 litres per minute and operates at 4 to 6 bar working pressure, with a maximum pressure rating of 10 bar. Verify your compressor and distribution line can deliver this volume and pressure range for reliable performance.

Will the Sagola 3900 Plus fit my existing pneumatic system?

All models connect via 1/4 inch BSP male air inlet. Check that your hose coupling matches this connection type and that your regulator can be set between 4 and 6 bar.

Is the Sagola 3900 Plus suitable for one-off repairs as well as production runs?

Yes. Its compact, lightweight design and 300ml starting capacity make it practical for repairs and small jobs like windscreen beading. The M4 and M6 variants offer higher capacity for larger or longer tasks without requiring a different tool.
