Product Description

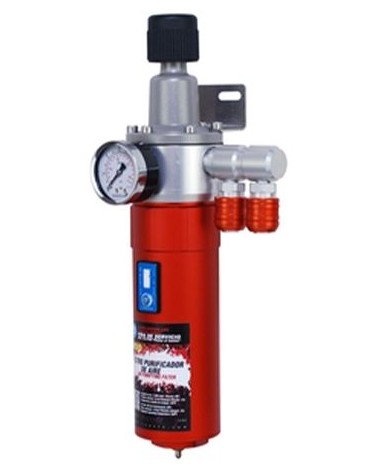

The Sagola 5000X Air Regulator Filter is ideal for booths working with solvent-based paints and preparation areas.
Features
- High performance filtration for maximum air quality with minimum pressure loss.
- Ideal for booths working with solvent-based paints and preparation areas.
- Semi-automatic draining system.
- It has two outlets allowing you to use two tools at once.
- Tough machined aluminium casing.
- Membrane mechanical regulator.
- Friction and centrifugal filtration with 40-micron porous brass filter to retain water, oil and other impurities.
- 3 Year warranty & minimal maintenance.
- Tough heavy-duty construction for long service life.
Technical Specifications
| Air Flow (at 7bar) | >3000LPM |
| Air inlet | 12.7 mm BSP |
| Air outlet | 6.35 mm BSP |
| Maximum working pressure | 12bar |
| Maximum operating temperature | 90°C |
| Drain system | Semi-automatic |
| Dimensions | 148 x 119 x 384mm |
| Weight | 2.3kg |
Packing List
| Sagola 5000X Air Regulator Filter – Single Stage containing Brass Filter (40μm) with Integrated “Life” Timer |
| Male BSPT 6.35mm Coupling (x2)* |
| Analogue Pressure Gauge (x1) |
| Support Bracket |
* US-MIL, Euro-profile or NITTO version depending on part number ordered.
Data Sheet
Part Numbers
| Sagola 5000X Air Regulator Filter – 1 Stage Filter; Euro-Profile Couplings | ||
|
Connection Type: | Euro-Profile |
| Filter Type: | Stage 1 | |
| Part Number: | 10730205 | |
| Sagola 5000X Air Regulator Filter – 1 Stage Filter; US-MIL Couplings | ||
|
Connection Type: | US-MIL |
| Filter Type: | Stage 1 | |
| Part Number: | 10730204 | |
| Sagola 5000X Air Regulator Filter – 1 Stage Filter; NITTO Couplings | ||
|
Connection Type: | NITTO |
| Filter Type: | Stage 1 | |
| Part Number: | 10730207 | |
Accessories

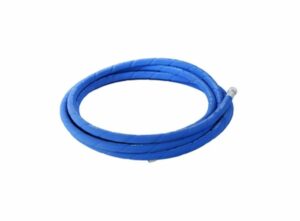

| Anti-static Air Hose – 6m Ø 8x15mm | ||
 |
Part Number: | 56414024 |
| Anti-static Air Hose – 11m Ø 8x15mm | ||
|
Part Number: | 56414025 |
| Anti-static Air Hose – 16m Ø 8x15mm | ||
|
Part Number: | 56414027 |
| Anti-static Air Hose – 26m Ø 8x15mm | ||
|
Part Number: | 56414026 |
| Optional Double Outlet Kit | ||
 |
Part Number: | 56418704 |
| Sagola 5000 Series Stage 1 Brass Filter (40 micron) | ||
| Part Number: | 56418720 | |
| Sagola 5000 Series Stage 1 Gasket Kit | ||
| Part Number: | 56418532 | |
| Anti-static Air Hose – 21m Ø 8x15mm | ||
|
Part Number: | PT56414028 |
