Product Description

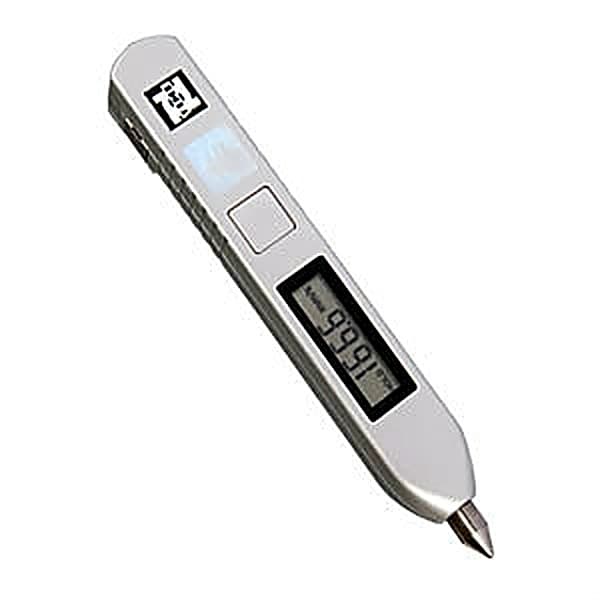

tv7120 tv7126 portable pen type vibration tester

The TV7120 and TV7126 Portable Pen Type Vibration Testers are ideal for prompt testing of vibration on workshop machines, as well as for quick checking of unbalanced and misaligned of bearings and gears. It guards against mechanical malfunction. The tested value is held for 40 seconds after which the unit will automatically switch off.

Acceleration Range Peak value from 0.1 to 199.9 m/s2
Velocity Range 0.01 mm/s – 199.9 mm/s (RMS)
Displacement Range Peak to Peak value from 0.001 to 1.999 mm
Accuracy ±5% ±2



Features

  • Prompt testing of vibration on workshop machines.
  • Quick check of balance and alignment on bearings and gears
  • Guard against mechanical malfunction
  • Tested value holds for 40 seconds
  • Automatic switch off after 40 seconds



Specifications

TV200 / TV260 Portable Pen Type Vibration Tester – Specifications

Model TV7120 TV7126
Parameter RMS of Vibration Velocity (mm/s) Velocity, Acceleration, Displacement
Testing Range Velocity: 0.01mm/s – 199.9mm/s (RMS) Velocity : 0.01mm/s – 199.9mm/s (RMS)
Acceleration: 0.01mm/s – 199.9mm/s (RMS)
Displacement: 0.001mm – 199.9mm (peak-peak)
Frequency Range Velocity: 10Hz – 1kHz Velocity: 10Hz – 1kHz
Acceleration: 10Hz – 1kHz
Displacement: 10Hz – 500Hz
Accuracy ±5% ±2 ±5% ±2
Display  digits LCD refresh Interval about 0.5 second 3½ digits LCD
Power supply: 2 x button batteries (LR44 or SR44) 2 x button batteries (LR44 or SR44)
Battery Capacity Approx. 5 hours working continuously Approx. 5 hours working continuously
Operating temperature: 0-40 ˚C 0-40 ˚C
Environment Relative Humidity: <85% <85%
Dimensions: 150mm x 22mm x 18mm 150mm x 22mm x 18mm
Weight: 55g (include 2 batteries) 55g (include 2 batteries)



TV7120 / TV7126 Portable Pen Type Vibration Tester Packing List:

  • TV7120 / TV7126 Portable Pen Type Vibration Tester
  • Protective sheath
  • Button Battery
  • Certificate
  • Instruction Manual
  • Warranty Card
