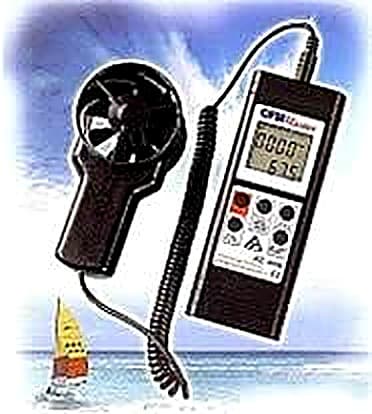

8901 Anemometer / Air Flow / Air Velocity / Air Speed Meter – Discontinued

by Graham Duk | posted in: Discontinued Products | 0

Product Description

8901 Anemometer Features

Professional Remote Vane with built-in Thermistor.
Instant display of CFM and CMS & Temperature.
Mode selectable for air velocity or free area air flow volume measurement.
Calculate air volume in seconds!
Display multiple engineering units.
Single point / multi point average. Average display reading with up to 8 data points.
Data Hold freezes displayed value.
Large LCD display.
Meter includes Hard plastic carrying case, Battery 9 volt x 1, Manual.
Optional USB software (CDR & PC cable).

Serial format:
Baud rate: 2400 Baud,
1 Stop bit,
8 Data Bits
TXXX.XF,VXXXXFTM
TXXX.XC,VXXXXMPS

Specifications

8901 Anemometer / Air Flow / Air Velocity / Air Speed Meter – Specifications

Description	Specification
Temperature range :	-10 to 50° C,+14 to 122° C
Airflow ranges :	0.4 to 35m/ sec.
Resolution (Temperature) :	0.1 ° C, 0.1 ° C
Resolution(Wind speed-FTM) :	1ft/ min
Resolution(Air volume-CFM) :	0.01m/sec
Accuracy(Air flow) :	±2%FS
Accuracy(Temperature) :	±0.6 ° C (1.0 ° C)
Memory :	Minimum / Maximum.
Operating Temp :	0 to 50 ° C
Operating Humidity :	Max.90%RH (0 to 35 ° C).
Auto power off :	20 Min. sleep mode disable.
Dimensions :	181x71x38mm. (H x W x T)
Low battery indicator

Data Sheet

8901 Anemometer / Air Flow / Air Velocity / Air Speed Meter – Data Sheet

8901 Anemometer / Air Flow / Air Velocity / Air Speed Meter Data Sheet

Instruction Manual

8901 Anemometer / Air Flow / Air Velocity / Air Speed Meter – Instruction Manual

8901 Anemometer / Air Flow / Air Velocity / Air Speed Meter Instruction Manual
