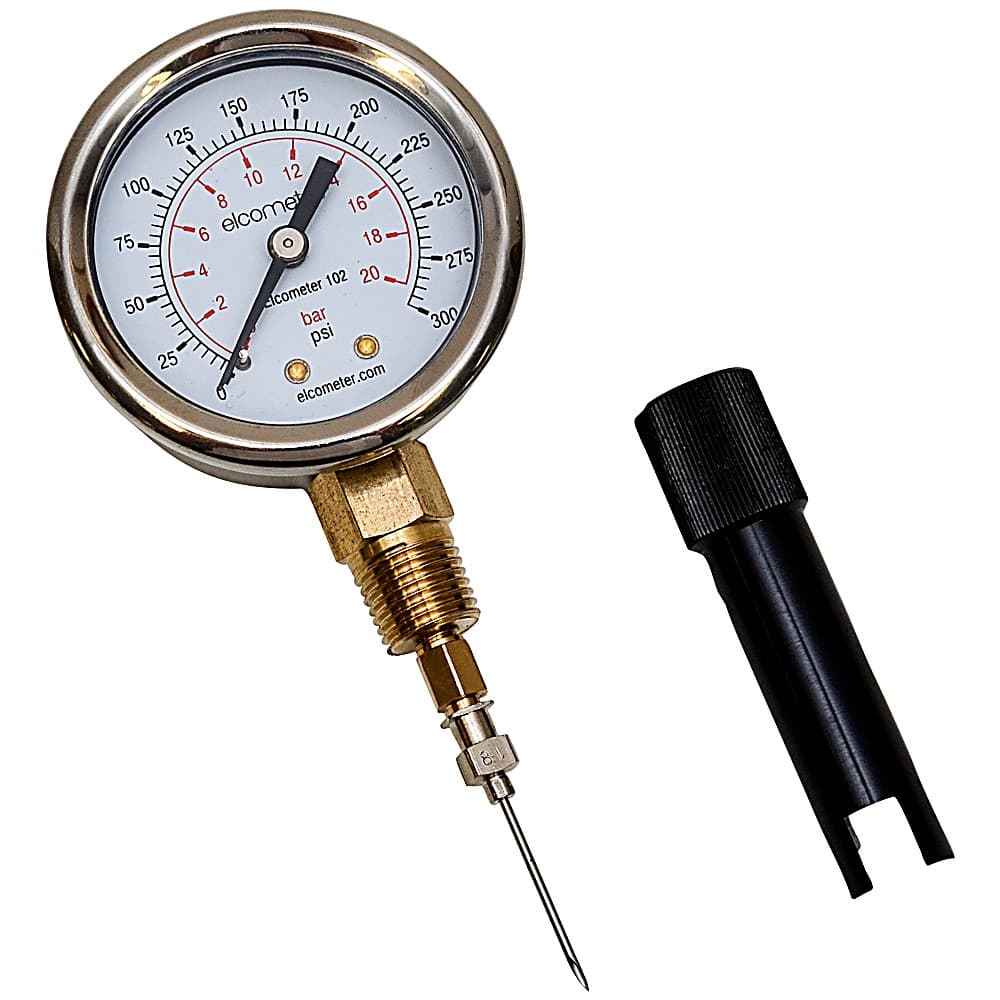

Elcometer 102 Needle Pressure Gauge

Product Description

Elcometer 102 Needle Pressure Gauge is designed to measure air pressure in blast and air hoses.

Pressure drop is responsible for decreased production rates, increased abrasive consumption and reduced anchor profile in abrasive blasting systems.



Specifications

Elcometer 102 Needle Pressure Gauge – Specifications

Part Number Description
E102-A Elcometer 102 Needle Pressure Gauge
T10229425 Replacement Needle (Pack of 2)
Measuring Range 0 – 300psi (0 – 20bar)
Pressure Limitations Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short Time: Full scale value
Operating Temperature -20°C to 60°C
Dimensions 133 x 58 x 28.5mm
Weight 110g

Packing List

  • Elcometer 102 Needle Pressure Gauge
  • Pressure Gauge Guard
  • Spare Hypodermic Needle
  • Protective Pouch
  • Operating Instructions



Data Sheet

Elcometer 102 Needle Pressure Gauge – Data Sheet

Elcometer 102 Needle Pressure Gauge – Data Sheet

Instruction Manual

Elcometer 102 Needle Pressure Gauge – Instruction Manual

Elcometer 102 Needle Pressure Gauge Instruction Manual
