Product Description

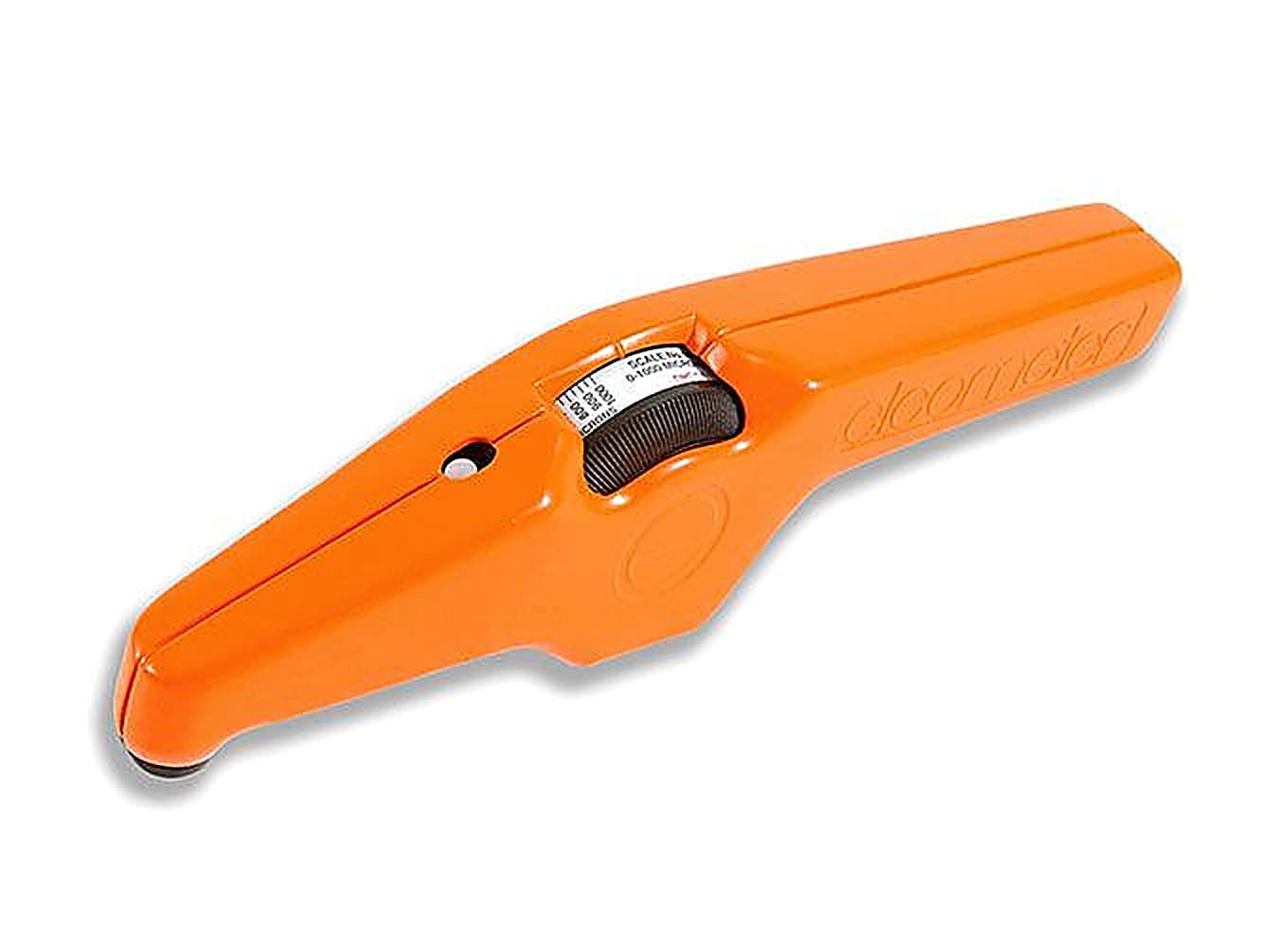

Elcometer 211 Magnetic Coating Thickness Gauge - the "Banana" / Inspection gauge

Regarded as one of the most popular mechanical coating thickness gauges in the world, the Elcometer 211 Magnetic Coating Thickness Gauge – The “Banana” / Inspection Gauge, commonly referred to as the “Banana Gauge”, has proven to be a successful coating thickness gauge where the use of electronic instruments is difficult, eg. inflammable atmospheres in oil and gas production as well as for underwater* dry film coating thickness inspection.

  • Factory calibrated – with user calibration adjustment
  • Foils supplied to check calibration on site
  • Ideal for cold surfaces and underwater use
  • Small and portable with an accuracy ±5%
  • The “V” grooved base, ideal for pipeline inspection
  • Available in either Metric or Imperial versions, the Elcometer 211 measures coatings up to 6mm

* Underwater use voids the warranty and users should replace the gauges periodically


The Elcometer 211 can be used in accordance with the following Standards:

  • ISO 2178
  • ISO 2808-6A
  • ISO 2808-7A
  • AS 2331.1.3
  • AS 3894.3-A
  • ASTM G 12
  • ASTM B 499
  • AS/NZS 1580.108.1
  • BS 5411-11
  • BS 3900-C5-6A
  • DIN 50981
  • NF T 30-124
  • SSPC-PA2

Standards not in bold have been superseded but are still recognised in some industries



Specifications

Elcometer 211 Magnetic Coating Thickness Gauge – The “Banana” / Inspection Gauge – Specifications



Part Number Description Range
A211F–1M Elcometer 211 Coating Thickness Gauge 0 – 1000μm
A211F–8M Elcometer 211 Coating Thickness Gauge 0.65 – 6mm
Accuracy ±5% of the reading or ±2.5μm (whichever is the greater)
Substrate Thickness 0.4mm  minimum
Measurement Area 30mm Diameter minimum
Measurement Diameter 20mm minimum
Edge Effects Must be at least 6mm from edge
Dimensions 200 x 60 x 30mm
Certificate available Certificate of Calibration: issued for Fixed Calibration equipment and shows readings and traceability


Elcometer 211 Magnetic Coating Thickness Gauge – The “Banana” / Inspection Gauge Packing List:

  • Elcometer 211
  • Calibration foil set
  • Carry pouch
  • Neck harness
  • Operating instructions

Data Sheet

Elcometer 211 Magnetic Coating Thickness Gauge – The “Banana” / Inspection Gauge – Data Sheet

Elcometer 211 Magnetic Coating Thickness Gauge Data Sheet

Standards

Elcometer 211 Magnetic Coating Thickness Gauge – The “Banana” / Inspection Gauge – Standards

The Elcometer 211 Magnetic Coating Thickness Gauge – the “Banana” / Inspection gauge can be used in accordance with:

  • ISO 2178
  • ISO 2808-6A
  • ISO 2808-7A
  • AS 2331.1.3
  • AS 3894.3-A
  • ASTM G 12
  • ASTM B 499
  • AS/NZS 1580.108.1
  • BS 5411-11
  • BS 3900-C5-6A
  • DIN 50981
  • NF T 30-124
  • SSPC-PA2

Standards not in bold have been superseded but are still recognised in some industries

Instruction Manual

Elcometer 211 Magnetic Coating Thickness Gauge – The “Banana” / Inspection Gauge – Instruction Manual

Elcometer 211 Magnetic Coating Thickness Gauge Instruction Manual
