Product Description

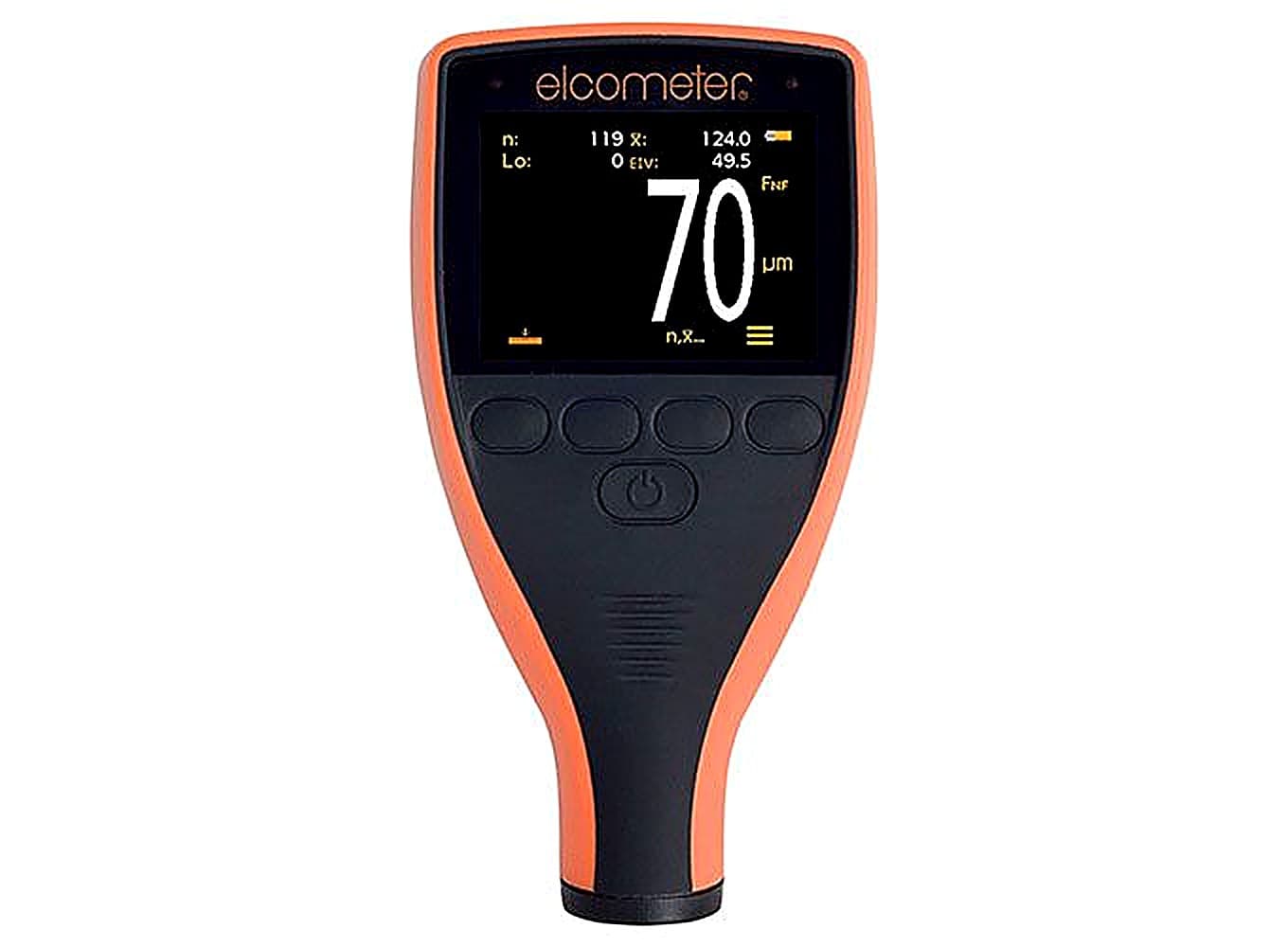

The Elcometer 415 Industrial Paint & Powder Thickness Gauge provides simple, fast and accurate coating thickness measurements on smooth and thin industrial paint and powder coatings.

The Elcometer 415 automatically switches between ferrous and non-ferrous metals. Designed to measure cured paint and powder coatings up to 1000μm, the thickness gauge is ideal for the industrial paint & powder market. With a reading rate of 60+ readings per minute, the new paint and powder thickness gauge allows to inspect more industrial materials in less time.

Compatible with ElcoMaster® software and ElcoMaster® Mobile App, individual paint and powder thickness readings can be transferred via USB or Bluetooth® to PC or a mobile device for analysis and instant report generation.

Features of the Elcometer 415 Paint & Powder Thickness Gauge

• Incredibly fast (60+ readings per minute), reduces inspection times, increasing productivity
• Automatically switches between ferrous and non-ferrous substrates1
• Measures cured paint & powder coatings up to 1000μm
• 1 point and 2 point calibration ensures accuracy on smooth and thin coated substrates
• Easy to use, ergonomic design provides maximum comfort for continuous use
• Large easy to read values in microns or mils
• Auto rotating large colour display provides clear visibility whatever the angle of measurement
• Scratch, solvent and powder resistant display
• Rugged and resistant to powder coatings ingress equivalent to IP64
• Transfer live data via USB or Bluetooth® to ElcoMaster® for instant report generation

“The new Elcometer 415 doesn’t just take a thickness measurement”

In addition to the coating thickness, the new Elcometer 415 displays the key statistical values required to assess the overall industrial finishing; number of readings (n), average (x), lowest (Lo) and highest (Hi) paint thickness.

“Stay accurate with simple calibration”

This new, easy to use, Elcometer 415 has 1 point & 2 point calibration, ensuring accurate measurements on smooth & thin industrial paint & powder coated surfaces.

“Each gauge is designed to last”

Robust, durable & powder resistant, the new Elcometer 415 is available with a 2 year** manufacturer’s warranty; giving you peace of mind.

“Seamlessly connect to any PC, Android™ or iOS mobile device”

As each measurement is taken the Elcometer 415 instantly transmits the thickness values via USB or Bluetooth®2 to your PC or mobile device using ElcoMaster® or your own software application.

Ideal for measuring dry film thickness on thin coated substrates. 360° auto rotating display for a clear reading at any measurement angle, on the production line or QA station. Transfer live data via Bluetooth® to PC, Android™ or iOS mobile devices2

1 Elcometer 415 FNF models
2 Elcometer 415 Model T
** Elcometer 415 gauges are supplied with a one year warranty against manufacturing defects. The warranty can be extended to two years

The Elcometer 415 Industrial Paint & Powder Thickness Gauge can be used in accordance with:

AS2331.1.4
• AS/NZS 1580.108.1
• ASTM B 499

• ASTM D 1186*
• ASTM D 1400*

* Standards not in bold have been superseded but are still recognised in some industries.

Specifications

Elcometer 415 Industrial Paint & Powder Thickness Gauge Specifications

Model B Model B Model T Model T
Part Number A415CFBI A415CFNFBI A415CFTI A415CFNFTI
Calibration Test Certificate
Built in probe type Ferrous (F) Ferrous / Non-Ferrous (FNF) Ferrous (F) Ferrous / Non-Ferrous (FNF)
On screen statistics
Number of readings, n;
Average (mean), x;
Lowest reading, Lo
Highest reading, Hi
Live data output USB USB Bluetooth®  & USB Bluetooth® & USB
Reading rate 60+ readings per minute
Accuracy1 ±1-3% or ±2.5μm
Measurement Range 0-1000μm
Operating Temperature -10 to 50°C
Relative Humidity (RH) 0 to 95% (RH)
Power Supply 2 x AA Batteries or via USB (rechargeable batteries can also be used)
Gauge Dimensions 14.1 x 7.30 x 3.70cm (h x w x d)
Gauge Weight 156g (including batteries)

Packing List

  • Elcometer 415 Industrial Paint & Powder Thickness Gauge
  • 2 x AA batteries
  • Steel & aluminium check pieces*
  • Foil set
  • Wrist strap
  • Impact resistant carry case
  • Screen protector†
  • Calibration Test Certificate
  • Operating instructions
  • USB cable†
  • ElcoMaster CD†
  • 2 year warranty extension card

Data Sheet

Elcometer 415 Industrial Paint & Powder Thickness Gauge – Data Sheet

Elcometer-415-Industrial-Paint-&-Powder-Thickness-Gauge Data Sheet

Standards

Elcometer 415 Industrial Paint & Powder Thickness Gauge – Standards

The Elcometer 415 Industrial Paint & Powder Thickness Gauge can be used in accordance with:

AS2331.1.4
• AS/NZS 1580.108.1
• ASTM B 499

• ASTM D 1186*
• ASTM D 1400*
• ASTM D 7091
• ASTM E 376

• BS 3900-C5-6A*
• BS 3900-C5-6B*
• BS 5411-11*
• BS 5411-3*
• BS 5599
• DIN 50981*
• DIN 50984*
• ECCA T1*
• EN 13523-1
• ISO 2360
• ISO 2808-12

• ISO 2808-6A*
• ISO 2808-6B*
• ISO 2808-7C
• ISO 2808-7D
• JIS K 5600-1-7
• NF T30-124
• ISO 2178

* Standards not in bold have been superseded but are still recognised in some industries.

Accessories

Elcometer 415 Industrial Paint & Powder Thickness Gauge – Accessories

Part Number Description
T99916925 Calibration Check Piece; Steel (Ferrous)
T99916901 Calibration Check Piece; Aluminium (Non-Ferrous)
T99022255-1 Foil Set; 0-1000μm
T99022255-1C Certified Foil Set; 0 – 1000μm
T99921325 USB Cable
T99922341 Self Adhesive Screen Protectors (Pack of 10)



Instruction Manual

Elcometer-415-Industrial-Paint-&-Powder-Thickness-Gauge – Instruction Manual

Elcometer-415-Industrial-Paint-&-Powder-Thickness-Gauge – Instruction Manual

Video

Elcometer 415 Industrial Paint & Powder Thickness Gauge – Video


To get the best performance from the Elcometer 415 Industrial Paint & Powder Thickness Gauge, and make the best use of the gauge’s ±1-3% accuracy, it is important to calibrate your instrument.

Calibrating the Elcometer 415 is very easy. The gauge uses pictorial icons and on-screen prompts to guide you through the calibration process.

Specifically designed for measuring smooth industrial paint and powder coatings on thin ferrous and non-ferrous substrates, the Elcometer 415 has two calibration options: 1 point and 2 point calibration.

The 1 point calibration method is ideal for fast and simple calibration which ‘zeros’ the gauge to the substrate material. To achieve the highest accuracy paint and powder thickness results, calibrate your gauge using a 2 point calibration method.
