Product Description

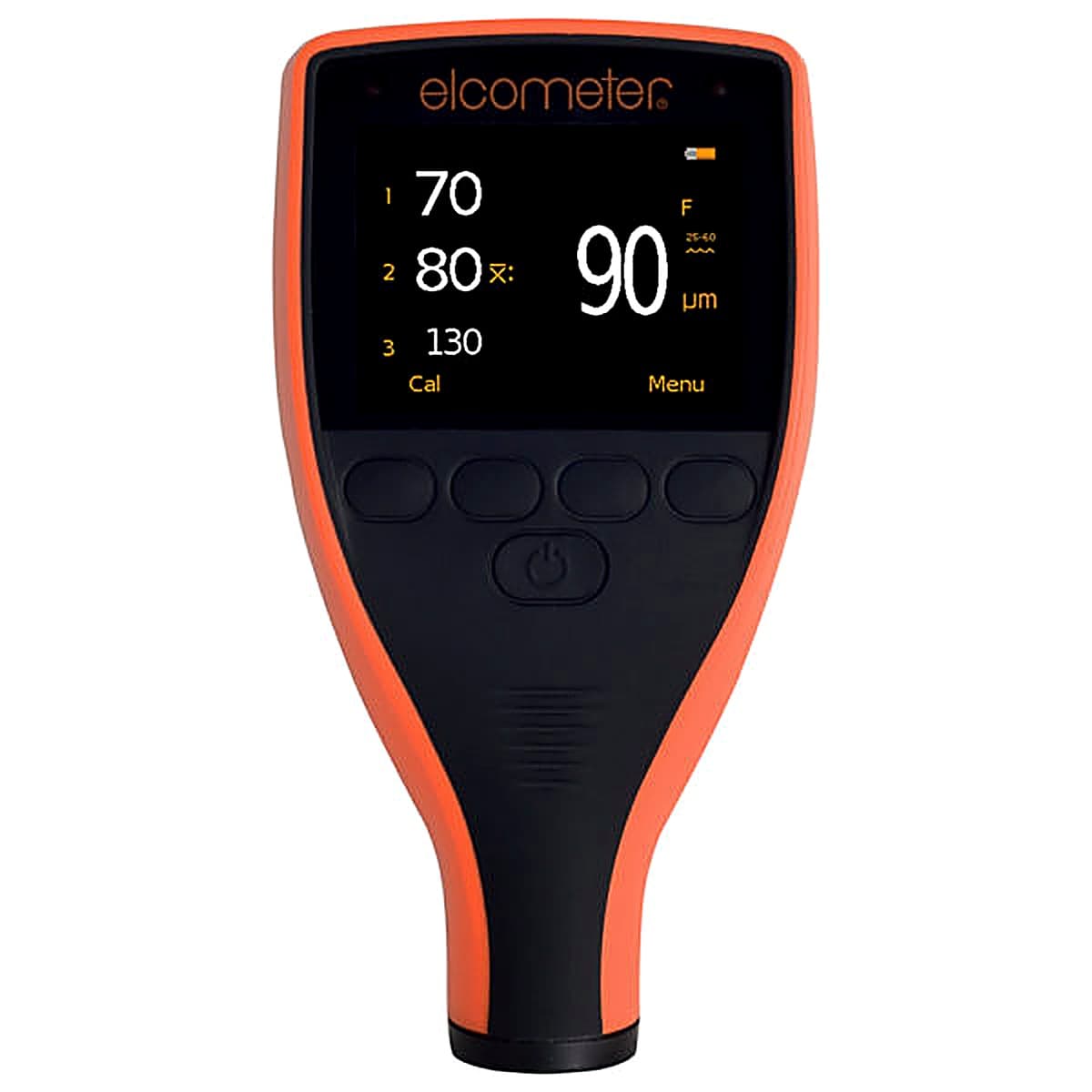

The Elcometer 456 Coating Thickness Gauge sets new standards; providing reliable and accurate coating thickness measurements; helping you to become more efficient.

The Elcometer 456 Dry Film Thickness Gauge is available in three different models. Each coating thickness gauge provides the user with increasing functionality – from the entry level Elcometer 456 Basic, to the top of the range Elcometer 456 Top.

Integral dry film coating thickness gauges are ideal for single handed operation as the wide footprint of the Bigfoot™ internal probe provides greater stability during coating thickness measurement – allowing for consistent, repeatable and accurate dry film thickness results.

Separate dry film coating thickness gauge models, with their wide range of probes, provide even greater dry film thickness measurement flexibility.

Compatible with ElcoMaster® software and ElcoMaster® Mobile App, individual coating thickness measurements can be transferred via USB or Bluetooth to PC or a mobile device for analysis and instant report generation.

Features of the Elcometer 456 Dry Film Thickness Gauge

• Specialised probes to meet a wide range of applications
• Integral and separate gauges to measure coatings up to 30mm
• Dust and water resistant rugged design to IP65
• Drop tested to a height of 2m
• Secure probe connection for improved durability
• Bigfoot™ integral probe for accurate and repeatable measurements
• Ergonomic design for comfort during continuous use
• 2.4″ (6cm) colour screen provides enhanced reading visibility at all angles
• Fast reading rate of more than 70 readings per minute
• Large easy to read colour display
• Scratch and solvent resistant screen
• Alpha numeric batch identification
• Large positive buttons with feedback
• USB and to ElcoMaster® 2.0 software Bluetooth data output

Easy

  • Large buttons ideal for gloved hands
  • Easy to use menus in multiple languages
  • High contrast colour LCD with auto rotate
  • High and low reading limit indicators
  • Factory calibrated for immediate use



Accurate

  • Thickness measurement capability to ±1%
  • Can be used in accordance with National & International Standards
  • Temperature stable measurements
  • Increased reading resolution for thin coatings
  • Measures accurately on smooth, rough, thin and curved surfaces



Reliable

  • Repeatable and reproducible
  • 2 year gauge warranty
  • Supplied with fully traceable test certificates
  • Batch date and time stamp facility



Rugged

  • Sealed, heavy duty and impact resistant
  • Dust and waterproof equivalent to IP64
  • Scratch and solvent resistant display
  • Durable gauge and probe construction
  • Suitable for use in harsh environments



Efficient

  • Fast reading rate of 70+ per minute, 140+ per minute with Scan Probe
  • Multiple calibration memories
  • Alpha numeric batch identification
  • User selectable calibration methods
  • Compatible with ElcoMaster® and ElcoMaster® Mobile App



Powerful

  • Wide range of interchangeable probes
  • USB and Bluetooth data output to iPhone* or Android™ devices
  • Stores up to 150,000 readings in 2,500 batches
  • Measures up to 31mm of coating on metal substrates

Product Features of the Elcometer 456 Coating Thickness Gauge

■ Standard □ Optional
Model B Model S Model T
Fast, accurate reading rate; 70+ readings per minute
Repeatable & reproducible measurements
Easy to use menu structure; in 30+ languages
Tough, impact, water & dust resistant; equivalent to IP64
Bright colour screen; with permanent back light
Scratch & solvent resistant display; 2.4″ (6cm) TFT
Large positive feedback buttons
USB power supply; via PC
Test certificate
2 year gauge warranty*
Automatic rotating display; 0°, 90°, 180° & 270°
Ambient light sensor; with adjustable auto brightness
Emergency light
Tap awake from sleep
Gauge software updates¹; via ElcoMaster® software
Data output
USB; to computer
Bluetooth®; to computer, Android™ & iOSǂ devices
On screen statistics
Number of readings; η
Mean (average); x
Standard deviation; ó
Highest reading; Hi
Lowest reading; Lo
Coefficient of variation; CV%
Elcometer index value²; EIV
Nominal dry film thickness; NDFT
IMO PSPC; %>NDFT, %>90
High & low limits; definable audible & visual alarms
Number above high limit;
Number below low limit;
Live reading trend graph; in batch mode
ElcoMaster® software & USB cable
Replaceable screen protectors
Protective case
Plastic transit case
Integral models; with automatic gauge switch on
Probe type; Ferrous (F), Non-Ferrous (N), Dual (FNF)³ F, N, FNF F, N, FNF F, N, FNF
Measurement range 0-13mm  0-1500μm  0-1500μm
Separate models; with automatic probe recognition
Probe type; Ferrous (F), Non-Ferrous (N), Dual (FNF)³ F, N, FNF F, N, FNF F, N, FNF
Measurement range 0-31mm 0-31mm 0-31mm
On-screen calibration instructions; in 30+ languages
Multiple calibration methods
Factory; resets to the factory calibration
2-point; for smooth and rough surfaces
1-point; zero calibration
Zero offset4; for calibration according to ISO19840
Predefined calibration & measurement methods
ISO, SSPC PA2, Swedish, Australian
Automatic calibration; for rapid calibration
Calibration memory type; gauge (g) or gauge & batch (gb) g gb gb
Number of batches; with unique calibrations 1 2,500
Calibration memories; 3 user-programmable memories
Measurement outside calibration warning
Calibration lock with optional PIN code unlock
Delete last reading
Gauge memory; number of readings Last 5 1,500 150,000
Individual batch calibrations; sent to PC via ElcoMaster®
Limits user definable audible & visual pass/fail warnings
Gauge (g) or gauge & batch specific (gb) limits g gb
Date and time stamp
Batch types; normal, counted average, IMO PSPC
Navsea Mode
Batch review graph
Review, clear & delete batches
Copy batches and calibration settings
Alpha-numeric batch names; user definable on the gauge
Scan & Auto Repeat Modes; with Scan probe connected
Fixed batch size mode; with batch linking

* The Elcometer 456 is extendable within 60 days from date of purchase, free of charge, to 2 years
ǂ Visit www.elcometer.com/sdk to find out how to integrate Elcometer’s MFi certified products to your App
1 Internet connection required
2 Elcometer Index Values are used in the automotive industry to assess a coating’s overall quality; USA patent number US7606671B2
3 FNF patent number USA: 5886522
4 Zero Offset USA patent number US6243661

The Elcometer 456 Coating Thickness Gauge can be used in accordance with:

AS 2331.1.4
• AS 3894.3-B
• AS/NZS 1580.108.1
• ASTM B 499

• ASTM D 1186-B*
• ASTM D 1400*
ASTM D 7091
• ASTM E 376
• ASTM G 12

• BS 3900-C5-6B*
• BS 3900-C5-6A*
• BS 5411-11*
• BS 5411-3*
BS 5599
• DIN 50981*
• DIN 50984*
• ECCA T1*
EN 13523-1
• IMO MSC.215(82)
• IMO MSC.244 (83)
• ISO 1461
• ISO 19840
• ISO 2063
• ISO 2178
• ISO 2360

• ISO 2808-6A*
• ISO 2808-6B*
ISO 2808-7C
• ISO 2808-7D
• ISO 2808-12
• JIS K 5600-1-7
• NF T30-124

• SS 184159*
SSPC PA 2
• US Navy PPI 63101-000
• US Navy NSI 009-32

Specifications

Elcometer 456 Coating Thickness Gauge / Digital Dry Film Thickness Gauges (DFTG) – Specifications

Display information 2.4″ (6cm) QVGA colour TFT display, 320 x 240 pixels
Battery type 2 x AA dry cell batteries, rechargeable batteries can also be used
Battery life ~24 hours of continuous use at 1 reading per second5
Gauge dimensions (h x w x d) 141 x 73 x 37mm
Gauge weight 161g including supplied batteries
Operating temperature -10 to 50°C

Gauges with Integral Probes

Scale 1
Range: 0-1500μm
Accuracy*: ±1-3% or ±2.5μm
Resolution: 0.1μm: 0-100μm; 1μm: 100-1500μm
Model B Model S Model T
Elcometer 456 Ferrous Integral A456CFBI1 A456CFSI1 A456CFTI1
Elcometer 456 Non-Ferrous Integral A456CNBI1 See separate gauges with N2 PINIP™ Probe
Elcometer 456 Dual FNF Integral A456CFNFBI1 A456CFNFSI1 A456CFNFTI1
Scale 2
Range: 0-5mm
Accuracy*: ±1-3% or ±20μm
Resolution: 1μm: 0-1mm; 10μm: 1-5mm
For higher resolution & accuracy on thin coatings Scale 2 gauges can be switched to the Scale 1 mode
Model B Model S Model T C
Elcometer 456 Ferrous Integral A456CFBI2 See separate gauges with N2 PINIP™ Probe
Scale 3
Range: 0-13mm
Accuracy*: ±1-3% or ±50μm
Resolution: 1μm: 0-2mm; 10μm: 2-13mm
Model B Model S Model T C
Elcometer 456 Ferrous Integral A456CFBI3 See separate gauges with N2 PINIP™ Probe

Gauge with Separate Probes

Model B Model S Model T C
Elcometer 456 Ferrous Separate A456CFBS A456CFSS A456CFTS
Elcometer 456 Non-Ferrous Separate A456CNBS A456CNSS A456CNTS
Elcometer 456 Dual FNF Separate A456CFNFBS A456CFNFSS A456CFNFTS

See separate leaflet for the Elcometer 456 Separate Probe Options

* Whichever is the greater
● Test Certificate supplied as standard

Packing List

  • Elcometer 456 Dry Film Coating Thickness Gauge
  • Calibration foils (integrals only)
  • Wrist harness
  • Transit case (T)
  • Protective case (B, S & T)
  • 1 x Screen protectors (S & T)
  • 2 x AA batteries
  • Operating instructions
  • USB cable (S & T)
  • ElcoMaster® software (S & T)

Data Sheet

Elcometer 456 Coating Thickness Gauge / Digital Dry Film Thickness Gauges (DFTG) – Data Sheet

Elcometer 456 Coating Thickness Gauge Digital DFTG Data Sheet

Standards

Elcometer 456 Coating Thickness Gauge / Digital Dry Film Thickness Gauges (DFTG) – Standards

Elcometer 456 Coating Thickness Gauge can be used in accordance with:

AS 2331.1.4
• AS 3894.3-B
• AS/NZS 1580.108.1
• ASTM B 499

• ASTM D 1186-B*
• ASTM D 1400*
ASTM D 7091
• ASTM E 376
• ASTM G 12

• BS 3900-C5-6B*
• BS 3900-C5-6A*
• BS 5411-11*
• BS 5411-3*
BS 5599
• DIN 50981*
• DIN 50984*
• ECCA T1*
EN 13523-1
• IMO MSC.215(82)
• IMO MSC.244 (83)
• ISO 1461
• ISO 19840
• ISO 2063
• ISO 2178
• ISO 2360

• ISO 2808-6A*
• ISO 2808-6B*
ISO 2808-7C
• ISO 2808-7D
• ISO 2808-12
• JIS K 5600-1-7
• NF T30-124

• SS 184159*
SSPC PA 2
• US Navy PPI 63101-000
• US Navy NSI 009-32

* Standards not in bold have been superseded but are still recognised in some industries.

Accessories

Elcometer 456 Coating Thickness Gauge / Digital Dry Film Thickness Gauges (DFTG) -Accessories

Jumbo Hand Grip
Ideal for precision placement for the most accurate results on flat and curved surfaces. Place the probe inside the Jumbo Hand Grip and take measurements – ideal when wearing gloves.
Suitable Elcometer 456 Scale 1 or Scale 2 straight probes.
Ferrous and Non-Ferrous Probes Dual Ferrous and Non-Ferrous Probes
T9997766
 V-Probe Adaptor
Ideal for precision placement for the most accurate results on medium and large diameter curved surfaces such as pipes and cylinders. Suitable for any Elcometer 456 Scale 1 or 2 straight probes.
Ferrous and Non-Ferrous Probes Dual Ferrous and Non-Ferrous Probes
T9997381 T99913133
 Ultra / Scan Probe Replacement End Caps
Highly durable – when tested on smooth surfaces probe end caps have been scanned more than 50km – each end cap snaps on to the end of the Ultra / Scan probe significantly enhancing the lifetime of the probe.
Ferrous & Dual Ferrous Non-Ferrous Probes
T456C23956 Replacement Ultra / Scan Probe End Caps (3 per pack)
 Probe Placement Jig
The Elcometer probe placement jig is the ideal accessory for measuring coatings on small or complex components when the highest levels of repeatability and accuracy are required. is supplied with a probe housing and a component holder to suit Scale 1 or Scale 2 straight probes
T95012880 Probe Placement Jig
T95013028 Component Hand Vice
T95012888 Cable Release Assembly – ideal for remote measurements
T95015961 Dual FNF Probe Housing Adaptor
T95016896 Mini Probe Housing Adaptor
 Calibration Foils / Coated Standards / Zero Test Plates
Elcometer offers a range of individual precision foils, foil sets, coated thickness standards and zero test plates to ensure the greatest possible accuracy.
 Data Output Controller
Enables data to be output from the Elcometer 456 via RS232 ports for the purposes of controlling automated production lines. The Elcometer Software Support Team, or users can produce their own customised software to utilise the data output from the Elcometer 456 gauge to remotely trigger pass/fail criteria for their processes.
T99925387 Elcometer Data Output Controller
Operating Temp 0 to 50°C
Data Input USB
Data Output One RS232 serial output via 9 way D-Type connector
Power Supply Requires 5V 1A (min) DC supply via mini USB. External plug-in mains adapter with interchangeable UK/EU/US/AUS pins supplied
Packing List Elcometer Data Output Controller, USB to RS232 converter lead, power supply






T99922341 Self Adhesive Screen Protectors (x10)
T99921325 USB Cable
T45622371 Benchtop Inspection Stand – for Separate Gauges

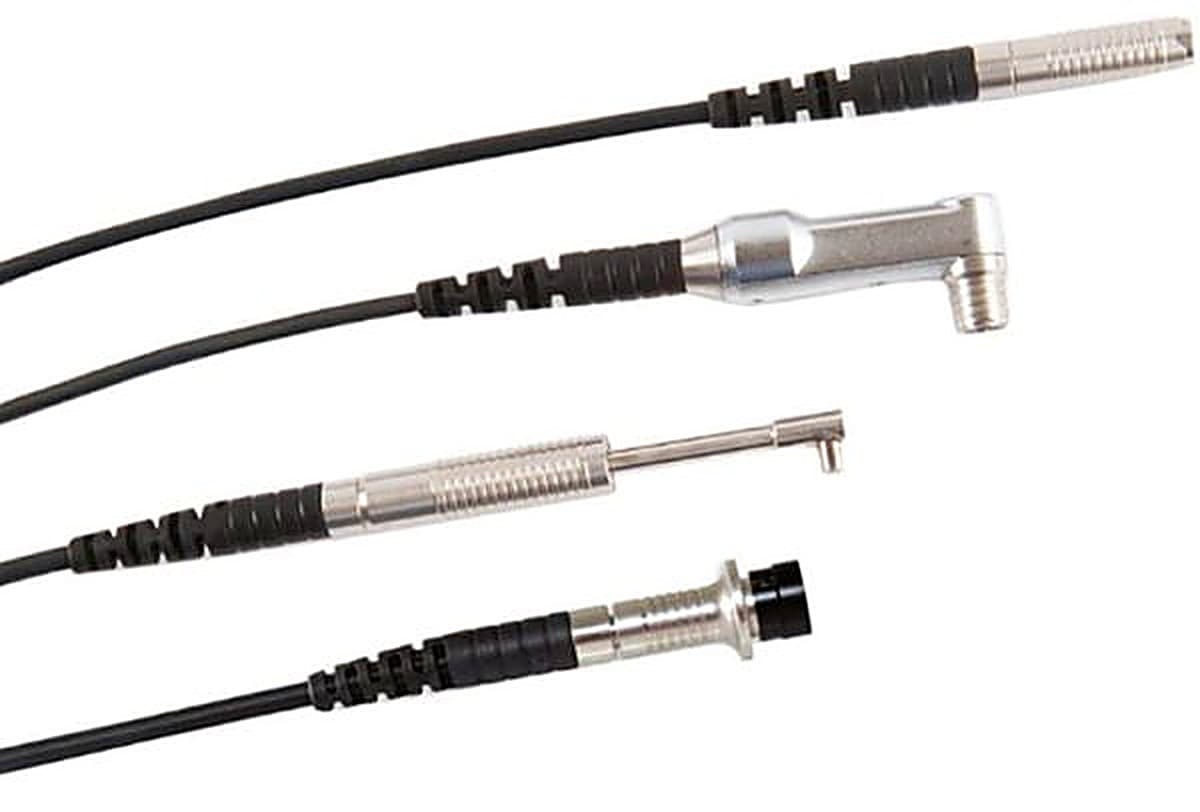

Probes Options

Elcometer 456 Coating Thickness Gauge / Digital Dry Film Thickness Gauges (DFTG) – Probes Options

All Elcometer 456 coating thickness gauge probes are fully interchangeable and are available in a number of designs and scale ranges to meet your specific application.

Ferrous coating thickness gauge probes measure non-magnetic coatings on ferro-magnetic substrates. Elcometer 456 coating thickness ferrous gauges accept any ferrous probe.

Non-ferrous coating thickness gauge probes measure non-conductive coatings on non-ferrous metal substrates and Elcometer 456 non-ferrous gauges accept any non-ferrous probe.

Dual FNF probes measure both ferrous and non-ferrous applications with automatic substrate detection. Elcometer 456 FNF coating thickness gauges accept all ferrous, non-ferrous and dual FNF probes.

Click HERE for Comprehensive Separate Probe leaflet.



Standard Straight Probes

Standard probes measure coatings on both flat and curved surfaces

Mini Probes

Mini probes are ideal for harder to reach areas and edges

Right Angle Probes

Right Angle Probes are designed for taking coating thickness readings where access is restricted

Plug-in Probes

Plug-in probes convert a separate coating thickness gauge into an integral gauge

Telescopic Probes

Telescopic Probes extends right angle probes for out of reach areas

Scan Probes

Scan Probes allows users to take individual measurement or scan large surface areas without damaging the probes – fitted with replaceable probe caps

Waterproof Probes

Waterproof Probes are sealed for use underwater at depth

High Temperature Probes

High Temperature Probes for use on hot coated materials up to 250°C

Anodising Probes

Anodising Probes are chemical resistant washable probes – ideal for the anodising environment

Armoured Cable Probes

Armoured Cable Probes with metal reinforced heavy duty cables, reducing the risk of cable damage

Soft Coating Probes

Soft Coating Probes have large surface area probes for soft reach materials (HVCA approved)

Specialist Probes

Specialist Probes are designed for measuring coating thickness on specialist substrates such as graphite or electroplated components

Elcometer probes have a maximum operating temperature of 80°C with the exception of separate ferrous probes 150°C and Hi-Temperature PINIP’s 250°C. The stated temperature is the substrate temperature, and the duty cycle of the probe must be reduced to ensure a minimal temperature build-up within the probe.

All Elcometer coating thickness gauge probes are supplied with a Test Certificate and a set of calibration foils appropriate to the scale range of the probe.



Elcometer 456 Dry Film Thickness Gauge Probe Options-Specifications

Scale 0.5: Range: 0-500μm

Accuracy: ±1-3% or ±2.5μm
Range: 0-500μm
Resolution: 0.1μm: 0-100μm

1μm: 100-500μm

Certificate:
Description

Ferrous (F)

Part Number Minimum
Headroom
Minimum Sample
Diameter
Minimum Convex
Surface Diameter
Minimum Concave
Surface Radius
Mini Probe – Straight 45mm long T456CFM3—A 6mm 3mm 1.9mm 6.5mm
Mini Probe – 90° 45mm long T456CFM3R90A Headroom:16mm
Width:7mm
3mm 1.9mm 6.5mm
Mini Probe – 45° 45mm long T456CFM3R45A Headroom:18mm
Width:7mm
3mm 1.9mm 6.5mm
Mini Probe – Straight 150mm long T456CFM3—C 6mm 3mm 1.9mm 6.5mm
Mini Probe – 90° 150mm long T456CFM3R90C Headroom:16mm
Width:7mm
3mm 1.9mm 6.5mm
Mini Probe – 90° 300mm long T456CFM3R90D Headroom:16mm
Width:7mm
3mm 1.9mm 6.5mm
Mini Probe – 45° 300mm long T456CFM3R45D Headroom:18mm
Width:7mm
3mm 1.9mm 6.5mm


Non-Ferrous (N)

Mini Probe – Straight 45mm long T456CNM3—A 6mm 4mm 6mm 8.5mm
Mini Probe – 90° 45mm long T456CNM3R90A Headroom:16mm
Width:7mm
4mm 6mm 8.5mm
Mini Probe – Straight 150mm long T456CNM3—C 6mm 4mm 6mm 8.5mm
Mini Probe – 90° 150mm long T456CNM3R90C Headroom:16mm
Width:7mm
4mm 6mm 8.5mm
Mini Probe – 90° 400mm long T456CNM3R90E Headroom:16mm
Width:7mm
4mm 6mm 8.5mm


Non-Ferrous – Graphite (N)

Mini Probe – 90° Graphite 45mm long T456CNMG3R90A Headroom:16mm
Width:7mm
4mm 6mm 8.5mm
Mini Probe – 90° Graphite 150mm long T456CNMG3R90C Headroom:16mm
Width:7mm
4mm 6mm 8.5mm
Mini Probe – 90° Graphite 400mm long T456CNMG3R90E Headroom:16mm
Width:7mm
4mm 6mm 8.5mm


Scale 1: Range: 0-1500μm

Accuracy: ±1-3% or ±2.5μm
Ranged: 0-1500μm
Resolution: 0.1μm: 0-100μm
1μm: 100-1500μm
Certificate:
Description

Ferrous (F)

Part Number Minimum
Headroom
Minimum Sample
Diameter
Minimum Convex
Surface Diameter
Minimum Concave
Surface Radius
Straight Probe T456CF1S 85mm 4mm 4mm 25mm
Straight Probe, sealed T456CF1E 85mm 4mm 4mm 25mm
Scan Probe T456CF1U 86mm 15mm Flat Surface
Scan Probe, Armoured T456CF1UARM 140mm 15mm Flat Surface
Right Angle Probe T456CF1R 28mm 4mm 4mm 25mm
Mini Probe – 90°, 45mm long T456CFM5R90A Headroom:16mm
Width:7mm
4mm 3mm 6.5mm
Mini Probe – 90°, 45mm long, sealed T456CFME5R90A Headroom:16mm
Width:7mm
4mm 3mm 6.5mm
Mini Probe – 90°, 45mm long, 2m cable, sealed T456CFME5R90A-2 Headroom:16mm
Width:7mm
4mm 3mm 6.5mm
PINIP™ Integral Probe T456CF1P 170mm 4mm 4mm 60mm


Non-Ferrous (N)

Straight Probe T456CN1S 85mm 4mm 10mm 10mm
Right Angle Probe T456CN1R 28mm 4mm 10mm 14mm
Mini Probe – 90°, 45mm long T456CNM5R90A Headroom:16mm
Width:7mm
4mm 10mm 8.5mm
Mini Probe – 90°, 150mm long T456CNM5R90C Headroom:16mm
Width:7mm
4mm 10mm 8.5mm
Mini Probe – 90°, 400mm long T456CNM5R90E Headroom:16mm
Width:7mm
4mm 10mm 8.5mm
Anodiser Probe T456CN1AS 100mm 4mm 10mm 14mm
PINIP™ Integral Probe T456CN1P 180mm 4mm 10mm 50mm


Ferrous & Non-Ferrous (FNF)

Straight Probe T456CFNF1S 88mm F: 4mm
N: 6mm
F: 4mm
N: 26mm
12.5mm
Straight Probe, armoured cable T456CFNF1ARM 185mm F: 4mm
N: 6mm
F: 4mm
N: 26mm
12.5mm
Scan Probe T456CFNF1U 89mm 15mm Flat Surface Flat Surface
Right Angle Probe T456CFNF1R 38mm F: 4mm
N: 6mm
F: 4mm
N: 26mm
12.5mm
PINIP™ Integral Probe T456CFNF1P 180mm F: 4mm
N: 6mm
F: 4mm
N: 26mm
65mm


Scale 2: Range: 0-5mm

Accuracy: ±1-3% or ±20μm
Ranged: 0-5mm
Resolution: 1μm: 0-1mm
10μm: 1-5mm
Certificate:
Description

Ferrous (F)

Part Number Minimum
Headroom
Minimum Sample
Diameter
Minimum Convex
Surface Diameter
Minimum Concave
Surface Radius
Straight Probe T456CF2S 89mm 8mm 4mm 25mm
Scan Probe T456CF2U 90mm 15mm Flat Surface
Right Angle Probe T456CF2R 32mm 8mm 4mm 25mm
Armoured Probe T456CF2ARM 138mm 8mm 4mm 25mm
Telescopic Probe – 56 -122cm long T456CF2T 36mm 8mm 4mm 25mm
Soft Coating Probe T456CF2B 89mm 8mm Flat Surface
Waterproof Probe, 1m cable T456CF2SW 138mm 8mm 4mm 40mm
Waterproof Probe, 5m cable T456CF2SW-5 138mm 8mm 4mm 40mm
Waterproof Probe, 15m cable T456CF2SW-15 138mm 8mm 4mm 40mm
Waterproof Probe, 30m cable T456CF2SW-30 138mm 8mm 4mm 40mm
Waterproof Probe, 50m cable T456CF2SW-50 138mm 8mm 4mm 40mm
Waterproof Probe, 75m cable T456CF2SW-75 138mm 8mm 4mm 40mm
PINIP™ Integral Probe T456CF2P 174mm 8mm 4mm 60mm
Hi-Temperature PINIP™ Probe- 250°C T456CF2PHT 174mm 8mm 4mm 60mm


Non-Ferrous (N)

Straight Probe T456CN2S 88mm 14mm 100mm 150mm
PINIP™ Integral Probe T456CN2P 185mm 14mm 100mm 150mm


Scale 3: Range: 0-13mm

Accuracy: ±1-3% or ±20μm
Ranged: 0-5mm
Resolution: 1μm: 0-1mm
10μm: 1-5mm
Certificate:
Description

Ferrous (F)

Part Number Minimum
Headroom
Minimum Sample
Diameter
Minimum Convex
Surface Diameter
Minimum Concave
Surface Radius
Straight Probe T456CF3S 102mm 14mm 15mm 40mm
PINIP™ Integral Probe T456CF3P 184mm 14mm 15mm 45mm


Non-Ferrous (N)

Straight Probe T456CN3S 170mm 35mm  Flat Surface


Scale FM7: Range: 0.6-3.8mm

Accuracy: ±7.5% or ±114μm
Range: 0.60-3.8mm
Resolution: 1μm: 0-1mm
10μm: 1-3.8mm
Certificate:
Description

Ferrous (F)

Part Number Minimum
Headroom
Minimum Sample
Diameter
Minimum Convex
Surface Diameter
Minimum Concave
Surface Radius
Mini Probe – 45°, 45mm long T456CFM7R45A 20mm 6.5 mm


Scale 6: Range: Ferrous: 0-25mm

Accuracy: ±1-3% or ±100μm
Range: Ferrous: 0-25mm
Non-Ferrous: 0-30mm
Resolution: 10μm: 0-2mm
100μm: 2-30mm
Certificate:
Description

Ferrous (F)

Part Number Minimum
Headroom
Minimum Sample
Diameter
Minimum Convex
Surface Diameter
Minimum Concave
Surface Radius
Straight Probe T456CF6S 150mm 51x51mm 35mm 170mm
Straight Probe, armoured cable T456CF6ARM 190mm 51x51mm 35mm 170mm


Scale 7: Range: 0-31mm

Accuracy: ±1-3% or ±100μm
Range: 0-31mm
Resolution: 10μm: 0-2mm
100μm: 2-31mm
Certificate:

Description

Ferrous (F)

Part Number Minimum
Headroom
Minimum Sample
Diameter
Minimum Convex
Surface Diameter
Minimum Concave
Surface Radius
Straight Probe, armoured cable T456CF7ARM 200mm 55x55mm2 40mm 170mm

Elcometer probes have a maximum operating temperature of 80°C with the exception of separate ferrous probes 150°C and Hi-Temperature PINIP’s 250°C. The stated temperature is the substrate temperature, and the duty cycle of the probe must be reduced to ensure a minimal temperature build-up within the probe.

All Elcometer coating thickness gauge probes are supplied with a Test Certificate and a set of calibration foils appropriate to the scale range of the probe.

Specifications

Elcometer 456 Dry Film Thickness Gauge Probe Options-Specifications

Scale 0.5: Range: 0-500μm

Accuracy: ±1-3% or ±2.5μm
Range: 0-500μm
Resolution: 0.1μm: 0-100μm

1μm: 100-500μm

Certificate:
Description

Ferrous (F)

Part Number Minimum
Headroom
Minimum Sample
Diameter
Minimum Convex
Surface Diameter
Minimum Concave
Surface Radius
Mini Probe – Straight 45mm long T456CFM3—A 6mm 3mm 1.9mm 6.5mm
Mini Probe – 90° 45mm long T456CFM3R90A Headroom:16mm
Width:7mm
3mm 1.9mm 6.5mm
Mini Probe – 45° 45mm long T456CFM3R45A Headroom:18mm
Width:7mm
3mm 1.9mm 6.5mm
Mini Probe – Straight 150mm long T456CFM3—C 6mm 3mm 1.9mm 6.5mm
Mini Probe – 90° 150mm long T456CFM3R90C Headroom:16mm
Width:7mm
3mm 1.9mm 6.5mm
Mini Probe – 90° 300mm long T456CFM3R90D Headroom:16mm
Width:7mm
3mm 1.9mm 6.5mm
Mini Probe – 45° 300mm long T456CFM3R45D Headroom:18mm
Width:7mm
3mm 1.9mm 6.5mm


Non-Ferrous (N)

Mini Probe – Straight 45mm long T456CNM3—A 6mm 4mm 6mm 8.5mm
Mini Probe – 90° 45mm long T456CNM3R90A Headroom:16mm
Width:7mm
4mm 6mm 8.5mm
Mini Probe – Straight 150mm long T456CNM3—C 6mm 4mm 6mm 8.5mm
Mini Probe – 90° 150mm long T456CNM3R90C Headroom:16mm
Width:7mm
4mm 6mm 8.5mm
Mini Probe – 90° 400mm long T456CNM3R90E Headroom:16mm
Width:7mm
4mm 6mm 8.5mm


Non-Ferrous – Graphite (N)

Mini Probe – 90° Graphite 45mm long T456CNMG3R90A Headroom:16mm
Width:7mm
4mm 6mm 8.5mm
Mini Probe – 90° Graphite 150mm long T456CNMG3R90C Headroom:16mm
Width:7mm
4mm 6mm 8.5mm
Mini Probe – 90° Graphite 400mm long T456CNMG3R90E Headroom:16mm
Width:7mm
4mm 6mm 8.5mm


Scale 1: Range: 0-1500μm

Accuracy: ±1-3% or ±2.5μm
Ranged: 0-1500μm
Resolution: 0.1μm: 0-100μm
1μm: 100-1500μm
Certificate:
Description

Ferrous (F)

Part Number Minimum
Headroom
Minimum Sample
Diameter
Minimum Convex
Surface Diameter
Minimum Concave
Surface Radius
Straight Probe T456CF1S 85mm 4mm 4mm 25mm
Straight Probe, sealed T456CF1E 85mm 4mm 4mm 25mm
Scan Probe T456CF1U 86mm 15mm Flat Surface
Scan Probe, Armoured T456CF1UARM 140mm 15mm Flat Surface
Right Angle Probe T456CF1R 28mm 4mm 4mm 25mm
Mini Probe – 90°, 45mm long T456CFM5R90A Headroom:16mm
Width:7mm
4mm 3mm 6.5mm
Mini Probe – 90°, 45mm long, sealed T456CFME5R90A Headroom:16mm
Width:7mm
4mm 3mm 6.5mm
Mini Probe – 90°, 45mm long, 2m cable, sealed T456CFME5R90A-2 Headroom:16mm
Width:7mm
4mm 3mm 6.5mm
PINIP™ Integral Probe T456CF1P 170mm 4mm 4mm 60mm


Non-Ferrous (N)

Straight Probe T456CN1S 85mm 4mm 10mm 10mm
Right Angle Probe T456CN1R 28mm 4mm 10mm 14mm
Mini Probe – 90°, 45mm long T456CNM5R90A Headroom:16mm
Width:7mm
4mm 10mm 8.5mm
Mini Probe – 90°, 150mm long T456CNM5R90C Headroom:16mm
Width:7mm
4mm 10mm 8.5mm
Mini Probe – 90°, 400mm long T456CNM5R90E Headroom:16mm
Width:7mm
4mm 10mm 8.5mm
Anodiser Probe T456CN1AS 100mm 4mm 10mm 14mm
PINIP™ Integral Probe T456CN1P 180mm 4mm 10mm 50mm


Ferrous & Non-Ferrous (FNF)

Straight Probe T456CFNF1S 88mm F: 4mm
N: 6mm
F: 4mm
N: 26mm
12.5mm
Straight Probe, armoured cable T456CFNF1ARM 185mm F: 4mm
N: 6mm
F: 4mm
N: 26mm
12.5mm
Scan Probe T456CFNF1U 89mm 15mm Flat Surface Flat Surface
Right Angle Probe T456CFNF1R 38mm F: 4mm
N: 6mm
F: 4mm
N: 26mm
12.5mm
PINIP™ Integral Probe T456CFNF1P 180mm F: 4mm
N: 6mm
F: 4mm
N: 26mm
65mm


Scale 2: Range: 0-5mm

Accuracy: ±1-3% or ±20μm
Ranged: 0-5mm
Resolution: 1μm: 0-1mm
10μm: 1-5mm
Certificate:
Description

Ferrous (F)

Part Number Minimum
Headroom
Minimum Sample
Diameter
Minimum Convex
Surface Diameter
Minimum Concave
Surface Radius
Straight Probe T456CF2S 89mm 8mm 4mm 25mm
Scan Probe T456CF2U 90mm 15mm Flat Surface
Right Angle Probe T456CF2R 32mm 8mm 4mm 25mm
Armoured Probe T456CF2ARM 138mm 8mm 4mm 25mm
Telescopic Probe – 56 -122cm long T456CF2T 36mm 8mm 4mm 25mm
Soft Coating Probe T456CF2B 89mm 8mm Flat Surface
Waterproof Probe, 1m cable T456CF2SW 138mm 8mm 4mm 40mm
Waterproof Probe, 5m cable T456CF2SW-5 138mm 8mm 4mm 40mm
Waterproof Probe, 15m cable T456CF2SW-15 138mm 8mm 4mm 40mm
Waterproof Probe, 30m cable T456CF2SW-30 138mm 8mm 4mm 40mm
Waterproof Probe, 50m cable T456CF2SW-50 138mm 8mm 4mm 40mm
Waterproof Probe, 75m cable T456CF2SW-75 138mm 8mm 4mm 40mm
PINIP™ Integral Probe T456CF2P 174mm 8mm 4mm 60mm
Hi-Temperature PINIP™ Probe- 250°C T456CF2PHT 174mm 8mm 4mm 60mm


Non-Ferrous (N)

Straight Probe T456CN2S 88mm 14mm 100mm 150mm
PINIP™ Integral Probe T456CN2P 185mm 14mm 100mm 150mm


Scale 3: Range: 0-13mm

Accuracy: ±1-3% or ±20μm
Ranged: 0-5mm
Resolution: 1μm: 0-1mm
10μm: 1-5mm
Certificate:
Description

Ferrous (F)

Part Number Minimum
Headroom
Minimum Sample
Diameter
Minimum Convex
Surface Diameter
Minimum Concave
Surface Radius
Straight Probe T456CF3S 102mm 14mm 15mm 40mm
PINIP™ Integral Probe T456CF3P 184mm 14mm 15mm 45mm


Non-Ferrous (N)

Straight Probe T456CN3S 170mm 35mm  Flat Surface


Scale FM7: Range: 0.6-3.8mm

Accuracy: ±7.5% or ±114μm
Range: 0.60-3.8mm
Resolution: 1μm: 0-1mm
10μm: 1-3.8mm
Certificate:
Description

Ferrous (F)

Part Number Minimum
Headroom
Minimum Sample
Diameter
Minimum Convex
Surface Diameter
Minimum Concave
Surface Radius
Mini Probe – 45°, 45mm long T456CFM7R45A 20mm 6.5 mm


Scale 6: Range: Ferrous: 0-25mm

Accuracy: ±1-3% or ±100μm
Range: Ferrous: 0-25mm
Non-Ferrous: 0-30mm
Resolution: 10μm: 0-2mm
100μm: 2-30mm
Certificate:
Description

Ferrous (F)

Part Number Minimum
Headroom
Minimum Sample
Diameter
Minimum Convex
Surface Diameter
Minimum Concave
Surface Radius
Straight Probe T456CF6S 150mm 51x51mm 35mm 170mm
Straight Probe, armoured cable T456CF6ARM 190mm 51x51mm 35mm 170mm


Scale 7: Range: 0-31mm

Accuracy: ±1-3% or ±100μm
Range: 0-31mm
Resolution: 10μm: 0-2mm
100μm: 2-31mm
Certificate:

Description

Ferrous (F)

Part Number Minimum
Headroom
Minimum Sample
Diameter
Minimum Convex
Surface Diameter
Minimum Concave
Surface Radius
Straight Probe, armoured cable T456CF7ARM 200mm 55x55mm2 40mm 170mm

Instruction Manual

Elcometer 456 Coating Thickness Gauge / Digital Dry Film Thickness Gauge (DFTG) – Instruction Manual

Elcometer 456 Coating Thickness Gauge / Digital Dry Film Thickness Gauge (DFTG) Instruction Manual

Video

Elcometer 456 Coating Thickness Gauge / Digital Dry Film Thickness Gauge (DFTG) – Video

Faster dry film thickness test – Elcometer 456 Coating Thickness Gauge

Calibration Methods on the Elcometer 456 Coating Thickness Gauge

How to calibrate the Elcometer 456 Scan Probe
