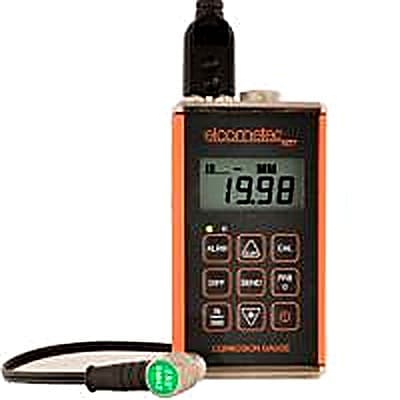

The Elcometer NDT CG60DL Corrosion Ultrasonic Thickness Gauge is ideal for the NDT inspection of pipes, storage tanks and other metal structures. The Elcometer NDT CG60DL Corrosion Ultrasonic Thickness Gauge features both Pulse-Echo (PE) and Echo-Echo mode (EE) ThruPaint™ technology.Offering all the features and benefits of the handheld Elcometer NDT CG50 Corrosion Ultrasonic Thickness Gauge, the Elcometer NDT CG60DL Corrosion Ultrasonic Thickness Gauge range of corrosion thickness gauges is designed to ignore the coating thickness giving a true material thickness value.

Designed to ignore applied coatings up to  2mm thick on metal substrates, the CG60 is ideal for identifying internal corrosion of a coated sample.

The Elcometer NDT CG60DL Corrosion Ultrasonic Thickness Gauge also offer high speed scanning, taking 16 readings per second, making quick scanned passes over the test material. With the lowest thickness value held in memory and displayed when the scanning is complete.

Once a user defined nominal thickness value is set the differential mode will display the +/- thickness difference from the nominal value entered.

The built-in minimal thickness alarm mode illuminates a red LED and an audible alarm sounds when a measurement falls below the user defined target value.

The Elcometer NDT CG60DL Corrosion Ultrasonic Thickness Gauge corrosion thickness gauge offers full data logging and storing of up to 1,000 readings. Complete with free data management software, readings can be directly downloaded into spreadsheets using the RS232 dataport, for full analysis and reporting.

Elcometer NDT CG60DL Corrosion Ultrasonic Thickness Gauge Advantages

  • Range of display & measurement options: Pulse-Echo, Echo-Echo ThruPaint™ technology
  • Adjustable gain: -30dB to 70dB range
  • Multiple calibration and material selection options
  • High speed scan mode: 16 readings per second
  • Differential and minimal thickness alarm modes
  • Data output and storage: 1,000 readings and wave forms
  • Data management software

Specifications

Elcometer NDT CG60DL Corrosion Ultrasonic Thickness Gauge – Specifications



Model & Part Number CG60DL
Material thickness digits display
Measurement Mode PE & EE (ThruPaint™)
Measurement Rate : Manual: 4 readings per second
Scan Mode: 16 readings per second
Measurement Range PE: 0.63 – 500mm, EE: 2.54 – 25.4mm
Measurement Accuracy ±0.1mm
Measurement Resolution 0.01mm
Velocity Calibration Range 1250 – 10,000m/s
Additional Features:
    High Speed scan mode
    Differential mode
    Minimum thickness alarm mode
Data Logging 1,000 readings (10 batches of 100 readings)
Calibration Options single, two point & velocity
Transducer Probe Type dual element
Transducer Frequency Range 1 – 10MHz
V-path / dual path error correction automatic
Probe zero manual (via integrated probe disk)
Display 12.7mm high digits
Units (selectable) mm or inches
LED Backlight on / off / auto
Repeatability / Stability Indicator
Battery Type 2 x AA alkaline
Battery Life (approximate) 200 hours
Low Battery Indicator
Battery Save Mode auto
Operating Temperature -30 to 50ºC
Size (w x h x d) 63.5 x 114.3 x 31.5mm
Weight (including batteries) 284g
Aluminium case design
with gasket sealed end caps,
waterproof membrane keypad
Transducer Connector Type LEMO
RS232 Interface
