The Sagola Anti-Static Hose (part numbers PT56414014 through PT56414028) is an anti-static EPDM rubber air hose with exterior textile reinforcement, intended for spraying inside the booth. Static charge building up along a spray line can attract dust to wet coatings and, in a solvent-laden booth, presents an ignition risk. The Sagola Anti-Static Hose is conductive, with a conducting pipe rating of less than 1 M Ohm, so charge is carried away rather than allowed to accumulate.
The Sagola Anti-Static Hose is light, flexible, manageable and twist free, with an EPDM rubber inner and textile-reinforced outer in blue. High-security crimped ends withstand the high temperatures of the booth and remove the need for flanges, which can release or leak as the material expands. Connections of the Sagola Anti-Static Hose use 6.35 mm female couplings with a conical closure and flare fitting for easy assembly of the push connector. The Sagola Anti-Static Hose runs from -40 degrees C to 120 degrees C with a maximum working pressure of 20 bar and a breakage pressure of 60 bar.
Two bore sizes are offered for the Sagola Anti-Static Hose, 6 x 12 mm and 8 x 15 mm, across lengths from 2.5 m up to 26 m. The Sagola Anti-Static Hose complies with 97/23/CE and UNE EN-559 for rubber hoses used with gases and solvents. It is used in industrial spray finishing and is supplied by BAMR, South Africa's authorised distributor.

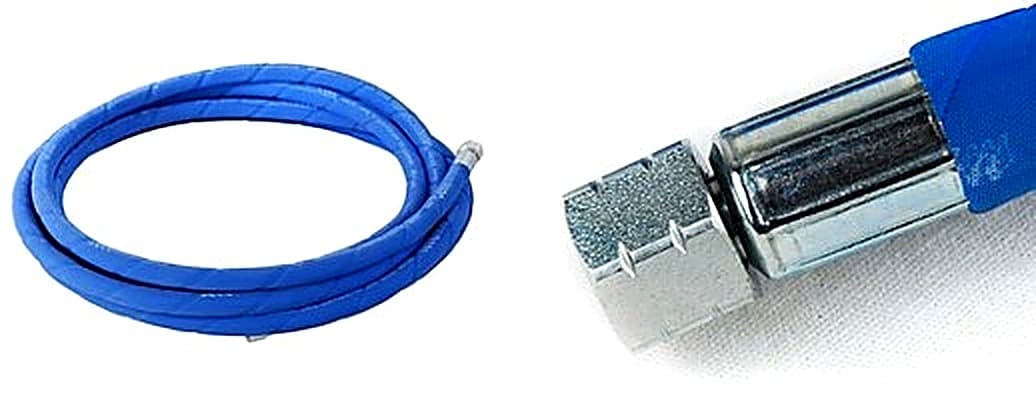

Sagola Anti-Static Hose
Light, flexible, manageable and twist free anti-static EPDM rubber hose with exterior textile reinforcement, ideal for spraying in the booth.
- Anti-static EPDM rubber hose
- Exterior textile reinforcement
- Ideal for spraying in the booth
- High security crimped ends Able to bear the high temperatures of the booth
- No need to use flanges Avoiding that they release or cause leaks due to dilation
Specifications
- Max Working Pressure
- 20bar
- Breakage Pressure
- 60bar
- Temperature Range
- -40°C to 120°C
- Dimensions (I/D x O/D)
- 6 x 12mm and 8 x 15mm
- Material (inside)
- EPDM Rubber
- Material (outside)
- Textile Reinforcement
- Colour
- Blue
- Connections
- 6.35mm female couplings with conical closure and flare fitting for easy assembly of the push connector
- Conducting Pipe
- < 1 M Ω
- Hoses Compliance
- 97/23/CE, UNE - EN 559
Specifications
Specifications
- Max Working Pressure
- 20bar
- Breakage Pressure
- 60bar
- Temperature Range
- -40°C to 120°C
- Dimensions (I/D x O/D)
- 6 x 12mm and 8 x 15mm
- Material (inside)
- EPDM Rubber
- Material (outside)
- Textile Reinforcement
- Colour
- Blue
- Connections
- 6.35mm female couplings with conical closure and flare fitting for easy assembly of the push connector
- Conducting Pipe
- < 1 M Ω
- Hoses Compliance
- 97/23/CE, UNE - EN 559
Standards
Standards
Part Numbers
Part Numbers
| Description | Part Numbers |
|---|---|
| Anti-static Air Hose - 2.5m Ø 6x12mm | PT56414014 |
| Anti-static Air Hose - 6m Ø 8x15mm | PT56414024 |
| Anti-static Air Hose - 11m Ø 8x15mm | PT56414025 |
| Anti-static Air Hose - 16m Ø 8x15mm | PT56414027 |
| Anti-static Air Hose - 26m Ø 8x15mm | PT56414026 |
| Anti-static Air Hose - 21m Ø 8x15mm | PT56414028 |
Downloads
Frequently asked questions
What pressure should my system run at?
The Sagola Anti-Static Hose is rated to 20bar working pressure, with a breakage pressure of 60bar. Design your system to stay within the 20bar continuous limit.
How does the anti-static feature prevent damage?
The hose has a conducting pipe rated at less than 1 megaohm resistance to dissipate static charge during spraying. Integrate this with your booth's grounding system per your safety procedures.
Which diameters does the Sagola come in?
Two sizes are available: 6 x 12mm and 8 x 15mm (inner x outer diameter). Match the size to your spray system's flow rate and connection fittings.
Will it degrade in a hot spray booth?
No. The EPDM rubber core is rated from -40°C to 120°C, so it remains stable in heated spray environments and cold storage without degradation.
Is it certified for industrial use?
Yes. The hose complies with EN 559 (rubber hose specification) and Pressure Equipment Directive 97/23/CE, confirming its fitness for industrial spray systems.
Is it durable for regular spraying operations?
Yes. The hose is light, flexible, and twist-free with textile reinforcement, making it manageable and reliable for daily use in spray booths.
