» » » TT2130 Ultrasonic Wall Thickness; Material Thickness Gauge (previously TT300)

TT2130 Ultrasonic Wall Thickness; Material Thickness Gauge (previously TT300)

by | posted in: Coating Inspection, Ultrasonic NDT | 0

Product Description

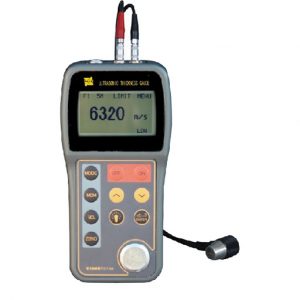

TT2130 Ultrasonic Wall Thickness; Material Thickness Gauge (TT300)

The new TT2130 Ultrasonic Wall Thickness; Material Thickness Gauge (previously TT300) is a handheld microprocessor-controlled thickness gauge, specifically designed for measuring the thickness of metallic and non-metallic materials eg. aluminium, titanium, plastics, ceramics, glass, cast iron and other good ultrasonic wave-conducting materials, as long as the material has parallel top and bottom surfaces. The TT2130 can perform precise measurements on various types of raw materials, component parts, and assembled machinery. It can also be used to monitor all types of pipes and pressure vessels for loss of thickness due to corrosion. With the TT2130 you can record up to 500 readings and download them to a computer.
Features:

  • Easy to use, handheld thickness gauge
  • Suitable for most metallic and non-metallic materials
  • 2 Display modes – current thickness or minimum thickness (menu selectable)
  • Upper/Lower limits pre-setting with sound alarm
  • Memory for 500 stored values
  • Two point calibration for higher accuracy
  • Display resolution 0.001mm and 0.01mm selectable for your use
  • Display in mm or inch
  • Large LCD display with adjustable backlight
  • Low battery indicator
  • RS232 output for data transfer to pc or printer
  • The TT3120 can be equipped with a low frequency transducer for thickness testing of thin work pieces
  • Autocalibration of zero point – automatically correcting system errors
  • Optional transducers for measuring high temperatures up to 300 deg C and TSTU32 for measuring cast iron.

Standard Package:

  • Main unit
  • Transducer 5PΦ10
  • Rubber jacket
  • Ultrasonic Couplant
  • Batteries AA 1.5V x 2
  • Screwdriver
  • Instruction manual
  • TIME certificate
  • Warranty card
  • Carrying case

Optional Accessories:

  • Optional Transducer TSTU32 for measuring cast Iron
  • Optional Transducer ZW5P for measuring temperatures up to 300 deg C
  • Printer TA230 with cable for TT2130
  • Dataview Software for TT2130

Specifications

TT2130 Ultrasonic Wall Thickness / Material Thickness Gauge – Specifications

Description Specification
Measuring Range : 1.2mm – 225.0mm with 5MHz transducer
5.0mm – 300.0mm with 2MHz transducer
Operating Temperature : -10 deg C to 60 deg C
Lower Limit Steel Pipes : Dia 20mm x 3.0mm
Display Resolution : 0.1mm / 0.01mm
Data Output : RS232 Output for Printer or PC
Measuring Accuracy : ±1% thickness + 0.1mm
Sound Velocity : 1000m/s – 999 m/s
Power Supply : 2 pcs AA batteries 1.5V
Battery Life : 100 hours without backlight
Dimensions : 152mm x 74mm x 35mm
Weight : 370g



Data Sheet

TT2130 Ultrasonic Wall Thickness / Material Thickness Gauge – Data Sheet

TT2130 Ultrasonic Wall Thickness / Material Thickness Gauge Data Sheet

Sound Velocities

Sound Velocities / Speed of Sound in Materials for Ultrasonic Thickness Gauges

The Ultrasonic Thickness Gauges can be programmed by the user to the appropriate Material in two ways :

  • Using known standards of the same material – set the calibration to the thickness.
  • Using the Frequency calibration, set the frequency to the appropriate Material using the Velocity / Speed of Sound Chart below.
Metals
m/s m/s
A Aluminium 6 320 – 6 400 M Molybdenum 6 250 – 6 300
Aluminium (2024-T4) 6 380 Mercury 1 450
Asbestos Cement 2 200 N Nickel 5 480 – 6 040
B Beryllium 12 880 P Platinum 3 690
Boron Carbide 10 920 S Silver 3 600 – 3 700
Brass 4 390 Steel, Mild 5 900 – 6 100
C Cast Iron 3 500 – 5 600 Steel, Casting (4340) 5 850
Cast Iron (Modular  Graphite) 5 600 Steel, 303 Stainless (Austenitic) 5 660 – 6 120
Cast Grey Middle 4 600 Stellite 7 050
Copper 4 650 – 4 720 T Tin 3 300 – 3 330
Cadmium 2 770 – 2 800 Titanium 5 900 – 6 100
Chromium 6 200 Tungsten Carbon 6 650
G Gold 3 200 – 3 250 Tungsten 5 180 – 5 400
I Inconel 5 820 U Uranium 3380
Iron 5 890 – 5 930 W Wolfram 5 460
L Lead 1 960 – 2 400 Z Zinc 4 170 – 4 320
M Manganese 4 660 – 4 700 Zircaloy 2 4 700
Magnesium 5 770 – 5 840 Zirconium 4 650
Non-Metal
m/s m/s
A Acrylic 2 870 N Nylon 2 600 – 2 690
Acrylic Resin 2 730 – 2 870 O Oil (SAE 30) 1 740
Air 330 P Paraffin Wax 2 200
Aluminium Oxide 8 700 Perspex 2 860
C Ceramic (Macor) 5 631 Phenolic 1 400
Diamond 17 500 Plexi Glass 2 690
Diesel Oil 1 250 Polyamide 2 380
Epoxy Resin 2 650 Polyethylene 1 900 – 2 400
G Glass (Flint) 4 260 Polyurethane 1 780 – 1 900
Glass (Crown) 5 260 – 6 120 Polystyrene 2 340 – 2 400
Glass (Quartz) 5 570 Porcelain 5 600 – 5 900
Glass (Window) 6 800 PVC 2 400
Glycerine 1 930 Q Quartz X Cut 5 740
I Ice 3 980 Quartz Fused 5 980
H Hi-Density Polyethelene 2 220 – 2 300 Rubber (Butyl) 1 900
(Grey & White, Not Black) R Rubber (Soft) 1 480
M Methylene-Oxide 9 980 Rubber (Vulc.) 2 300
Monel 5 360 – 5 400 S Silicone Rubber 948
Motor Oil (SAE 30) 1 750 T Teflon 1 350 – 1 520
N Neoprene 1 600 W Water 1470
Please Note : This Schedule is only a Guide



Instruction Manual

TT2130 Ultrasonic Wall Thickness / Material Thickness Gauge – Instruction Manual

TT2130 Ultrasonic Wall Thickness / Material Thickness Gauge Instruction manual
