Elcometer 4695 Metopac™ Metal Test Panels
Product Description

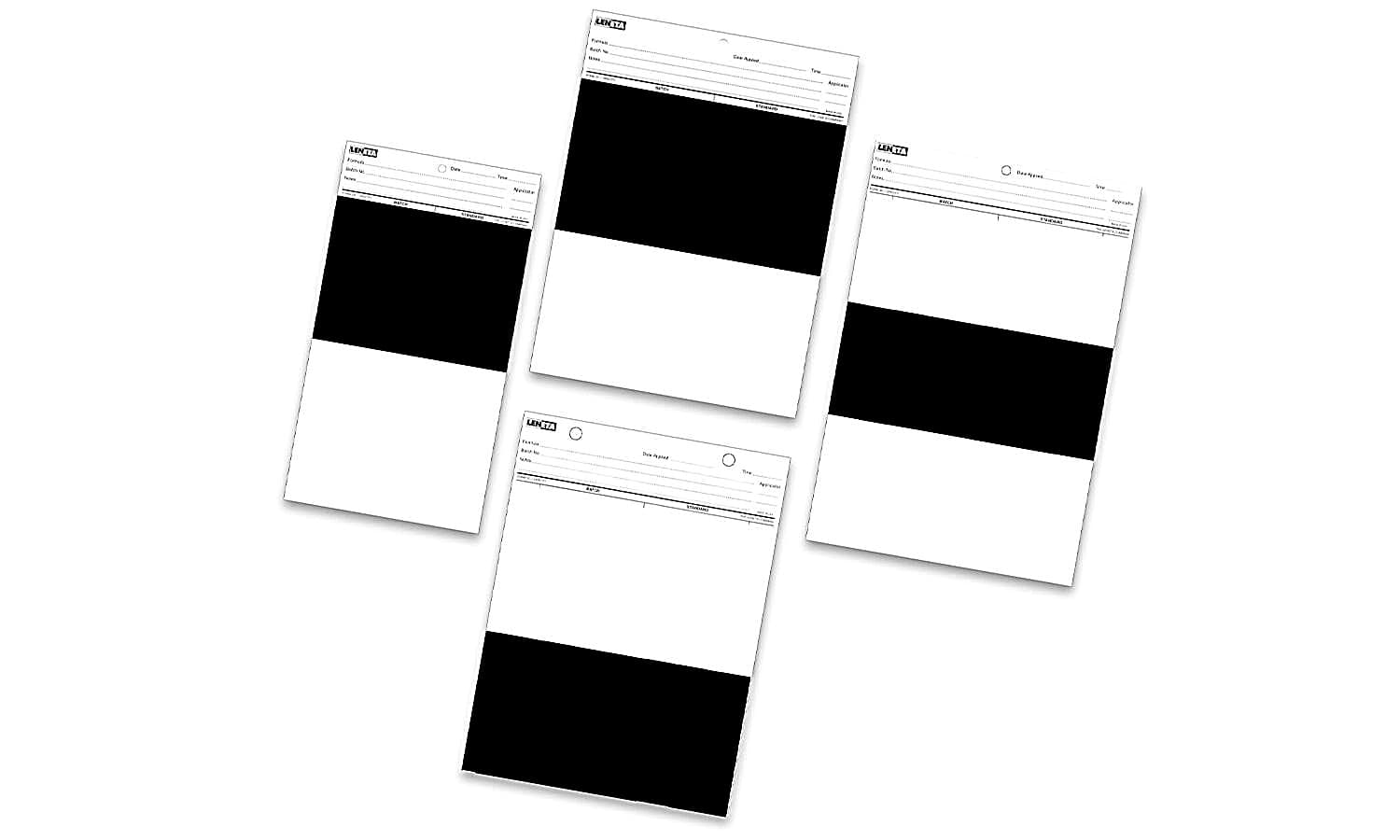

Elcometer supplies a wide range of Leneta Test Charts, from plain white to those having different patterns of black and white. Made from naturally bright, non-fluorescent white paper, these charts contain no optical brighteners that can affect instrumental color measurements.
Leneta Test Charts are the market standard in today’s coatings industry. Foil Card substrates of steel, aluminum, glass and plastic are also available. Leneta Test Charts are available in boxes & cases.
Charts can be used with the Elcometer 4340 Motorised Film Applicator
Metopac™ Metal Test Panels
The Elcometer 4695 Metopac Metal Test Panels are painted steel panels, used for measuring the hiding power of powder coatings and industrial enamels. Available in half black/half white and all black.
Black surface:
Solvent Resistant, Non bleeding, Reflective
1% max measured according to ASTM Method E1347
White surface:
Solvent Resistant, Colour Retentive, Reflective, Reflectance
80% min measured according to ASTM Method E1347
The Elcometer 4695 Leneta Test Charts can be used in accordance with:
• AS/NZS 1580.213.1
• ASTM D 344
• ASTM D2805
• ASTM D 2486
• ASTM D 5150
• ASTM D 6441
• BS 3900-D4*
• DIN 53162-2
• FTMS 141 4121
• ISO 2814
* Standards not in bold have been superseded but are still recognised in some industries
Specifications
| Part Number | Description | Chart Dimensions | Box Weight | Quantity per Box | Boxes per Case | |
| Box | Case | |||||
| K0004695M094 | K0004695M294 | Leneta Panel T12G | 76 x 132 mm | 3.63kg (8lb) | 125 | 4 |
| K0004695M095 | K0004695M295 | Leneta Panel T12M | 132 x 279 mm | 1.81kg (4lb) | 50 | 4 |
Data Sheet
Standards
The Elcometer 4695 Leneta Test Charts can be used in accordance with:
• AS/NZS 1580.213.1
• ASTM D 344
• ASTM D2805
• ASTM D 2486
• ASTM D 5150
• ASTM D 6441
• BS 3900-D4*
• DIN 53162-2
• FTMS 141 4121
• ISO 2814
* Standards not in bold have been superseded but are still recognised in some industries
