Product Description

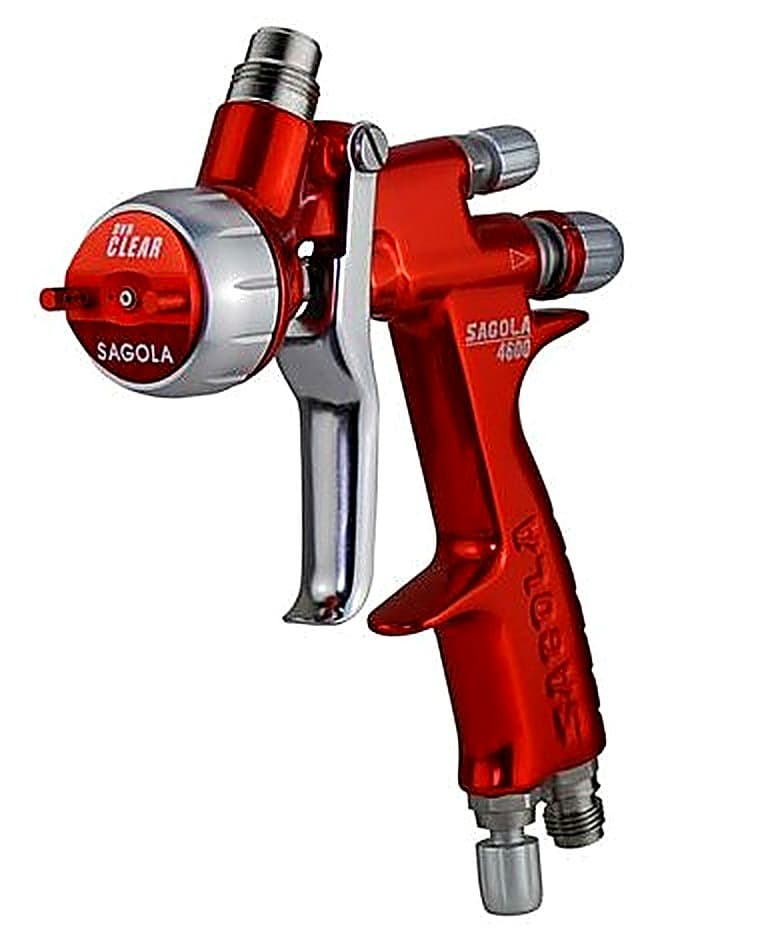

The Sagola 4600 Gravity Spray Gun provides a more even and uniform paint distribution, from top to bottom. This makes it ideal for difficult base colours such as metallics, silver, and pearls. It also minimises common paint defects like shadows, patch coats, and striping. All of this is achieved while using less paint, less air, and less time, ultimately lowering your costs and boosting your profits.

Features

  • Efficient and Easy
    • Ultra-fine atomization and less overspray for an industry leading transfer efficiency.
    • Stable fan pattern, uniform from top to bottom, for precise colour matches, seamless transitions, and blends with easier overlapping.
  • Even and Ergonomic
    • A flawless finish with even particle distribution with minimal patching.
    • Designed to be so comfortable you forget you are holding it.
  • Effortless and Economic
    • It’s so easy to use, you get a professional finish every time, with minimal effort.
    • Less air, less bounce back for the same flawless result with Dynamic Flow Technology

Dynamic Flow Technology™ harnesses the ambient air around the aircap allowing the Sagola 4600 spray gun to provide a flawless finish even at lower working pressures.

DFT ™ Gives you:

• Greater fan stability.

• Superior atomization.

• Uniform fan from top to bottom.

• Less bounce back, less overspray.

• A more precise application with easier overlapping.

• Less painting defects such as shadowing, patch coats and striping.

• An even paint distribution – ideal for difficult base colours such as metallics, silvers, pearls.

What is Metal to Metal Technology?

For over 70 years Sagola have been manufacturing industry leading spray equipment, often setting the benchmark for others to follow.

Our state-of the-art European production facilities uses aerospace grade engineering which allows us to create spray guns using metal to metal technology – which means our spray guns have fewer joints, o-rings and seals than any other spray gun on the market.

This M2M™ technology allows Sagola to offer the lowest maintenance on the market and gives you:

• Low maintenance.

• Fewer wearing parts.

• Low cost of ownership.

• Fast clean & colour change.

• No packings, joints or seals in fluid area.

• Greater reliability.

Aircap, Needles & Nozzle Kits

 DVR BASEDVR HVLPDVR CLEARDVR CLEAR PRO
Output Flow191 – 227 g/min170 – 198 g/min185 – 219 g/min196 – 229 g/min
Air Consumption280 L/min450 L/min295 L/min315 L/min
Fan Width290 – 315 cm290 – 325 cm275 – 295 cm285 – 310 cm
Application Distance18 – 20 cm15 – 18 cm18 – 20 cm18 – 20 cm
Air Inlet Pressure1.8 – 2.0 bar2.0 bar2.2 bar2.2 bar

Technical Specifications

 Digital VersionStandard Version
Weight with Supplied Cup675g675g
Weight without Cup492.8g492.8g
Air inlet connectionBSP 1/4″ M (High flow)BSP 1/4″ M (High flow)
Paint Filter80 mesh80 mesh
Recommended working air pressure2 bar2 bar
Cup Capacity650ml650ml
Sound Pressure Level (Average)80 dB80 dB
Pressure Gauge Battery Type
Materials in contact with the productAnodized aluminum, Polyoxymethylene, stainless steelAnodized aluminum, Polyoxymethylene, stainless steel

* Sagola DPC™ Disposable Paint Cups are also available

Data Sheet

Part Numbers

Sagola 4600 HVLP 1.2X0L Needle & Nozzle Kit
Part Number:10142416




Sagola 4600 HVLP 1.30 Needle & Nozzle Kit
Part Number:10142408



Sagola 4600 HVLP 1.30XL Needle & Nozzle Kit
Part Number:10142420



Sagola 4600 HVLP 1.40 Needle & Nozzle Kit
Part Number:10142412



Sagola 4600 CLEAR PRO 1.40 Needle & Nozzle Kit
Part Number:10142410



Sagola 4600 CLEAR PRO 1.30XL Needle & Nozzle Kit
Part Number:10142418



Sagola 4600 CLEAR PRO 1.30 Needle & Nozzle Kit
Part Number:10142406



Sagola 4600 CLEAR PRO 1.20XL Needle & Nozzle Kit
Part Number:10142414



Sagola 4600 CLEAR PRO 1.20 Needle & Nozzle Kit
Part Number:10142402



Sagola 4600 CLEAR 1.40 Needle & Nozzle Kit
Part Number:10142411



Sagola 4600 CLEAR 1.30XL Needle & Nozzle Kit
Part Number:10142419



Sagola 4600 CLEAR 1.30 Needle & Nozzle Kit
Part Number:10142407



Sagola 4600 CLEAR 1.20XL Needle & Nozzle Kit
Part Number:10142415



Sagola 4600 CLEAR 1.20 Needle & Nozzle Kit
Part Number:10142403
