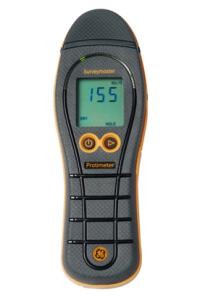

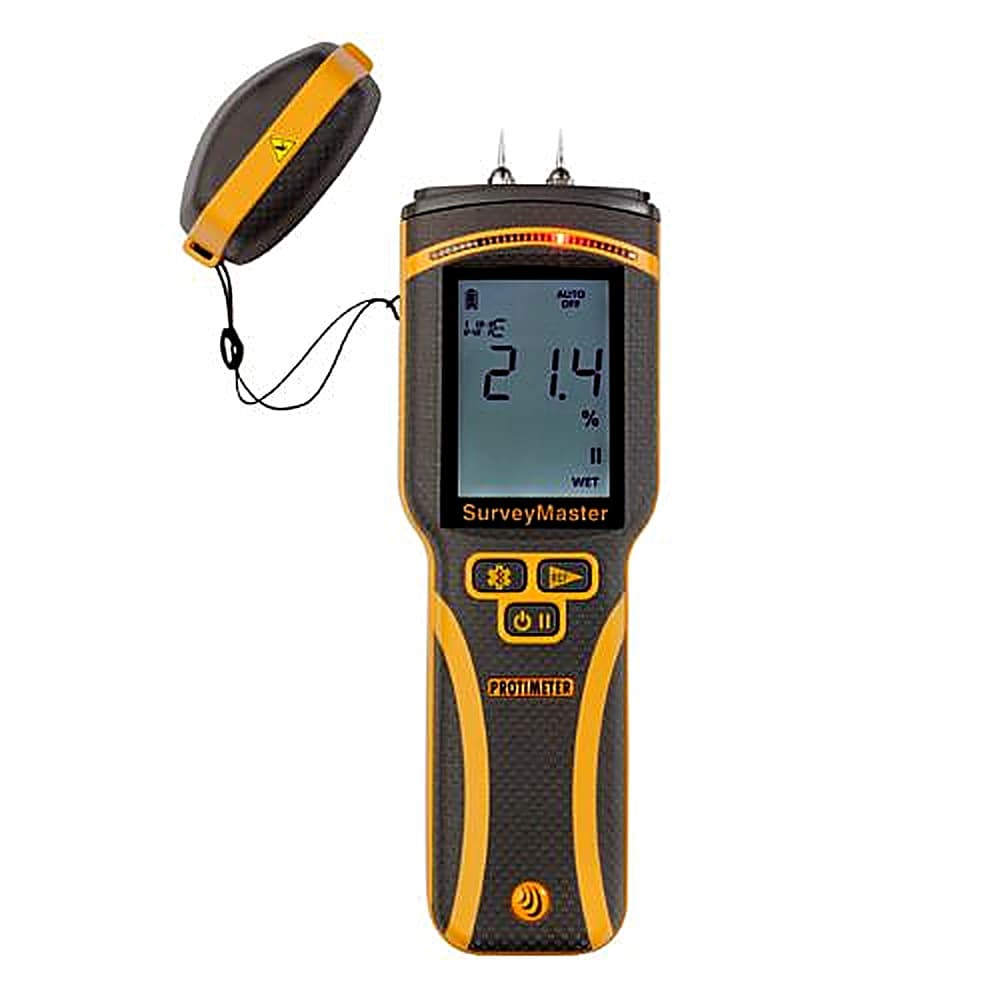

Surveymaster Moisture Meter

Surveymaster Moisture Meter

Product Description

Buy it online here

The Surveymaster Moisture Meter can help building professionals such as contractors, surveyors, home builders and architects assess building moisture levels during new build and refurbishing activities. Excessive moisture in buildings can lead to decay and deterioration of components and decorative finishes. Professionals involved with the identification, management and remedy of moisture need tools that help them to:

  • Identify the extent of the moisture penetration
  • Diagnose the cause of the problem
  • Monitor change in the moisture level

Protimeter moisture meters and hygrometers satisfy these requirements comprehensively. The Surveymaster Moisture Meter is the preferred industry choice for surveying and investigating moisture in buildings.

Features of the Surveymaster Moisture Meter

  • Rugged construction
  • Large backlit display
  • Pin moisture measurement
  • Non-invasive measurement up to ¾” (20mm) below the surface
  • Wide range of accessory plugins
  • Industry leading 2-year warranty

of the Surveymaster Moisture Meter

    • Easy-to-use
    • Allows rapid assessment of building moisture
    • Instant readings in a wide range of building materials
    • Non-invasive measurement not adversely affected by surface moisture
    • Two meters in one


Surveymaster Moisture Meter – Specifications

Surveymaster Moisture Meter Technical Specifications

Range Relative (non-invasive) 70 to 999
Dry (green) 70-169
At risk (yellow) 170-199
Wet (red) 200-999
Pin Measurement 7.9% to 99% WME
Dry (green) 7-16.9
At Risk (yellow) 17-19.9
Wet (red) 20-99.9
Display Display 1 Digital LCD backlit
Display 2 60 LEDs green (dry), yellow (at risk) and red (wet)
Depth of moisture Non-invasive up to 20 mm
Pin up to 12.5 mm
Case Pouch with belt loop
Power 9 V (supplied)
Warranty 2 years on mechanical or manufacturing defects.
Does not include wearing part or accessories.
Part Number BLD5365
Weight 225g (including Batteries)
Dimensions 190 mm x 70 mm x 49 mm
Battery One 9 V 6F22R
User adjustable features:
Auto shut off 1-6 mins.
Hold feature
Backlight on/off.
Audible on/off.
Dry, At Risk and Wet Indicator on/off.

Surveymaster Moisture Meter Packing list:

      • Surveymaster Instrument
      • 125 mm deep wall probes
      • Moisture probe
      • Calcheck
      • 2 spare pins
      • Pouch
      • Instructions

Data Sheet

Surveymaster Moisture Meter – Data Sheet

Surveymaster Moisture Meter Data Sheet


Surveymaster Moisture Meter – Accessories

Optional Accessories both plug into jack plug (adjacent to needles)

Part Number Description
BLD5020 Deep Wall Probes (240 mm) – fits all Protimeter Minis & Timber & Surveymasters
BLD5000 Hammer Electrode – Plugs into Protimeter Minis, Survey and Timber Masters – Penetrates 37 mm into wood
BLD5055 Hammer Electrode – Heavy Duty Design
BLD5070 EIFS Probe

Accessories included with the Surveymaster Moisture Meter – both plug into jack plug (adjacent to needles)

      • Deep Wall Probes (5018) (with insulated stems & bare tips) can detect moisture levels up to 140 mm Length depth. Supplied in a Canvas (Velcro) Pouch.

Note: Hammer Electrode readings are more meaningful and less destructive than an Oven Drying Test. The oven gives an average moisture content. The Hammer Electrode enables the user to measure the highest moisture content (to 37mm) which is the requirement of most users.

Instruction Manual

Surveymaster Moisture Meter – Instruction Manual

Surveymaster Moisture Meter Instruction Manual


The Protimeter SurveyMaster uses both pin and non-invasive moisture measurement modes.

This video describes how to use both modes to evaluate moisture in a building.
