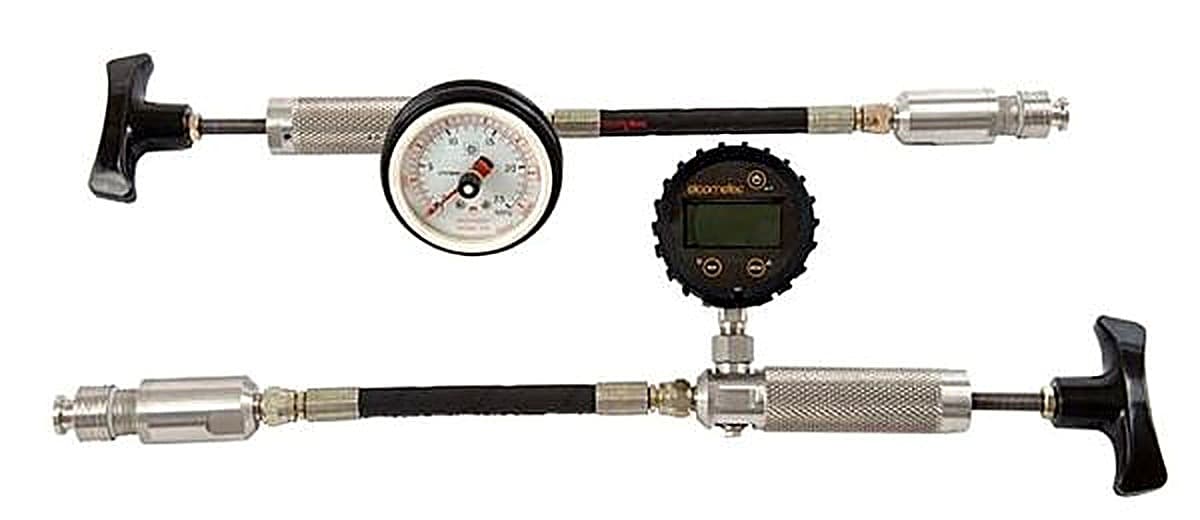

Elcometer 108 Hydraulic Adhesion Tester (Digital or Analogue)

Product Description


The Elcometer 108 Hydraulic Adhesion Tester is an extremely versatile Type III adhesion gauge which can be used for many adhesion requirements. Adhesion tests can be made on flat or curved (concave and convex) surfaces.

The Elcometer 108 Hydraulic Adhesion Tester is the ideal gauge for testing coatings on tanks, pipelines, etc.

• Hand-Powered and portable adhesion tester
• Ideal for site work
• Reusable stainless-steel dollies

The Elcometer 108 Hydraulic Adhesion Tester can be used with convex and concave dollies, making this the gauge for adhesion of coatings on all pipelines including those with small diameter, tanks and other curved surfaces. There is a wide range of curved dollies available, each designed for a specific range of curvature.

Concave and convex dollies designed to meet specific curvatures are available upon request.

The Elcometer 108 Hydraulic Adhesion Tester an be used in accordance with:
• ISO 16276-1
• ASTM D451
• NF T30-606

* Standards not in bold have been superseded but are still recognised in some industries

Specifications

Elcometer 108 Hydraulic Adhesion Tester (Digital or Analogue) – Specifications

Part NumberDescriptionCertificate
F108—1DElcometer 108/1 Hydraulic Adhesion Tester – Analogue Dial Gaugeο
F108—2DElcometer 108/2 Hydraulic Adhesion Tester – Digital Gaugeο
Scale RangeAnalogue: 0 – 25MPa
Digital: 0 – 25MPa
Operating RangeAnalogue: 2 – 18MPa
Digital: 2 – 18MPa
Scale ResolutionAnalogue: 1MPa
Digital: 0.1MPa
Analogue Instrument Accuracy±1MPa Metric Scale
Digital Instrument Accuracy±3% or 0.4MPa – whichever is the greater
Dolly Sizes –Outside Diameter – 19.4mm
Inside Diameter – 3.7mm
Area – 284mm²

ο Optional Calibration Certificate available

Packing List

  • Elcometer 108 Hydraulic Adhesion Tester Gauge
  • ABS Carry Case
  • 5 Flat Dollies
  • 5 Nylon Plugs
  • MC1500 Quick Curing Adhesive
  • Dolly Cleaning Tool
  • Heating Tongs


Data Sheet

Elcometer 108 Hydraulic Adhesion Tester (Digital or Analogue) – Data Sheet

Elcometer 108 Hydraulic Adhesion Tester (Digital or Analogue) Data Sheet

Standards

Elcometer 108 Hydraulic Adhesion Tester (Digital or Analogue) – Standards

The Elcometer 108 Hydraulic Adhesion Tester an be used in accordance with:
• ISO 16276-1
• ASTM D451
• NF T30-606

* Standards not in bold have been superseded but are still recognised in some industries

Accessories

Elcometer 108 Hydraulic Adhesion Tester (Digital or Analogue) – Accessories

Part NumberDescription
T99911135Cyanoacrylate Adhesive
T9999646-Standard Flat Dolly 19.4mm
T99923147Dolly Cleaning Heating Tongs
T99923103Dolly Cleaning Heating Tongs
