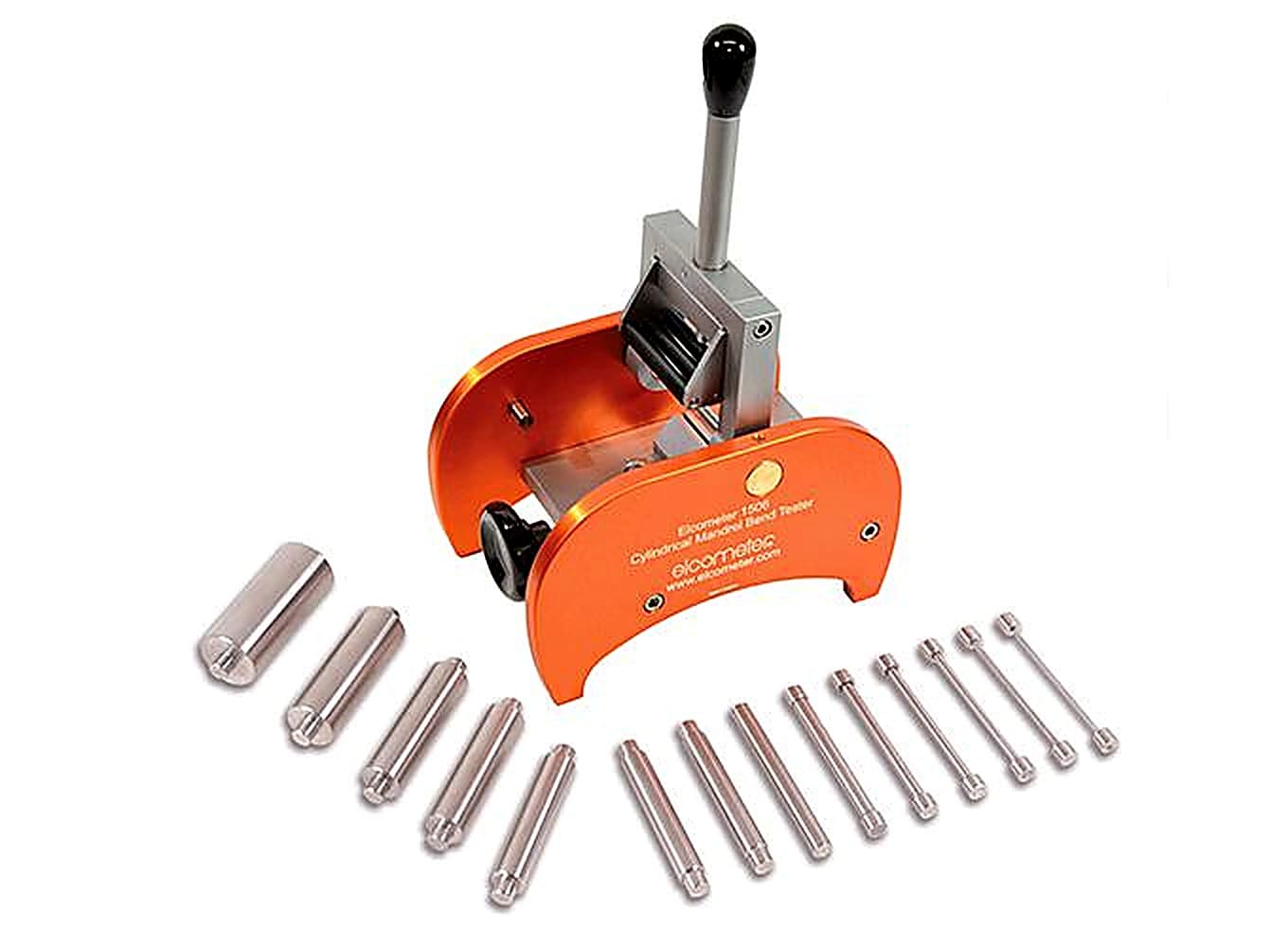

Elcometer 1506 Cylindrical Mandrel Bend Tester
Product Description
The Elcometer 1506 Cylindrical Mandrel is a robust bend tester used to determine the elasticity, adhesion and elongation properties of cured coatings on sheet metal.

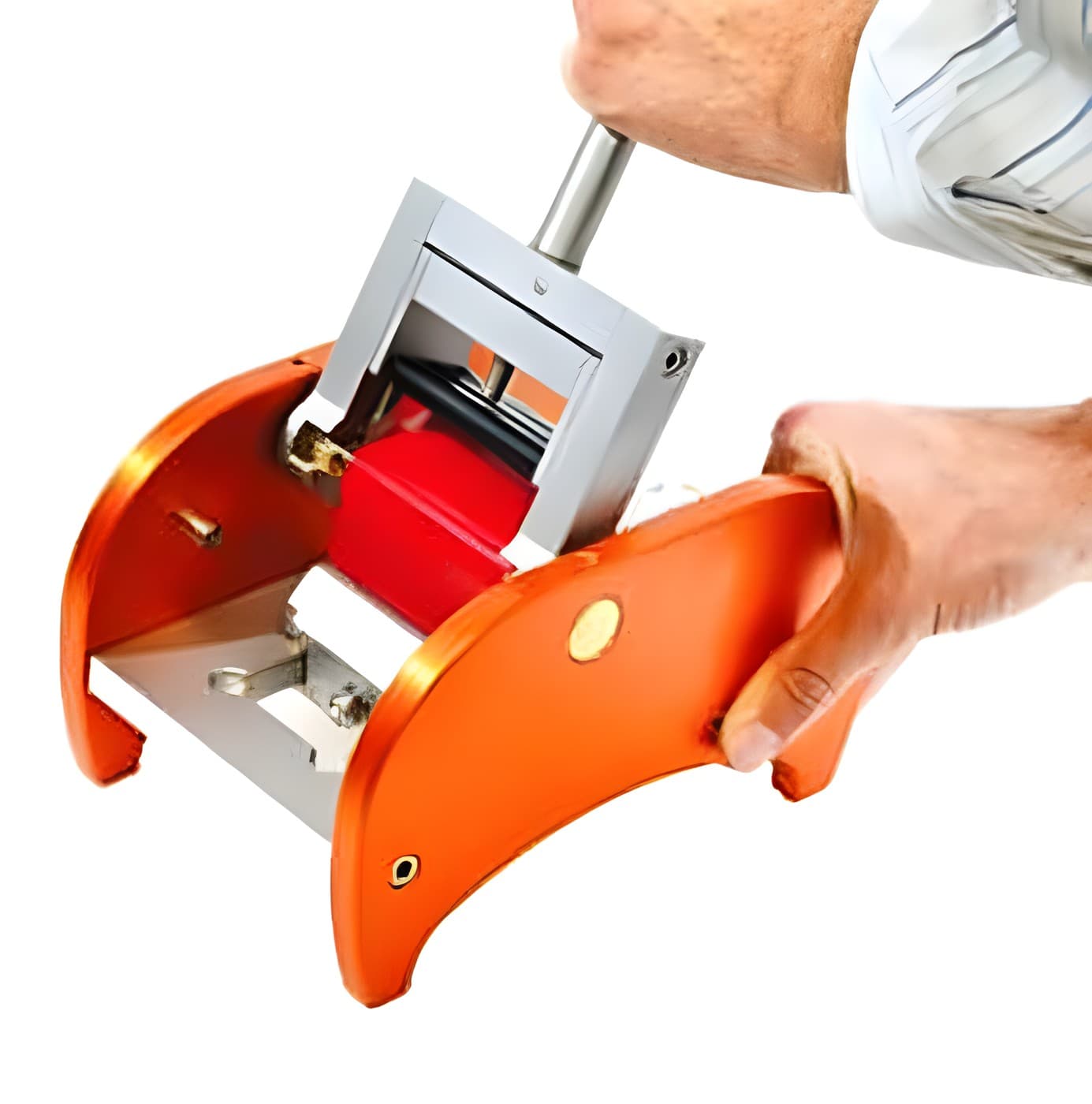

The frame has a bending lever with height-adjustable rollers and a sliding vice for clamping the sample which means the test pieces are bent perfectly and regularly on decreasing mandrels until the desired effect can be observed.
The instrument can be adjusted to the diameter of the mandrel used and the mandrels are easily changed.
A wide range of mandrels with metric and imperial diameters is available. Mandrels are not supplied with the instrument and can be ordered as a set or individually.
The Elcometer 1506 Cylindrical Mandrel Bend Tester can be used in accordance with: • AS/NZS 1580.402.1 |  |
Specifications
| Part Number | Description |
| K1506M201 | Elcometer 1506 Cylindrical Mandrel Bend Tester |
| Test Piece Width | Maximum: 64mm |
| Test Piece Length | Maximum: 80 to 100mm depending on the size of the Mandrel used |
| Dimensions | 320 x 135 x 130mm |
| Weight | 4.3kg |
- Elcometer 1506 Cylindrical Mandrel Bend Tester
- Operating instructions
Data Sheet
Standards
The Elcometer 1506 Cylindrical Mandrel Bend Tester can be used in accordance with:
• AS/NZS 1580.402.1
• ASTM D 2485
• ASTM D 522-B
• ASTM D 1737
• ISO 1519-2
• JIS K 5600-5-1

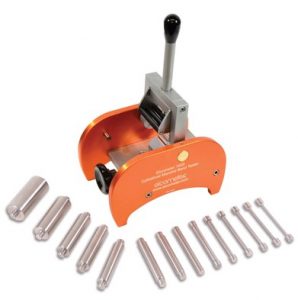

Accessories
| Part Number | Description |
| KT001506P201 | Elcometer 1506 Metric Mandrel Set, 2 to 32mm |
(one of each of the Metric Mandrels below) | |
| Metric | |
| KT001506F002 | 2mm Mandrel |
| KT001506F003 | 3mm Mandrel |
| KT001506F004 | 4mm Mandrel |
| KT001506F005 | 5mm Mandrel |
| KT001560F006 | 6mm Mandrel |
| KT001506F007 | 8mm Mandrel |
| KT001506F014 | 10mm Mandrel |
| KT001506F015 | 12mm Mandrel |
| KT001506F016 | 13mm Mandrel |
| KT001506F017 | 16mm Mandrel |
| KT001506F018 | 19mm Mandrel |
| KT001506F019 | 20mm Mandrel |
| KT001506F020 | 25mm Mandrel |
| KT001506F021 | 32mm Mandrel |
