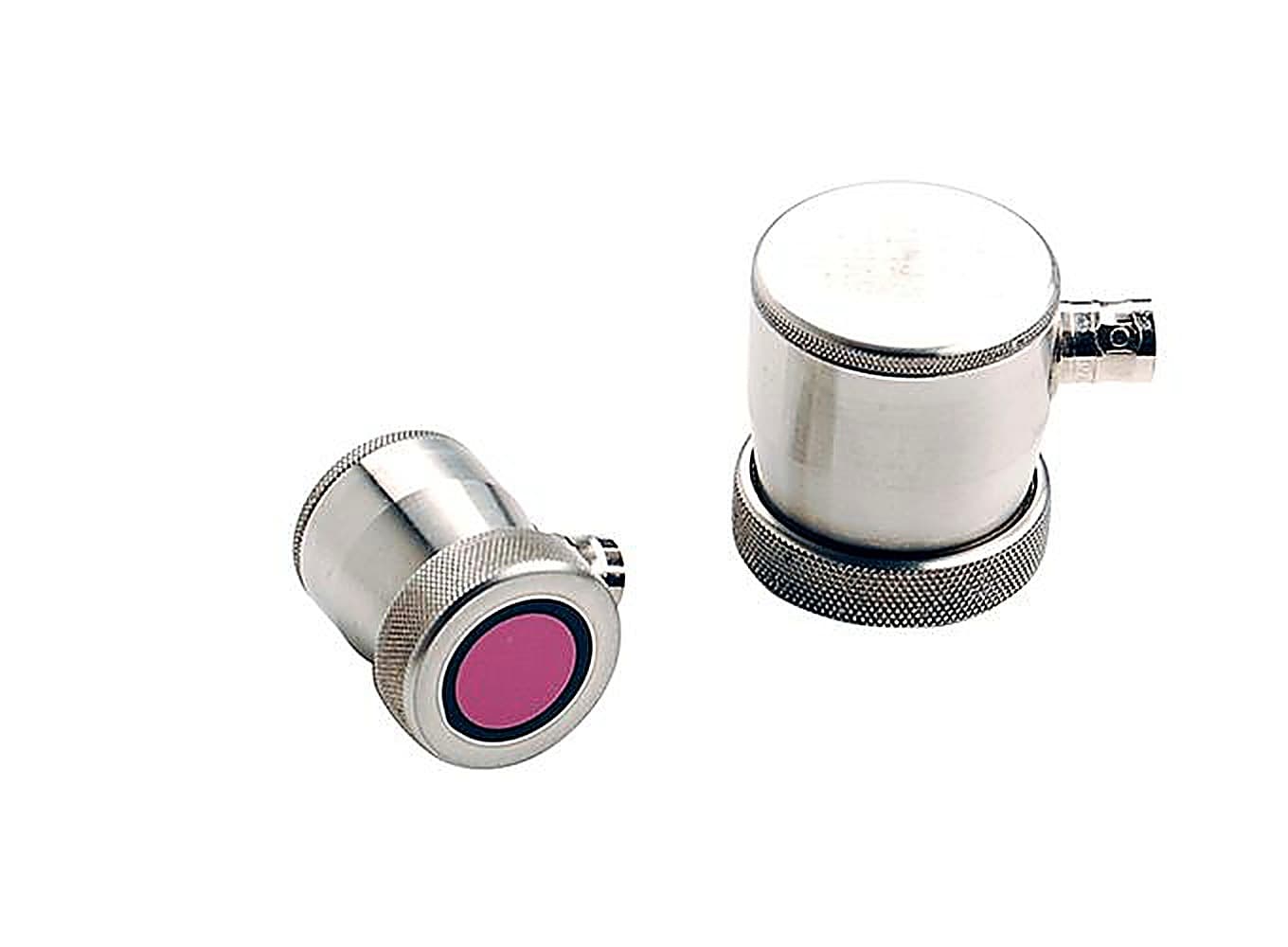

Dakota Single Element Transducers

Product Description

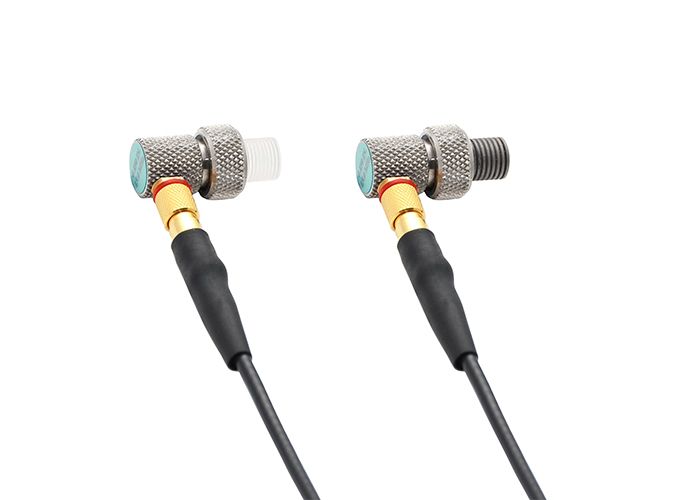

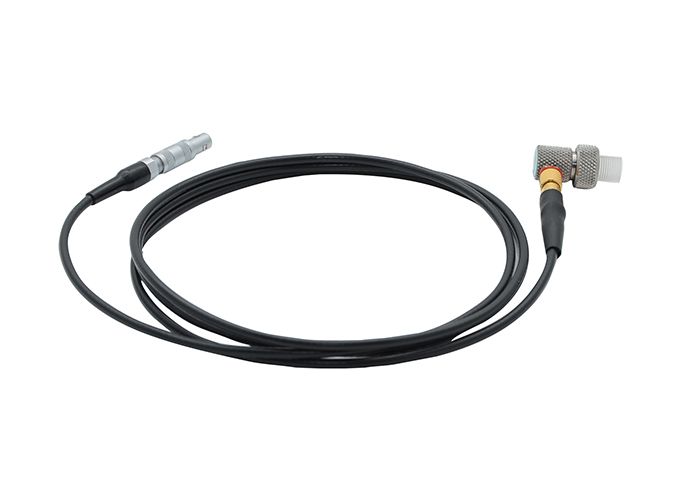

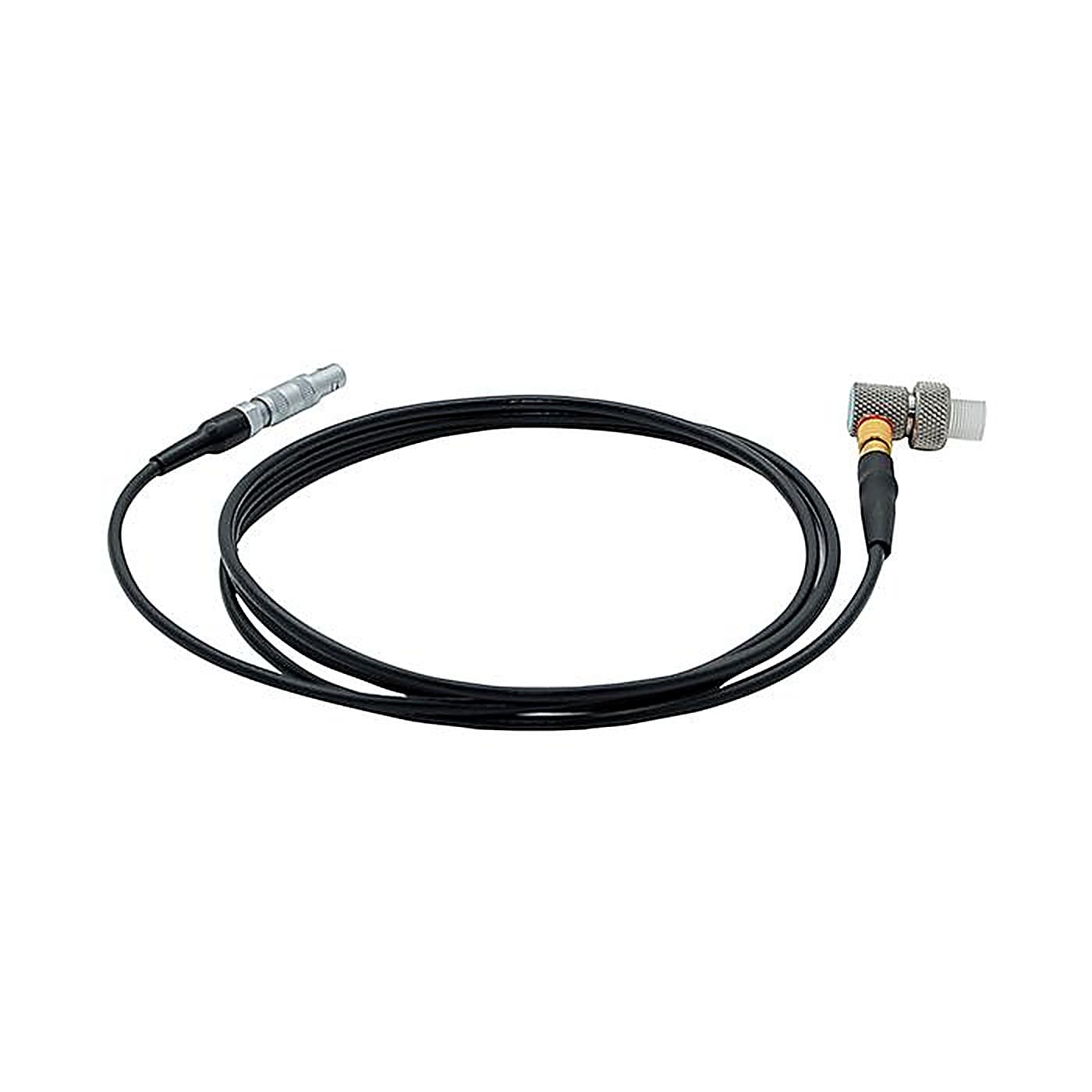

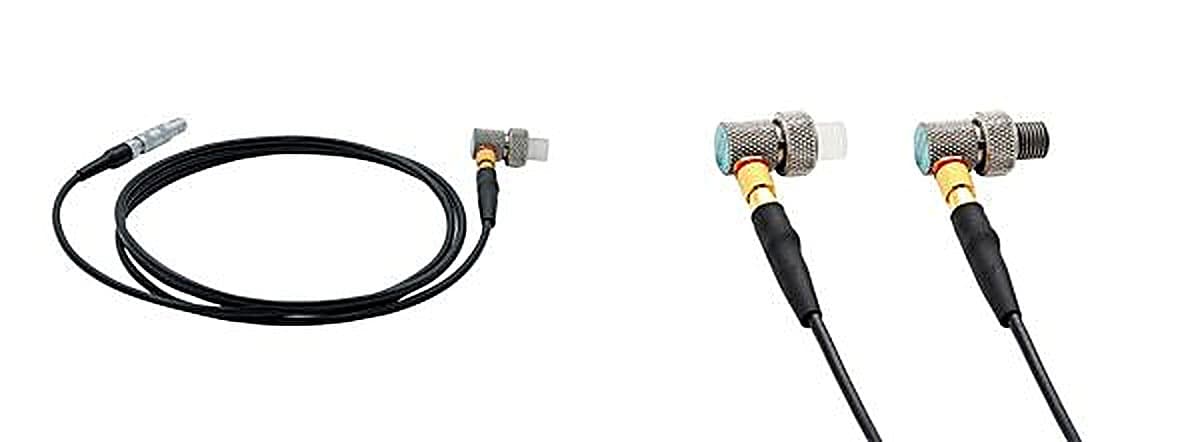

Dakota Single Element Transducers are designed for the thickness measurement of thin materials with precision.

A single element transducer consists of single crystal element housed in casing. The single crystal both transmits and receives the sound energy. It is common for a Single Element Transducer to be supplied with a delay-line to enable precision measurements on thinner materials.

Technical Specifications



Connector Type Suitable For
Part Number Probe Diameter Element Type Probe Characteristic Damping Microdot Lemo BNC Top Side PCX
15.00 MHz Single Element Precision Transducer
TXC15M0CM 1/4″ Single Element Delay Line Standard S ■ ■ ■
20.00 MHz Single Element Precision Transducer
TXC20M0CM 1/4″ Single Element Delay Line Standard S ■ ■ ■




Connector Type Suitable For
Part Number Probe Diameter Element Type Probe Characteristic Damping Microdot Lemo BNC Top Side PZX PMX PMX4 FX70 FX80
10.00MHz Single Element Precision Transducer
T-481-4507 3/16″ Single Element Delay Line Pencil 1/16″ Tip S ■ ■ ■ ■ ■
T-681-4507 3/16″ Single Element Delay Line Pencil 90° Right Angle S ■ ■ ■ ■ ■
15.00MHz Single Element Precision Transducer
T-581-5507 3/16″ Single Element Delay Line Pencil 1/16″ Tip S ■ ■ ■ ■ ■
T-402-5507 1/4″ Single Element Delay Line Standard S ■ ■ ■ ■ ■ ■ ■
20.00 MHz Single Element Precision Transducer
T-402-6507 1/4″ Single Element Delay Line Standard S ■ ■ ■ ■ ■ ■ ■



* S – Standard undamped transducer
Please refer to the Data Sheet for a full technical specification of Elcometer Single Element Transducers

Part Numbers

Description Part Number
10.00MHz Single Element Precision Transducer T-481-4507
10.00MHz Single Element Precision Transducer T-681-4507
15.00MHz Single Element Precision Transducer T-581-5507
15.0 MHz Single Element Transducer TXC15M0CM
20.0 MHz Single Element Transducer TXC20M0CM
15.00MHz Single Element Precision Transducer T-402-5507
20.00 MHz Single Element Precision Transducer T-402-6507
