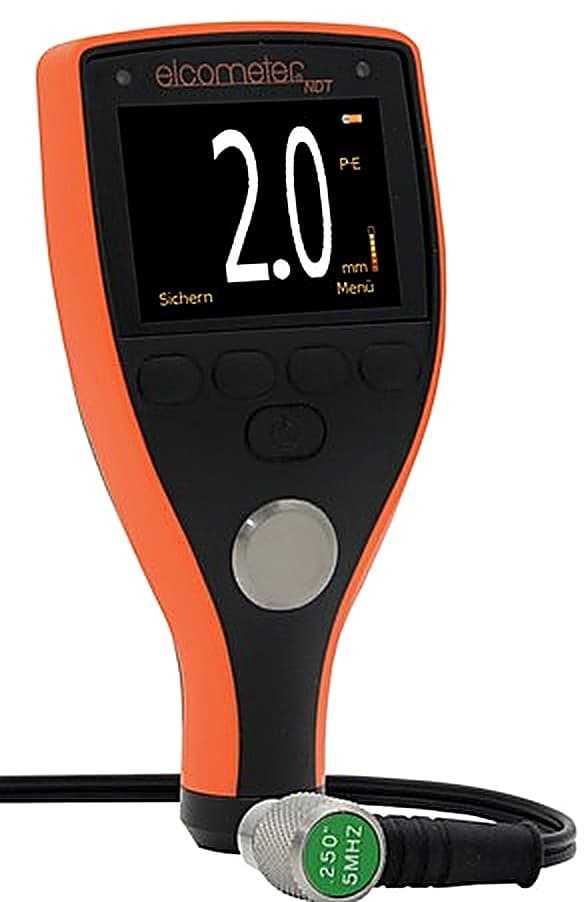

Elcometer MTG2 Ultrasonic Material Thickness Gauge
Product Description
The Elcometer MTG2 Material Thickness Gauge with automatic transducer recognition, which ensures correct probe identification even when the transducer is changed, and with a measurement rate of 4Hz (4 readings per second) and integral zero disc ensuring maximum accuracy of ±1%, makes the MTG2 ideal for taking basic thickness measurements.
The MTG2 is supplied complete with 5MHz, ¼” transducer and is pre-calibrated for measuring on steel only with a thickness range of up to 500mm in Pulsed-Echo (P-E) mode. Compatible with ElcoMaster® software, individual readings can be downloaded via USB to PC or similar device for further analysis.
Features of the Elcometer MTG2 Ultrasonic Material Thickness Gauge
- Pulsed -Echo (P-E) measurement Mode
- Pre-calibrated for measuring on steel only
- Pre-set measurement rate of 4 readings per second
- USB data output to PC or similar device
With their ergonomic, rugged design, accurate and easy to use menus in multiple languages, the Elcometer MTG (Material Thickness Gauge) range of ultrasonic thickness gauges are ideal for measuring and recording material thickness and sound-velocity on a variety of substrates, in a wide range of industrial applications.
The Elcometer MTG2 Material Thickness Gauge conforms to the following standards :
- ASTM E797
- EN 14127
- EN15317
Specifications
| MTG2 | ||
| Easy to use menu structure in multiple languages | ● | |
| Tough, impact, waterproof and dust resistant | ● | |
| equivalent to IP54 | ||
| Bright colour screen with permanent backlight | ● | |
| Scratch and solvent resistant display; 2.4″ (6cm) TFT | ● | |
| Large positive feedback buttons | ● | |
| USB power supply via PC | ● | |
| Low battery indicator | ● | |
| Ambient light sensor, with adjustable brightness | ● | |
| Emergency light | ● | |
| Tap awake from sleep | ● | |
| Gauge software updates1 via ElcoMaster TM Software | ● | |
| 2 year gauge warranty2 | ● | |
| Limits: user definable audible & visual pass/fail warnings | ||
| Measurement Mode | ||
| Pulsed Echo (P-E) | ● | |
| Measurement Rate | ||
| 4, 8, 16Hz | 4Hz | |
| Thickness Range4 | ||
| P-E: 0.63-500mm | ● | |
| Velocity Range | 1250 – 10,000m/s | |
| Measurement Accuracy5 | ±1% or ±0.1mm | |
| Measurement Units (selectable) | mm | |
| Repeatability / Stability Indicator | ● | |
| Display Mode: | ||
| Reading | ● | |
| Selectable Reading Resolution | ||
| Lo; ie 0.1mm, 10m/s | ● | |
| Calibration Options | ||
| Zero set: using the integral zero disc | ● | |
| Data Output | ||
| USB; to computer | ● | |
| Auto transducer recognition | ● | |
| Auto V-path correction | ● | |
| Battery Type | 2 x AA | |
| Battery Life (approximate) | Approx 15 hours continuous use at 1 reading per second | |
| Operating Temperature | -10 to 50°C | |
| Size (w x h x d) | 145 x 73 x 37mm | |
| Weight (including batteries, without transducer) | 210g | |
| Part Number (with Transducer)6 | MTG2-TXC | |
1 Internet connection required
2 The Elcometer MTG range is extendable within 60 days from date of purchase, free of charge to two years via www.elcometer.com
3 User selectable default setting in scan mode is 16 Hz
4 Dependent on the material being measured and the transducer being used
5 Whichever is the greater
6 5MHz 1/4″ right angle transducer supplied
Data Sheet
Standards
The Elcometer MTG2 Material Thickness Gauge conforms to the following standards :
- ASTM E797
- EN 14127
- EN15317
Transducers
| Part Number | Probe Diameter | Probe Configuration | Damping | Potted right angle | Thin Plastics | Steel | Glass | Calibration Certificate |
| 5.00 MHz Dual Element Thickness Transducer | ||||||||
| TXC5M00CP-4 | 1/4″ | Right Angle | S | ● | ● | ● | ● | ● |
All transducers are supplied with a calibration certificate.
Accessories
| Part Number | Description | Nominal | Nominal Thicknesses |
| Calibration Standard Sets | Thickness Range | ||
| T920CALSTD-SET1 | Calibration Standard Set | 2-30mm | 2, 5, 10, 15, 20, 25 & 30mm |
| T920CALSTD-SET2 | Calibration Standard Set | 40-100mm | 40, 50, 60, 70, 80, 90 & 100mm |
| T920CALSTD-HLD | Calibration Holder; for thicknesses up to 100mm | ||
| Both sets come complete with holder and calibration certificate. | |||
| Part Number | Nominal | ||
| Individual Calibration Standards | Thickness | ||
| mm | |||
| T920CALSTD-2 | 2 | ||
| T920CALSTD-5 | 5 | ||
| T920CALSTD-10 | 10 | ||
| T920CALSTD-15 | 15 | ||
| T920CALSTD-20 | 20 | ||
| T920CALSTD-25 | 25 | ||
| T920CALSTD-30 | 30 | ||
| T920CALSTD-40 | 40 | ||
| T920CALSTD-50 | 50 | ||
| T920CALSTD-60 | 60 | ||
| T920CALSTD-70 | 70 | ||
| T920CALSTD-80 | 80 | ||
| T920CALSTD-90 | 90 | ||
| T920CALSTD-100 | 100 | ||
| Part Number | Description | Volume | |
| T92015701 | Ultrasonic Couplant | 120ml | |
| T92024034-7 | Ultrasonic Couplant | 300ml | |
| T92024034-8 | Ultrasonic Couplant | 500ml | |
| T92024034-3 | Ultrasonic Couplant | 3.8l | |
| T92024034-9 | High Temperature Couplant | 60ml | |
| Transducer Adaptor | |||
| These adaptors allow single & dual element, ‘non-intelligent’ and other transducers | |||
| with lemo connectors from Elcometer NDT and other manufacturers, | |||
| to be used with the MTG & PTG product range. | |||
| Part Number | Description | ||
| T92024911 Dual Element2 | Transducer Adaptor | ||
2 This adaptor allows dual element, ‘non-intelligent’ and other transducers with Lemo Connectors from Elcometer and other manufacturers to be used with the MTG product range.
Instruction Manual
Video
How to measure steel thickness using an ultrasonic thickness gauge…
Determining the thickness of materials where you only have access to one side, such as tank walls or pipelines for example, is typically achieved through ultrasonic thickness measurement, using an ultrasonic thickness gauge, which is a form of non-destructive testing or NDT Inspection.
The Elcometer MTG2 Ultrasonic Thickness Gauge has been designed to provide fast, accurate material thickness measurements of uncoated steel substrates – ideal for monitoring corrosion and erosion before painting.
This video is a basic introduction to the Elcometer MTG2, and ultrasonic thickness measurement using an ultrasonic NDT gauge.
Using an ultrasonic pulse to determine the thickness of the material, the Elcometer MTG2 ultrasonic material thickness gauge provides instant and reliable steel thickness measurements from just one side of an uncoated steel substrate.
Using a small amount of ultrasonic couplant, you press the dual element transducer flat against the surface.
When the transducer is placed correctly on the material, the reading stability indicator shows how strong the ultrasonic signal is – a full bar means a strong signal; ensuring accurate, reliable
measurements.
With a pre-set measurement rate of 4 readings per second (4Hz), the Elcometer MTG2 can measure uncoated steel up to 500mm (20”) thick, with a maximum accuracy of ±1% across its range.
Pre-calibrated specifically for steel, the Elcometer MTG2 ultrasonic thickness gauge is ready for use straight out of the box to measure steel thickness. Simply zero-point calibrate using the integrated zero disc, to ensure accuracy at all times.
You can connect the Elcometer MTG2 ultrasonic material thickness gauge to a computer using a USB cable, and you can transfer your readings live to ElcoMaster, Elcometer’s free software for PC – along with all of your other inspection data; such as surface profile or surface cleanliness readings, among others – to generate professional inspection reports, instantly.
So you can now measure steel thickness using an ultrasonic thickness gauge, but what if you want to non-destructively measure the thickness of a material that’s already been coated? Or measure materials other than steel, such as aluminium, copper, plastics, porcelain or epoxies for example?

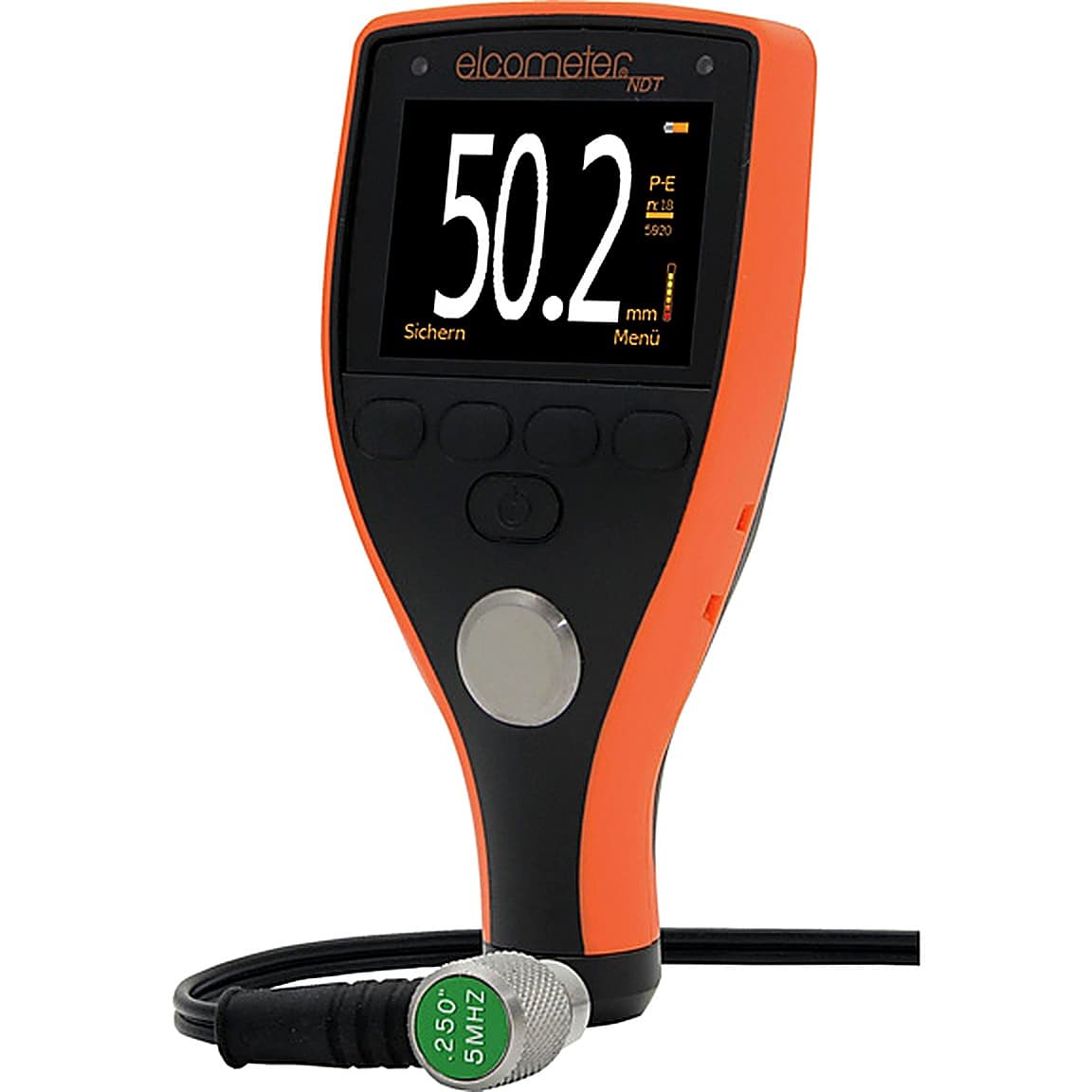

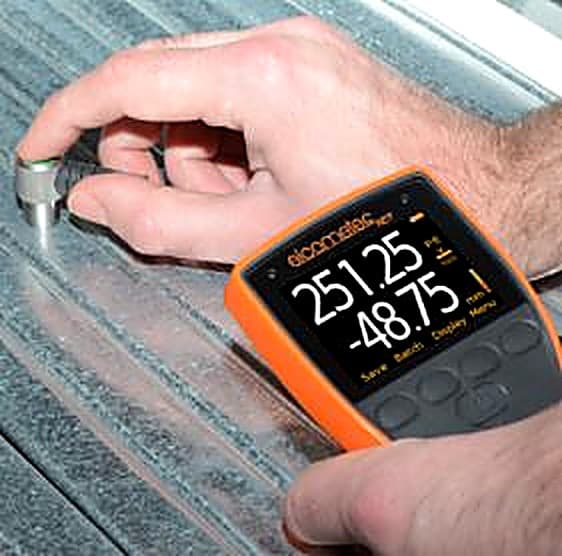

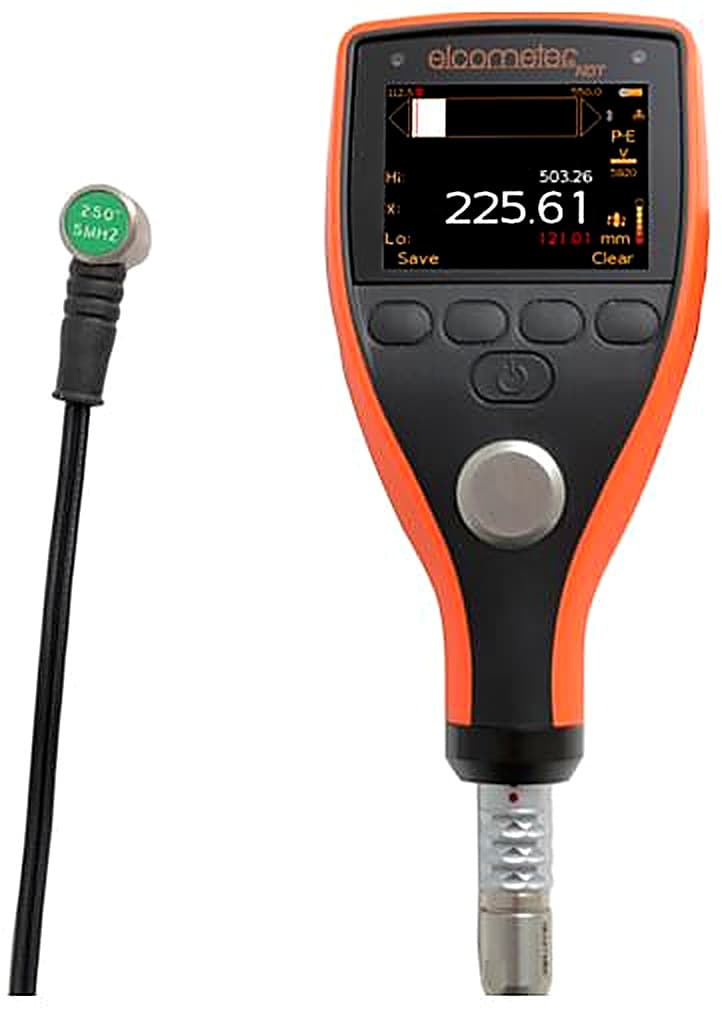

That’s where the Elcometer MTG4, MTG6, and MTG8 Ultrasonic Material Thickness Gauges come in.
