Product Description

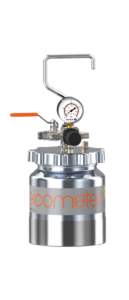

The Elcometer P2-5T Pressure Pot has a 2.5 Litre tank capacity and is suitable for use with solvent and water-based paints.
Key Features:
The Elcometer P2-5T Pressure Pot has a 2.5 Litre tank capacity and is suitable for use with solvent and water-based paints. |
Specifications
| Tank Capacity | 2.5l |
| Agitator Type | None |
| Product Outlet Position | Top |
| Construction Material | Aluminium body & lid |
| Working Pressure (Max) | 3.44bar |
| Air Inlet Connection | 6.35mm BSP Male |
| Product Outlet Connection | 9.52mm Male BSP |
| Air Pressure Gauge | 0 – 6bar |
| Operating Temperature | 0 – 50°C |
| Dimensions (with handle) | 165 x 165 x 385mm |
| Weight (Empty) | 1.824kg |
1. Maximum air inlet pressure
2. Supplied as standard.
Package Selector
| Mixer Type | Spray Gun | Transfer Efficiency | |||||||||||||
| Wheel Mounted | Manual | Rotary | Oscillating | Combined Air & Product Hose | Air Hose | Product | Sagola X 4100 | Sagola Premium 419 | Sagola Classic Stucco | Aircap | Needle & Nozzle | Conventional | HVLP | High Efficiency Transfer | |
| ELCOMETER P2-5T | |||||||||||||||
| 2.5L Aluminium Pressure Pot | |||||||||||||||
| PP2-5T-X41-XT01B10 | – | – | – | 1.8m | – | ▲ | – | – | XT01B | 1 | – | ▲ | |||
| PP2-5T-X41-XT01B14 | – | – | – | 1.8m | – | ▲ | – | – | XT01B | 1.4 | – | ▲ | |||
1. Combined Anti-Static Air & Product Hose with Protective Cover for Air Spray (Low Pressure) Systems. Air Hose (Blue): Anti-Static, EDPM with textile reinforcement, ID: 8mm x OD: 15mm with 1/4″ Female Connection. Product Hose (White): Nylon (Polyamide PA12), ID: 6mm x OD: 8mm with 3/8″ Female Adaptor Protective Cover (Black): Polyester.
2. Combined Anti-Static Air Hose (ID: 8mm with 1/4″ Female Connection) & Product Hose (ID: 10mm with 1/4″ Female Connection) with Protective Cover for Adhesive Products.
Data Sheet
Standards
Compliance:
CE, UKCA
ATEX 2 II GX
Accessories
| Anti-static Air Hose – 6m (19.7ft) Ø 8x15mm | ||
 |
Part Number: | 56414024 |
| Anti-static Air Hose – 11m (36ft) Ø 8x15mm | ||
|
Part Number: | 56414025 |
| Anti-static Air Hose – 16m (52.5ft) Ø 8x15mm | ||
|
Part Number: | 56414027 |
| Anti-static Air Hose – 26m (85.3ft) Ø 8x15mm | ||
|
Part Number: | 56414026 |

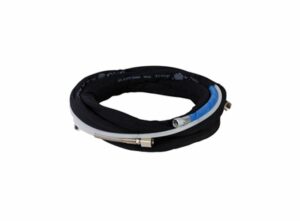

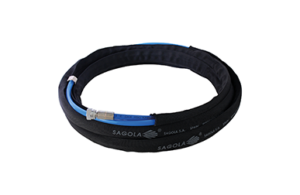

| 1.8m (5.9ft) Covered Anti-Static Air & Nylon Product Hose | ||
 |
Part Number: | PT56414130 |
| 5m (16.4ft) Covered Anti-Static Air & Nylon Product Hose | ||
|
Part Number: | PT56414039 |
| 7.5m (24.6ft) Covered Anti-Static Air & Nylon Product Hose | ||
|
Part Number: | PT56414044 |
| 10m (32.8ft) Covered Anti-Static Air & Nylon Product Hose | ||
|
Part Number: | PT56414040 |
| 15m (49.2ft) Covered Anti-Static Air & Nylon Product Hose | ||
|
Part Number: | PT56414041 |
| 20m (65.6ft) Covered Anti-Static Air & Nylon Product Hose | ||
|
Part Number: | PT56414042 |
| Anti-static Air Hose – 21m (68.9ft) Ø 8x15mm | ||
|
Part Number: | PT56414028 |

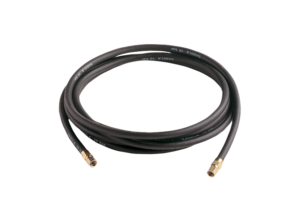

| 6m (19.7ft) Thermo Rubber Product Hose with 3/8″ Female Connection | ||
 |
Part Number: | PT56414116 |
| 11m (36ft) Thermo Rubber Product Hose with 3/8″ Female Connection | ||
|
Part Number: | PT56414117 |
| 16m (52.5ft) Thermo Rubber Product Hose with 3/8″ Female Connection | ||
|
Part Number: | PT56414115 |

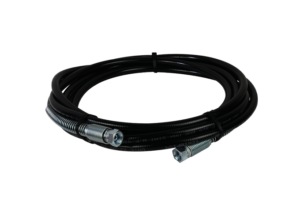

| 10m (36.1 ft) Product Hose (ID: 8mm x OD: 16mm) with 3/8″ Female Swivel Coupling Connections | ||
 |
Part Number: | PT56414112 |
| 5m (16.4ft) Product Hose (ID: 19mm x OD: 23mm) with 3/4″ Female Swivel Coupling Connections | ||
|
Part Number: | PT56414111 |
| 15m (49.2ft) Product Hose (ID: 19mm x OD: 23mm) with 3/4″ Female Swivel Coupling Connections | ||
|
Part Number: | PT56414113 |
| 21m (68.9ft) Thermo Rubber, ID: 8mm x OD: 16mm with 3/8″ Female Connection | ||
 |
Part Number: | PT56414118 |
| 26m (85.3ft) Thermo Rubber, ID: 8mm x OD: 16mm with 3/8″ Female Connection | ||
|
Part Number: | PT56414119 |
