Product Description

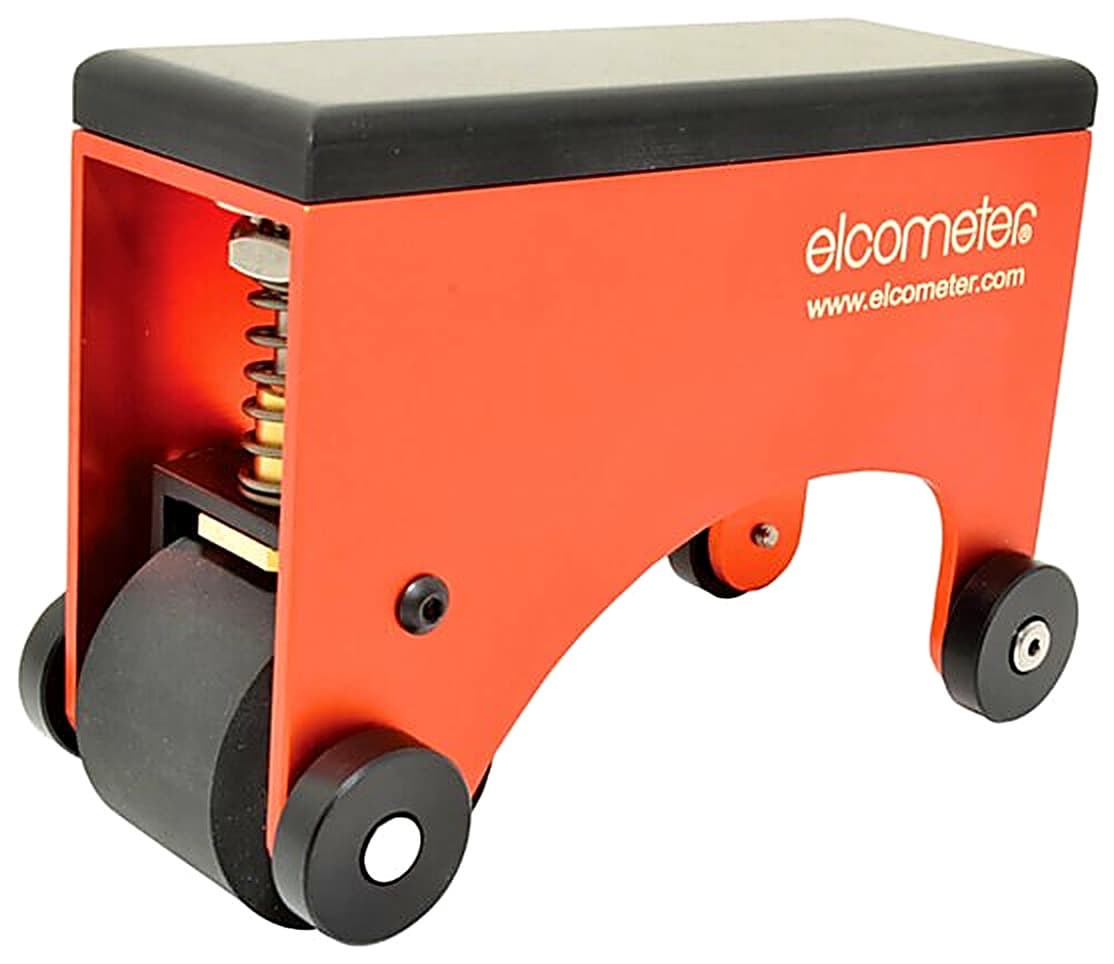

Elcometer 145 Dust Tape Roller

The Elcometer 145 is used in conjunction with the Elcometer 142 Dust Tape Test kit, to assess the quantity and size of dust particles on surfaces prepared for painting. The Dust Tape Roller presses the Elcometer 142 Dust Tape to the surface using a controlled constant force as required by BS EN ISO 8502-3 (BS 7079-B3:1993).

It removes the subjective nature of a person trying to apply an even force to the tape and will result in a more objective result with better reproducibility and repeatability from test to test.



Specifications

Elcometer 145 Dust Tape Roller – Specifications

Part Number Description
E145—-1 Elcometer 145 Dust Tape Roller
Load Exerted 39.2 to 49.0 N, when spring fully depressed
Dimensions 160 x 70 x 110mm
Weight 615g

Data Sheet

Elcometer 145 Dust Tape Roller – Data Sheet

Elcometer 145 Dust Tape Roller – Data Sheet

Instruction Manual

Elcometer 145 Dust Tape Roller – Instruction Manual

Elcometer 145 Dust Tape Roller – Instruction Manual
