Product Description

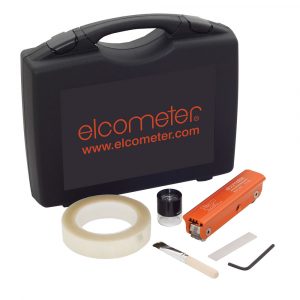

Elcometer-1542-New-Cross-Hatch-Adhesion-Tester

The Elcometer 1542 Cross Hatch Adhesion Tester is a simple but effective tester to determine the adhesion of coatings. This instrument is ideal for coatings on flat surfaces and is available with one of three different spacings:

  • 1mm spacing – for coating thickness <60µm
  • 2mm spacing – for coating thickness <125µm
  • 3mm spacing – for coating thickness <250µm

Each gauge can be supplied separately or combined in a kit with a standardised brush and x10 magnifier.

  • Efficient cross hatch cutter with 8 cutting faces
  • Anodised aluminium handle with a wheel for stable operation, ideal for test panels
  • Supplied with an adjustment gauge for accurate positioning of the cutter face

The Elcometer 1542 Cross Hatch Adhesion Tester can be used in accordance with:

  • AS 3894.9
  • AS 1580.408.4
  • ASTM D 3359-B
  • BS 3900-E6
  • ECCA T6
  • EN 13523-6
  • ISO 2409
  • ISO 16276-2
  • JIS K 5600-5-6
  • NF T30-038

Standards not in bold have been superseded but are still recognised in some industries





Specifications

Elcometer 1542 Cross Hatch Adhesion Tester – Specifications

Part Number Description Cutter Type Coating Thickness Certificate
K1542M001 Elcometer 1542 Basic Kit 6 x 1mm 0 – 60μm ο
K1542M002 Elcometer 1542 Basic Kit 6 x 2mm 50 -125μm ο
K1542M003 Elcometer 1542 Basic Kit 6 x 3mm 121 – 250μm ο
K1542M001-I Elcometer 1542 Full Kit – ISO Tape 6 x 1mm 0 – 60μm ο
K1542M002-I Elcometer 1542 Full Kit – ISO Tape 6 x 2mm 50 -125μm ο
K1542M003-I Elcometer 1542 Full Kit – ISO Tape 6 x 3mm 121 – 250μm ο
K1542M001-A Elcometer 1542 Full Kit – ASTM Tape 6 x 1mm 0 – 60μm ο
K1542M002-A Elcometer 1542 Full Kit – ASTM Tape 6 x 2mm 50 – 125μm ο
K1542M204-I Elcometer 1542 Advanced Kit – ISO Tape 6 x 1, 2, 3mm 0 – 250μm ο
K1542M204-A Elcometer 1542 Advanced Kit – ASTM Tape 6 x 1, 2, 3mm 0 – 250μm ο



Elcometer 1542 Cross Hatch Adhesion Tester Packing List:

Basic Kit:

  • 1 x Elcometer 1542 Cross Hatch Tester1
  • Cutter angle adjustment tool
  • Hexagonal wrench
  • Transit case
  • User guide

Full Kit:

  • Basic Kit plus
  • Brush
  • Magnifier (x6)
  • ISO or ASTM adhesive tape

Advanced Kit:

  • 3 x Elcometer 1542 Cross Hatch Testers (1, 2 & 3mm)
  • Cutter angle adjustment tool
  • Hexagonal wrench
  • Brush
  • Magnifier (x6)
  • ISO or ASTM adhesive tape
  • Transit case
  • User guide

1 6 x 1mm, 6 x 2mm or 6 x 3mm cutter dependent on Part Number

Data Sheet

Elcometer 1542 Cross Hatch Adhesion Tester – Data Sheet

Elcometer 1542 Cross Hatch Adhesion Tester Data Sheet

Standards

Elcometer 1542 Cross Hatch Adhesion Tester – Standards

The Elcometer 1542 Cross Hatch Adhesion Tester can be used in accordance with the following Standards:

  • AS 3894.9
  • AS 1580.408.4
  • ASTM D 3359-B
  • BS 3900-E6
  • ECCA T6
  • EN 13523-6
  • ISO 2409
  • ISO 16276-2
  • JIS K 5600-5-6
  • NF T30-038

Standards not in bold have been superseded but are still recognised in some industries

Accessories

Elcometer 1542 Cross Hatch Adhesion Tester – Accessories

Part Number Description Methods Certificate
ISO ASTM AS
KT1542P001 6 x 1mm Cross Hatch Cutter Wheel • • ο
KT1542P002 6 x 2mm Cross Hatch Cutter Wheel • • • ο
KT1542P003 6 x 3mm Cross Hatch Cutter Wheel • ο
K0001539M001 Adhesive Tape (1 roll) ASTM D 3359
T9999358-1 Adhesive Tape (1 roll) ISO 2409
T9998894- Adhesive Tape (2 rolls) ASTM D 3359
T9999358-2 Adhesive Tape (2 rolls) ISO 2409
T10713356 Magnifier (x6)
T99913357 Cross Hatch Brush



Instruction Manual

Elcometer 1542 Cross Hatch Adhesion Tester – Instruction Manual

Elcometer 1542 Cross Hatch Adhesion Tester Instruction Manual
