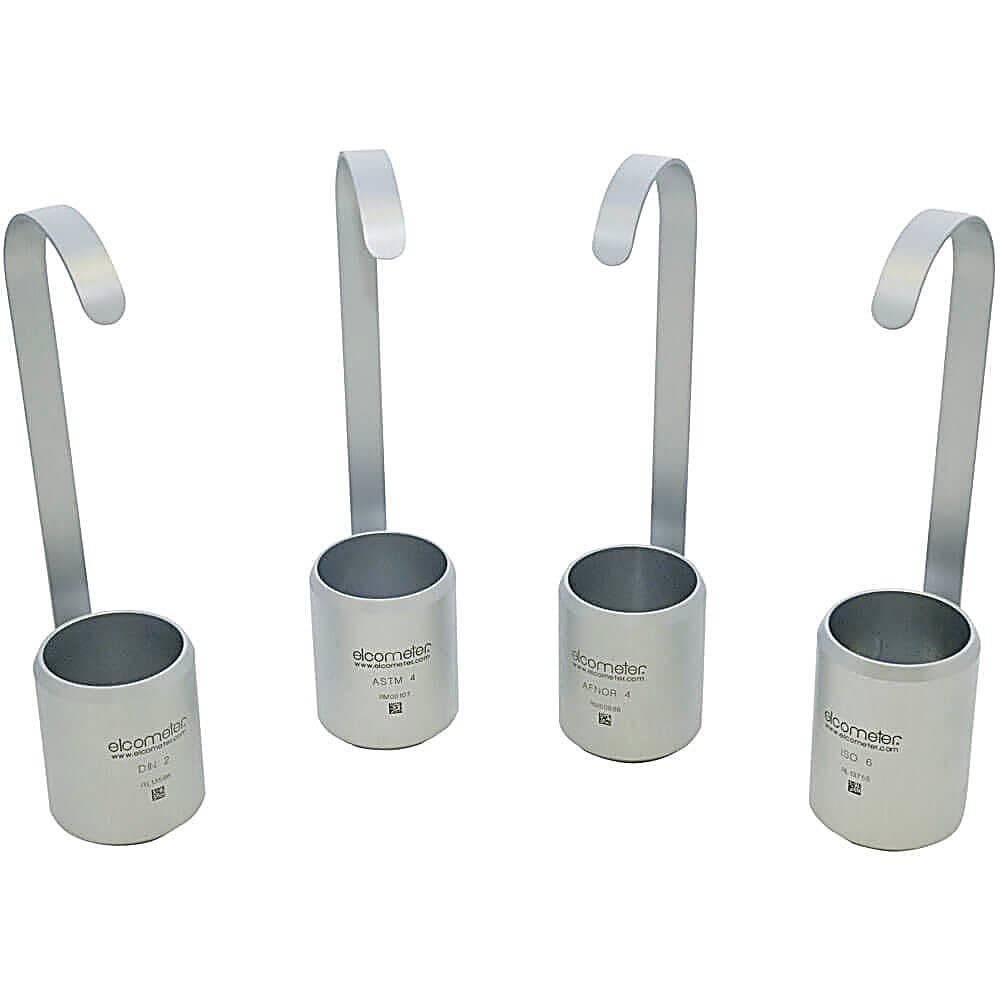

Elcometer 2434 to 2437 Frikmar Viscosity Cups with Handle

Elcometer-Viscosity-Frikmar-Dip-Cups

Thanks to its handle, the Elcometer Frikmar Dip Cups are very easy to use to perform checks on site or during the manufacturing process. It is ideal for measuring the consistency of paints, varnishes and similar products.The cup is first dipped into the product to be measured, then the contents empty through the orifice. The measured kinematic viscosity is generally expressed in seconds (s) flow time, which can be converted to Centistokes (cSt) if the Standard stipulates a conversion method.Several ranges are available, according to the Standards being used; from 7 to 1100 cSt.

Specifications

Elcometer 2434 to 2437 Frikmar Viscosity Cups with Handle – Specifications

DIN VISCOSITY DIP CUPS
Part Number Description Cup Number Orifice
Diameter
Range (cSt)1 Certificate
K0002434M001 Elcometer 2434/1 DIN Dip Cup 2 2mm
K0002434M002 Elcometer 2434/2 DIN Dip Cup 4 4mm 96-683
K0002434M003 Elcometer 2434/3 DIN Dip Cup 6 6mm
K0002434M004 Elcometer 2434/4 DIN Dip Cup 8 8mm
K0002434M001C Elcometer 2434/1 with calibration certificate 2(d) 2mm (d)
K0002434M002C Elcometer 2434/2 with calibration certificate 4(e) 4mm 96-683 (e)
K0002434M003C Elcometer 2434/3 with calibration certificate 6(d) 6mm (d)
K0002434M004C Elcometer 2434/4 with calibration certificate 8(d) 8mm (d)

STANDARDS:
DIN 53211 (Cup 4 only)

FORD/ASTM VISCOSITY DIP CUPS
Part Number Description Cup Number Orifice
Diameter
Range (cSt)1 Certificate
K0002435M001 Elcometer 2435/1 FORD/ASTM Dip Cup 4 4.12mm 70-370
K0002435M001C Elcometer 2435/1 with calibration certificate 4(e) 4.12mm 70-370 (e)

STANDARDS:
ASTM D 1200, ASTM D 5125

ISO VISCOSITY DIP CUPS
Part Number Description Cup Number Orifice
Diameter
Range (cSt)1 Certificate
K0002437M002 Elcometer 2437/2 ISO Dip Cup 3 3mm 7-42
K0002437M003 Elcometer 2437/3 ISO Dip Cup 4 4mm 34-135
K0002437M006 Elcometer 2437/6 ISO Dip Cup 5 5mm 91-326
K0002437M004 Elcometer 2437/4 ISO Dip Cup 6 6mm 188-684
K0002437M005 Elcometer 2437/5 ISO Dip Cup 8 8mm
K0002437M002C Elcometer 2437/2 with calibration certificate 3(e) 3mm 7-42 (e)
K0002437M003C Elcometer 2437/3 with calibration certificate 4(e) 4mm 34-135 (e)
K0002437M006C Elcometer 2437/6 with calibration certificate 5(e) 5mm 91-326 (e)
K0002437M004C Elcometer 2437/4 with calibration certificate 6(e) 6mm 188-684 (e)
K0002437M005C Elcometer 2437/5 with calibration certificate 8(d) 8mm (d)

STANDARDS:
AS/NZS 1580.214.6:1995, ISO 2431

AFNOR VISCOSITY DIP CUPS
Part Number Description Cup Number Orifice
Diameter
Range (cSt)1 Certificate
K0002436M001 Elcometer 2436/1 AFNOR Dip Cup 4 3.99mm 50-1100
K0002436M001C Elcometer 2436/1 with calibration certificate 4(d) 3.99mm 50-1100 (d)

STANDARDS:
NF T30-014

1 For information only
(d) Dimensional certificate
(e) Efflux Time Certificate
• Calibration Certificate supplied as standard
◊ Batch Calibration Certificate supplied as standard

Data Sheet

Elcometer 2434 to 2437 Frikmar Viscosity Cups with Handle – Data Sheet

Elcometer 2434 to 2437 Frikmar Viscosity Cups with Handle Data Sheet

Standards

Elcometer 2434 to 2437 Frikmar Viscosity Cups with Handle – Standards

The DIN Frikmar Viscosity Cups can be used in accordance with:

  • DIN 53211 (Cup 4 only)

The Ford/ASTM Viscosity Dip Cups can be used in accordance with:

  • ASTM D 1200
  • ASTM D 5125

The ISO Viscosity Dip Cups can be used in accordance with:

  • AS/NZS 1580.214.6:1995
  • ISO 2431

The AFNOR Viscosity Dip Cups can be used in accordance with:

  • NF T30-014

Standards in not in bold have been superseded but are still recognised in some industries.

Accessories

Elcometer 2434 to 2437 Frikmar Viscosity Cups with Handle – Accessories

KT002400N001 Stand with Bubble Level for Cup and Glass Draw Plate
KT002400P001 Bubble Level for Viscosity Cup
KT002400P999 Viscosity Glass Draw Plate
KT002400N002 Double-walled Stand with Thermojacket
7300 Stopwatch K0007300M201 Elcometer 7300 High precision stopwatch.
Measuring intervals: 1/100 second for 30 minutes and 1 second for 24 hours.
Time calendar display, 12/24 hour mode.
KT002400N003 Elcometer 2400 Conversion Disc allowing viscosity (cSt) and flow times of different cups to be compared.
Front: No.4 cups according to AFNOR, BS, NF, ASTM, DIN, Zahn 2
Back: No. 3-4-5-6 cups according to ISO and Zahn 3
G212—-1 Elcometer 212/1 Digital Pocket Thermometer (°C) with Needle/Liquid Probe
G213—-2 Elcometer 213/2 Digital Thermometer (°C/°F)
T1164441- Spirit Thermometer in °C
T9996390- Elcometer 213/2 Liquid Probe
