Elcometer 3525 & 3530 Adjustable Baker Film Applicators

Product Description


The Elcometer 3525 & 3530 Adjustable Baker Film Applicators are manufactured using the very latest machining techniques to ensure outstanding accuracy.
These Baker Film Applicators allow user to select the specific gap size required. The coating thickness gap size can be set to produce either a uniform film or film wedge. Each film applicator has thickness markings down each side for fast setup.

Available in two gap size ranges and a number of film widths, these stainless steel applicators can be used manually or with the Elcometer 4340 Motorised Film Applicator.

The Elcometer 3525 & 3530 Adjustable Baker Film Applicators can be used in accordance with:
• ASTM D 823-E

Specifications

Elcometer 3525 3530 Adjustable Baker Film Applicators – Specifications

Part Number Model Film Thickness µm Film Width* mm Certificate
K0003525M001 Elcometer 3525/1 0-100 50 ο
K0003525M002 Elcometer 3525/2 0-100 75 ο
K0003525M003 Elcometer 3525/3 0-100 100 ο
K0003525M004 Elcometer 3525/4 0-100 150 ο
K0003525M005 Elcometer 3525/5 0-100 200 ο
K0003525M006 Elcometer 3525/6 0-100 250 ο
K0003530M001 Elcometer 3530/1 0-250 50 ο
K0003530M002 Elcometer 3530/2 0-250 75 ο
K0003530M003 Elcometer 3530/3 0-250 100 ο
K0003530M004 Elcometer 3530/4 0-250 150 ο
K0003530M005 Elcometer 3530/5 0-250 200 ο
K0003530M006 Elcometer 3530/6 0-250 250 ο

* Add 30mm to the Film Width to calculate the total width of the applicator
ο Optional Calibration Certificate available

Data Sheet

Elcometer 3525 3530 Adjustable Baker Film Applicators – Data Sheet

Elcometer 3525 3530 Adjustable Baker Film Applicators Data Sheet


Standards

Elcometer 3525 3530 Adjustable Baker Film Applicators – Standards

The Elcometer 3525 & 3530 Adjustable Baker Film Applicators can be used in accordance with:
• ASTM D 823-E

Instruction Manual

Elcometer 3525 3530 Adjustable Baker Film Applicators – Instruction Manual

Elcometer 3525 3530 Adjustable Baker Film Applicators – Instruction Manual

Video

Video

Elcometer 3508 Elcometer 3560 Multiple Gap Applicator – 4 gaps with reservoir – Video

The Differences Between Film Applicators

Testing the properties of products such as paints, varnishes, cosmetics, or glues for example; is an important part of their development. In order to test them, consistent and reproducible samples need to be made in order to undertake fair, accurate, and comparable tests. This is where film applicators and spiral bar coaters come in.

In this video, we’re going to show you each applicator, how they work, and the sort of applications they’re designed for. Unless otherwise stated, all of the applicators we are about to show you can either be used manually or with the Elcometer 4340 Automatic Film Applicator; and if you want to find out more about the Elcometer 4340, make sure you watch our separate video on that too.

Contents
0:00 – Introduction to Film Applicators
1:15 – Baker Film Applicators
3:30 – Bird-Type Applicators
4:08 – Spiral Bar Coaters
5:38 – Reservoir Applicators
7:27 – Micrometric Applicators
8:59 – Sag Testing

Whether using manually, or with the Elcometer 4340 Automatic Film Applicator, film applicators and spiral bar coaters are designed to help you create reproducible films of a defined thickness. Elcometer has a wide range of applicators and bar coaters available, perfect for creating films with a variety of products.

In this video we will cover:

• Baker Film Applicators
Elcometer 3520 Baker Film Applicators
– Elcometer 3525 & 3530 Adjustable Baker Film Applicators

• Bird-Type Applicators

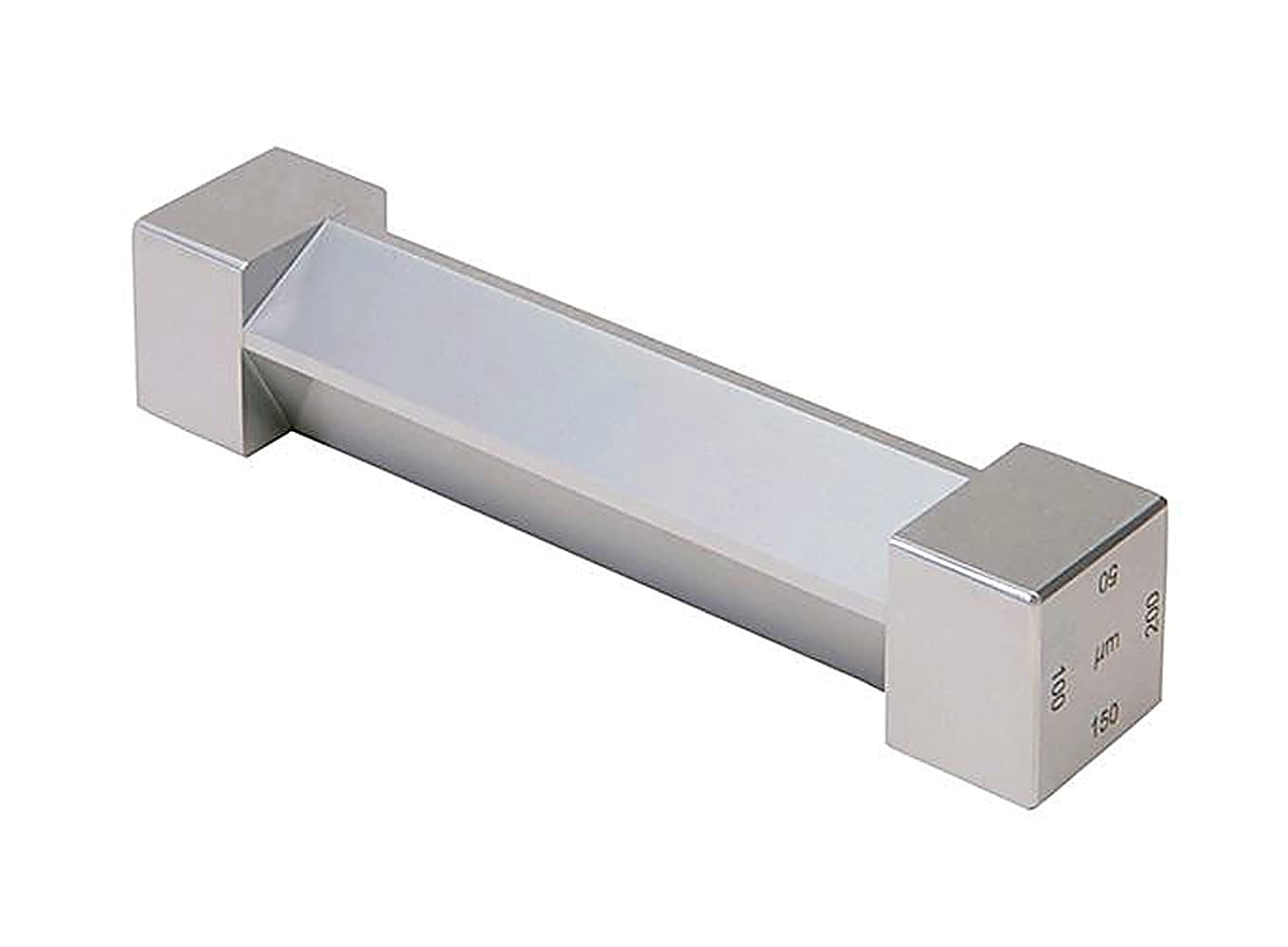

Elcometer 3550 Single Sided & Elcometer 3540 Four Sided Film Applicators

• Spiral Bar Coaters

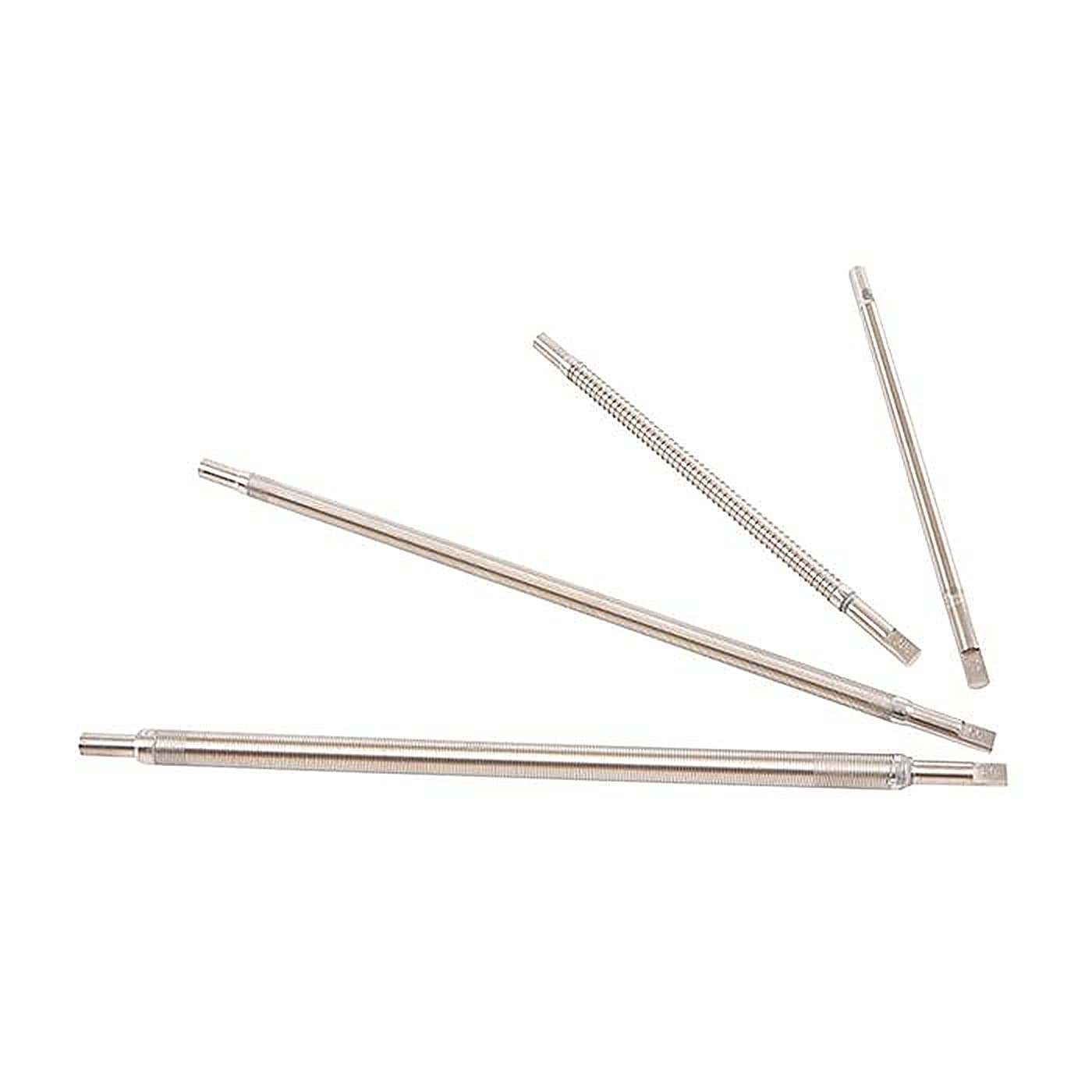

Elcometer 4360 & 4361 Spiral Bar Coaters

• Reservoir Applicators
Elcometer 3508 & 3560 4 Gap Applicators with Reservoir
Elcometer 3505 Cube Applicators

• Micrometric Applicators
Elcometer 3570 Micrometric Film Applicator
Elcometer 3580 Casting Knife Film Applicator

• Sag Testing

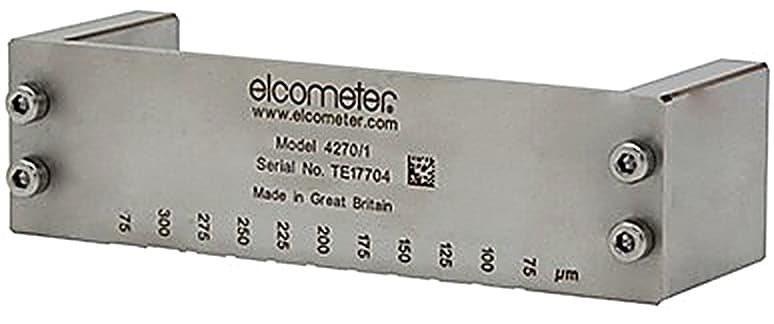

Elcometer 4270 Sag Tester
