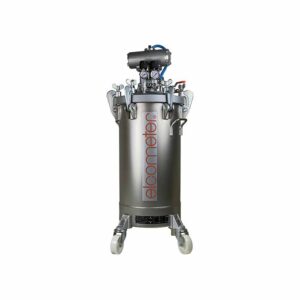

Elcometer 653 Stainless Steel Pressure Tank
Product Description
The Elcometer 653 Stainless Steel Pressure Tank has a 50 Litre tank capacity and is suitable for use with solvent and water-based paints.
- Suitable for solvent and water-based paints.
- Body and lid in stainless steel.
- Upper outlet connection.
- Double, high precision, robust pressure regulator with discharge valve ideal for two spray guns.
- Stainless steel 50L interchangeable tank.
- Three agitator options:
- Manual
- Pneumatic Rotary – For products which need to be continuously stirred to keep the mixture homogeneous
- Pneumatic Oscillating – Makes alternate oscillating movements through 180° for products that contain solid particles and need constant mixing
- Wheeled version available.
Compliance: ATEX CE II 2G T60ºC X, Certificate No. AP 1035
Key Features
Pressure Pots Explained
1. Tank body
2. Lid
3. Fluid outlet ball valve
4. Manual mixer handle
5. Mixer blade
6. Lid clamp(s)
7. Pressure relief valve
8. Gun pressure regulator
9. Pressure pot regulator
10. Air inlet
11. Interchangeable tank liner
Specifications
| Tank Capacity | 50 litre |
| Maximum Inlet Pressure | 4bar |
| Air Inlet Coupling | 6.35mm Male BSP |
| Product Outlet Connection | 9.52mm Male BSP |
| Air Pressure Gauge | 0 – 8bar |
| Product Pressure Gauge | 0 – 4bar |
| Operating Temperature | 0-50°C |
| Dimensions (with agitator) | 365 x 365 x 1028mm |
| Weight | 45kg |
| Packing List | Elcometer 653 Pressure Tank with 50 litre Stainless Steel Interchangeable Tank supplied with choice of manual, pneumatic rotary or oscillating agitator. |
Data Sheet
Elcometer 653 Stainless Steel Pressure Tank – Data Sheet
Elcometer-653-Stainless-Steel-Pressure-Tank Data Sheet
Part Numbers
 |
Elcometer 653 Stainless Steel Pressure Tank with Manual Agitator; 50L |
| Tank Capacity: 50l | |
| Agitator Type: Manual | |
| Tank Type: No Wheels | |
| Part Number : PP653SS-MA | |
 |
Elcometer 653 Stainless Steel Pressure Tank with Rotary Agitator; 50L |
| Tank Capacity: 50l | |
| Agitator Type: Pneumatic Rotary Agitator | |
| Tank Type: With wheels | |
| Part Number : PP653SS-RA | |
 |
Elcometer 653 Stainless Steel Pressure Tank with Oscillating Agitator; 50L |
| Tank Capacity: 50l | |
| Agitator Type: Alternative Agitator | |
| Tank Type: With wheels | |
| Part Number : PP653SS-SA | |
Accessories
| 1.8m Covered Anti-Static Air & Nylon Product Hose | ||
 |
Part Number: | PT56414130 |
| 5m Covered Anti-Static Air & Nylon Product Hose | ||
|
|
Part Number: | PT56414039 |
| 7.5m Covered Anti-Static Air & Nylon Product Hose | ||
|
|
Part Number: | PT56414044 |
| 10m Covered Anti-Static Air & Nylon Product Hose | ||
|
|
Part Number: | PT56414040 |
| 15m Covered Anti-Static Air & Nylon Product Hose | ||
|
|
Part Number: | PT56414041 |
| 20m Covered Anti-Static Air & Nylon Product Hose | ||
|
|
Part Number: | PT56414042 |
| Sagola 446 Pneumatic Rotary Motor | ||
 |
Part Number: | PT10510101 |
| Sagola 463 Pneumatic Alternative Motor | ||
 |
Part Number: | PT10510201 |
| 50L Interchangeable Tank | ||
 |
Part Number: | PT52411609 |
| Sagola 464 Rotary Agitator | ||
 |
Part Number: | PT10520101 |
| Sagola 471 Oscillating Agitator | ||
 |
Part Number: | PT10520201 |
