Specifications

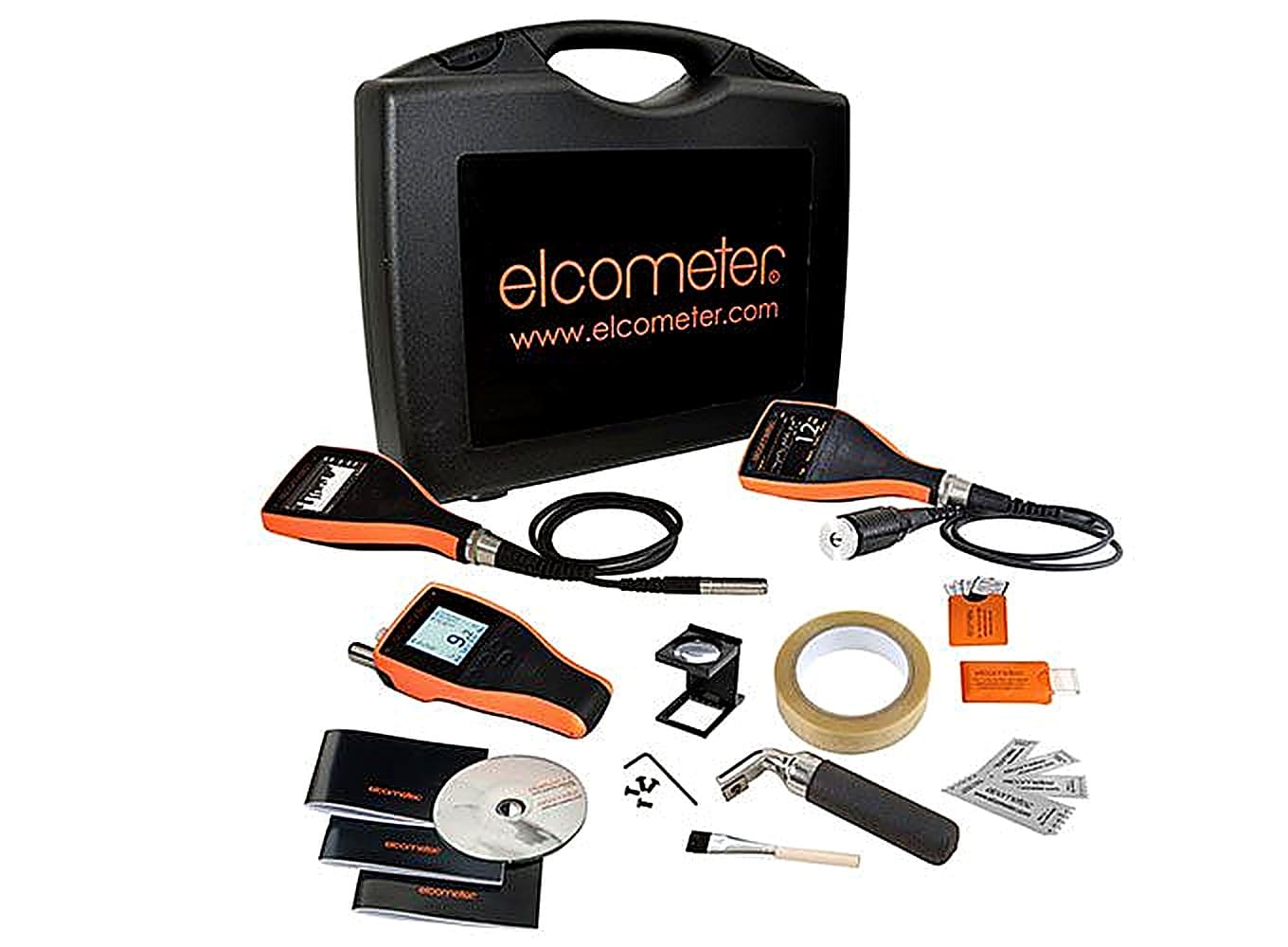

Elcometer Protective Coating Inspection Kit 3

The Elcometer Protective Coatings Inspection Kit 3 provides a range of test equipment to help an inspector assess a substrate prior to the application of a coating. The Elcometer Protective Coatings Inspection Kit 3 measurement parameters include:

  • Surface profile
  • Climatic conditions
  • Coating thickness
  • Adhesion

The Elcometer Protective Coatings Inspection Kit 2 can be used in accordance with :

  • AS 1580.408.4
  • AS 2331.1.4
  • AS 3894.3-B
  • AS 3894.9
  • AS/NZS 1580.107.3
  • AS/NZS 1580.108.1
  • ASTM B 499
  • ASTM D 1186-B
  • ASTM D 1400
  • ASTM D 3359-B
  • ASTM D 4414-A
  • ASTM D 4417-C
  • ASTM D 7091
  • ASTM E 376
  • ASTM G 12
  • BS 3900-C5-6A
  • BS 3900-C5-6B
  • BS 3900-C5-7B
  • BS 3900-E6
  • BS 5411-11
  • BS 5411-3
  • BS 5599
  • BS 7079-C5
  • DIN 50981
  • DIN 50984
  • ECCA T1
  • ECCA T6
  • EN 13523-1
  • EN 13523-6
  • IMO MSC.215(82)
  • IMO MSC.244 (83)
  • ISO 1461, ISO 16276-2
  • ISO 19840
  • ISO 2063
  • ISO 2360
  • ISO 2409
  • ISO 2808-1A
  • ISO 2808-6A
  • ISO 2808-6B
  • ISO 2808-7B
  • ISO 2808-7C
  • ISO 2808-7D
  • ISO 2808-12
  • ISO 8503-5
  • JIS K 5600-5-6
  • NACE RP0287
  • NF T30-038
  • NF T30-124
  • NF T30-125
  • SS 184159
  • SSPC PA 2
  • US Navy PPI 63101-000
  • US Navy NSI 009-32

Standards not in bold have been superseded but are still recognised in some industries

Specifications

Elcometer Protective Coating Inspection Kit 3 – Specifications

Instruments included in the Elcometer Protective Coating Inspection Kit 3 :

Elcometer 224 Digital Surface Profile Gauge
Elcometer 319 Digital Dewpoint Meter
Elcometer 107 Cross Hatch Cutter

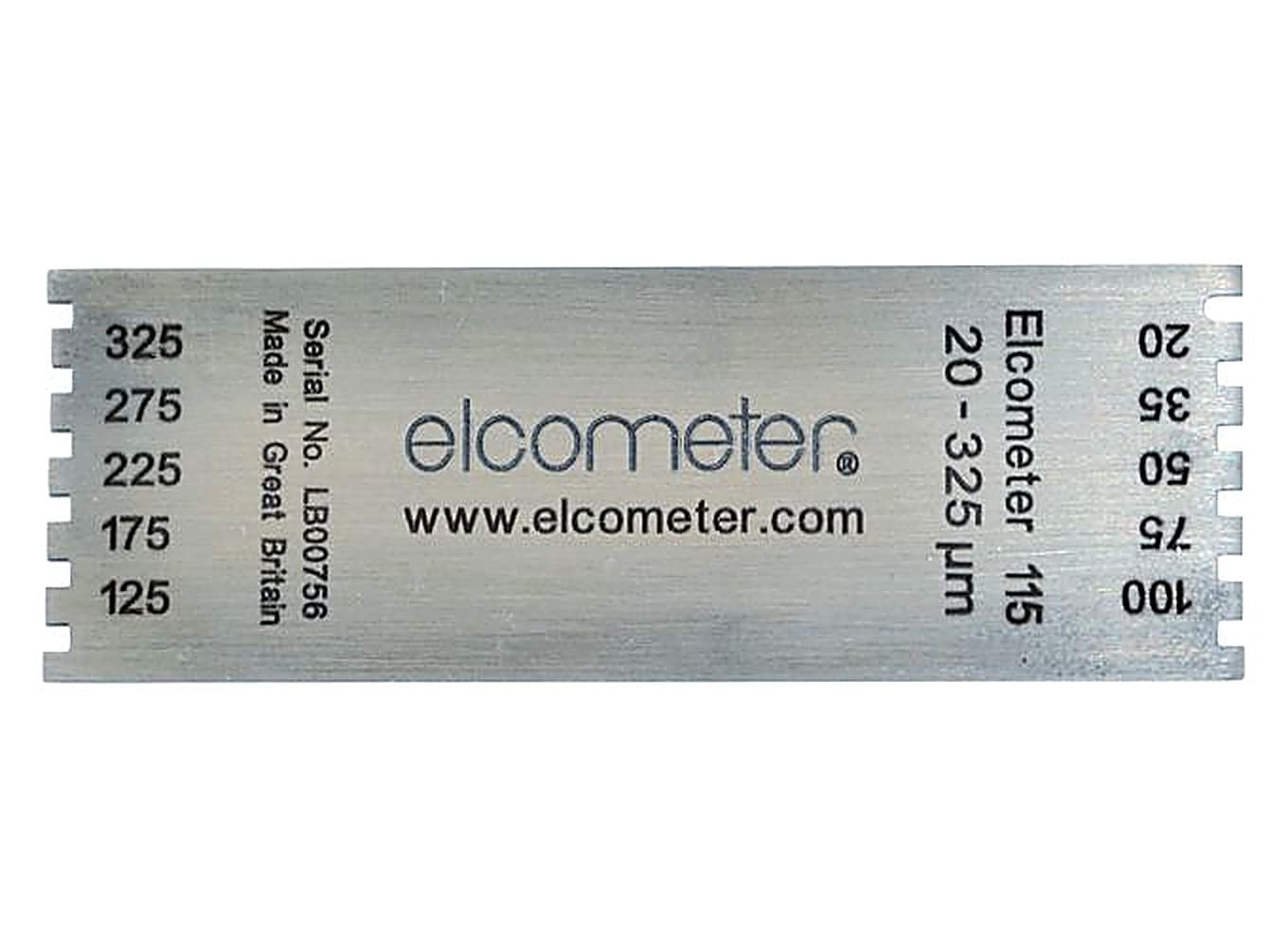

Elcometer 115 Wet Film Comb (Set of 4)
Elcometer 456 Digital Coating Thickness Gauges Dry Film Thickness Gauge DFTG



Kit Content / Part Number YKIT-PROTECTIVE-
1M  2SM  2TM  3SM  3TM 4M 5M 6M
Elcometer MTG2 Material Thickness Gauge Y Y
Elcometer 128 Pictorial Standards Y Y Y
Elcometer 131/1C Telescopic Inspection Mirror Y Y Y
Elcometer 137 Illuminated Magnifier Y
Elcometer 144 Paint Safe Marker Pens (Pack of 3) Y Y Y
Elcometer 147 Weld Gauge Y Y Y
Elcometer 142 Dust Tape Test Kit Y Y Y
Elcometer 138 Bresle Salt Kit2 Y Y Y
Elcometer 138/2 Surface Contamination Kit Y Y
Elcometer 122 Testex Replica Tape – Coarse & X-Coarse  Y Y Y Y
Elcometer 124 Thickness Gauge Y Y Y Y Y
Elcometer 224 Integral Digital Surface Profile Gauge Basic Basic Top Top
Elcometer 224 Separate Digital Surface Profile Gauge Top Top Top
Elcometer 116 Whirling Hygrometer Y
Elcometer 114 Dewpoint Calculator Y
Elcometer 212 Digital Pocket Thermometer – Surface Probe Y
Elcometer 319 Digital Dewpoint Meter Std Top Std Top Top Top Top
Elcometer 107 Cross Hatch Cutter Y Y Y Y Y
Elcometer 112 Hexagonal Wet Film Comb: 25 – 3000μm  Y Y Y Y Y Y
Elcometer 115 Wet Film Comb (Set of 4) Y Y
Elcometer 456 Integral Digital F Coating Gauge, 0 – 1500μm  Basic
Elcometer 456 Separate Digital Coating Thickness Gauge Std Std Top Top Top Top Top
Elcometer 456 Standard Separate Probe, 0 – 1500μm  Ferrous Ferrous FNF FNF
Elcometer 456 Ferrous Standard Separate F2 Probe, 0-5mm Ferrous Ferrous Ferrous
ElcoMaster® Software CD and USB Cable Y Y Y Y Y Y Y
Elcometer 121 Paint Inspection Gauge with Cross Hatch  Top Top
cutters 6 x 1, 2 & 3mm & ISO Adhesive Tape
Elcometer 270 Pinhole Detector (9, 67.5 & 90V) Y
Dimensions of Inspection Kit Carry Case Length (mm) 456 456 456 456 456 495 575 575
Breadth (mm) 384 384 384 384 384 420 475 475
Height (mm) 110 127 127 127 127 175 205 205



Accessories

Accessories

T224C500US Elcometer 224: Standard Separate Probe, 0 – 500µm (0 – 20mils)
T22420053 Elcometer 224: Replacement Tips (Pack of 2) with Fixing Tool
T22420095 Elcometer 224: Replacement Tips (Pack of 5)
T22419793 Elcometer 224: Tip Protection Cap
T99022255-9 Elcometer 224: Foil Set Scale SP1‡
T99022255-9C Elcometer 224: Certified Foil Set Scale SP1‡
T22420072 Elcometer 224: Glass Zero Tile
T31920162 Elcometer 319: Magnetic Surface Probe; -40 to 80ºC (-40 to 176ºF)
T9996390- Elcometer 319: Liquid Temperature Probe; -200 to 1100ºC (-328 to 2012ºF)
T99913700-1 Elcometer 107: Cutter, 4 sides, 6 teeth x 1mm
T99913700-2 Elcometer 107: Cutter, 4 sides, 11 teeth x 1mm
T99913700-3 Elcometer 107: Cutter, 4 sides, 11 teeth x 1.5mm
T99913700-4 Elcometer 107: Cutter, 4 sides, 6 teeth x 2mm
T99913700-5 Elcometer 107: Cutter, 4 sides, 6 teeth x 3mm
T9998894- Elcometer 107: Adhesive Tape, ASTM D3359, 2 rolls
K0001539M001 Elcometer 107: Adhesive Tape, ASTM D3359, 1 roll
T9999358- Elcometer 107: Adhesive Tape, IS0 2409, 2 rolls
K0001539M002 Elcometer 107: Adhesive Tape, IS0 2409, 1 roll
T10713356 Elcometer 107: Eye Glass
T10713357 Elcometer 107: Brush
T9996287- Elcometer 107: Allen Key, 2.5mm
T99022255-1 Elcometer 456: Scale 1 Foil Set†
T99022255-1C Elcometer 456: Certified Scale 1 Foil Set†
T9994910- Elcometer 456: Ferrous Zero Test Plate ±1%; 50.8 x 25.4mm (2.0 x 1.0″)
T9999529- Elcometer 456: Ferrous Zero Test Plate ±2%; 76.2 x 50.8mm (3.0 x 2.0″)
T99921325 Elcometer 224, 319 & 456: USB Cable

‡ Scale SP1 Set contains foil sizes: 125 & 500µm (5 & 20mils)

† Scale 1 Set contains foil sizes: 25, 50, 125, 250, 500 & 1000µm (1, 2, 5, 10, 20 & 40mils)

Data Sheet

Elcometer Protective Coating Inspection Kit 3 – Data Sheet

Elcometer Protective Coating Inspection Kit 3 Data Sheet

Standards

Elcometer Protective Coating Inspection Kit 3 – Standards

The Elcometer Protective Coatings Inspection Kit 3 can be used in accordance with :

  • AS 1580.408.4
  • AS 2331.1.4
  • AS 3894.3-B
  • AS 3894.9
  • AS/NZS 1580.107.3
  • AS/NZS 1580.108.1
  • ASTM B 499
  • ASTM D 1186-B
  • ASTM D 1400
  • ASTM D 3359-B
  • ASTM D 4414-A
  • ASTM D 4417-C
  • ASTM D 7091
  • ASTM E 376
  • ASTM G 12
  • BS 3900-C5-6A
  • BS 3900-C5-6B
  • BS 3900-C5-7B
  • BS 3900-E6
  • BS 5411-11
  • BS 5411-3
  • BS 5599
  • BS 7079-C5
  • DIN 50981
  • DIN 50984
  • ECCA T1
  • ECCA T6
  • EN 13523-1
  • EN 13523-6
  • IMO MSC.215(82)
  • IMO MSC.244 (83)
  • ISO 1461, ISO 16276-2
  • ISO 19840
  • ISO 2063
  • ISO 2360
  • ISO 2409
  • ISO 2808-1A
  • ISO 2808-6A
  • ISO 2808-6B
  • ISO 2808-7B
  • ISO 2808-7C
  • ISO 2808-7D
  • ISO 2808-12
  • ISO 8503-5
  • JIS K 5600-5-6
  • NACE RP0287
  • NF T30-038
  • NF T30-124
  • NF T30-125
  • SS 184159
  • SSPC PA 2
  • US Navy PPI 63101-000
  • US Navy NSI 009-32

Standards not in bold have been superseded but are still recognised in some industries
