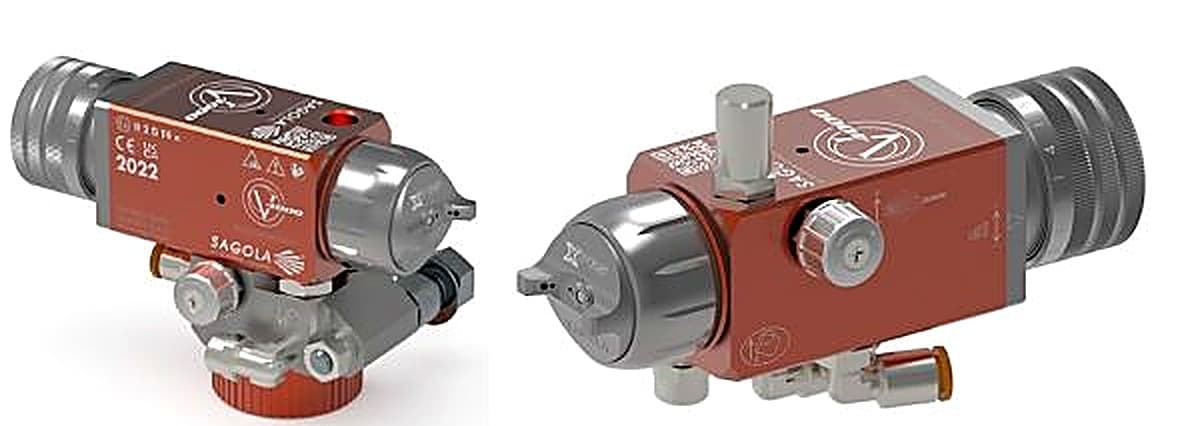

Sagola V4000 Automatic Spray Gun



Product Description


The new Sagola V4000 Automatic Spray Gun ensures a consistent high quality finish for the most demanding automated spray lines.

Manual or robotic control
For fully automated paint lines the Sagola V4000 is available with automatic fan size regulation, where an air inlet replaces the manual regulator wheel.

Quick Change – minimal downtime
Available with quick change mount, the Sagola V4000 simplifies maintenance and cleaning work, allowing you to reposition the gun in exactly the same place keeping the setup parameters.

Versatile
The extensive range of interchangeable needles, nozzles, and aircaps enables the Sagola V4000 to apply all types of paints and sprayable products – even abrasive fluids!

Metal on metal technology
The Sagola V4000 has no air diffusers, blind chambers or threads in contact with paint, and no gaskets, seals or plastic parts in the product area – just metal on metal contact making it easier to clean and maintain.

Access to complex shaped parts
Thanks to its size, the Sagola V4000 Series can be manoeuvred to access even the most complex components.

Quality built in
Manufactured in accordance with International Standards EN 1953:2013 Ap. 5.2.4

Key Features



Part_Number_Size_3

1) All the benefits of the Sagola X4100 in an automatic spray gun.

2) Metal to metal technology. No gaskets, O-rings or plastic parts in the fluid area.

3) Highly durable self-adjusting packing gland.

4) Anodized aluminium aircaps (corrosion free). Great resistance and durability. Suitable for aggressive environments.

5) High precision progressive fan regulator.

6) Quick connector product/fluid inlet.

7) Quick connector air spray inlet.

8) All connections on the same side of the gun or quick change mount for easier setup of the painting line.

9) Product regulator. Precision adjustment with vernier set to “0”.

10) Highly durable operating piston designed and tested for demanding continuous paint lines

11) Robust forged anodized aluminium body, treated with an anti-corrosion coating both inside and out, for high protection against corrosion.

Specifications

 Direct Mount ManualDirect Mount RoboticQuick Change Mount ManualQuick Change Mount Robotic
Weight915g987g1.24kg1.32kg
Dimensions164 x 45 x 104mm164 x 45 x 104mm164 x 45 x 174mm164 x 45 x 174mm
Operation inlet connection4mm4mm4mm4mm
Air inlet connection4mm4mm4mm4mm
Product inlet connectionBSP 1/4″ MBSP 1/4″ MBSP 1/4″ MBSP 1/4″ M
Maximum air pressure8bar8bar8bar8bar
Recommended working air pressure2 – 3bar2 – 3bar2 – 3bar2 – 3bar
Materials on contact with the productStainless steel, POM, Teflon, Nylon and Tungsten Carbide.
Recommended application distance
EPA18 – 20cm18 – 20cm18 – 20cm18 – 20cm
HVLP12 – 15cm12 – 15cm15 – 20cm
Conventional20 – 25cm20 – 25cm18 – 22cm20 – 25cm
Packing ListSagola V4000 Automatic Spray Gun complete with: Sagola V4000 Series Aircap, Stainless Steel or Tungsten Carbide Needle & Nozzle Kit (as specified below), Cleaning Brush & Wrench

Data Sheet

Part Numbers


Sagola V4000 DMM Automatic Spray Gun, with a X765 aircap and 0.80mm needle & nozzle


Part Number : PG10250901

Sagola V4000 DMM Automatic Spray Gun with a X765 aircap and 1.00mm needle & nozzle


Part Number : PG10250902

Sagola V4000 DMM Automatic Spray Gun with a X765 aircap and 1.20mm needle & nozzle


Part Number : PG10250903

Sagola V4000 DMM Automatic Spray Gun with a X765 aircap and 1.40mm needle & nozzle


Part Number : PG10250904

Sagola V4000 DMM Automatic Spray Gun with a 500 aircap and 0.80mm needle & nozzle


Part Number : PG10250905

Sagola V4000 DMM Automatic Spray Gun with a 500 aircap and 1.00mm needle & nozzle


Part Number : PG10250906

Sagola V4000 DMM Automatic Spray Gun with a 500 aircap and 1.20mm needle & nozzle


Part Number : PG10250907

Sagola V4000 DMM Automatic Spray Gun with a 600 aircap and 0.80mm needle & nozzle


Part Number : PG10250908

Sagola V4000 DMM Automatic Spray Gun with a 600 aircap and 1.00mm needle & nozzle


Part Number : PG10250909

Sagola V4000 DMM Automatic Spray Gun with a 600 aircap and 1.20mm needle & nozzle


Part Number : PG10250910

Sagola V4000 DMM Automatic Spray Gun with a 600 aircap and 1.40mm needle & nozzle


Part Number : PG10250911

Sagola V4000 DMM Automatic Spray Gun with a XT01B aircap and 0.80mm needle & nozzle


Part Number : PG10250912

Sagola V4000 DMM Automatic Spray Gun with a XT01B aircap and 1.00mm needle & nozzle


Part Number : PG10250913

Sagola V4000 DMM Automatic Spray Gun with XT01B aircap and 1.20mm needle & nozzle


Part Number : PG10250914

Sagola V4000 DMM Automatic, Spray Gun with XT01B aircap and 1.40mm needle & nozzle


Part Number : PG10250915

Sagola V4000 DMM Automatic, Spray Gun with X777 aircap and 1.00mm needle & nozzle


Part Number : PG10250916

Sagola V4000 DMM Automatic, Spray Gun with XT03 aircap and 1.00mm needle & nozzle


Part Number : PG10250917

Sagola V4000 DMM Automatic, Spray Gun with XT03 aircap and 1.20mm needle & nozzle


Part Number : PG10250918

Sagola V4000 DMM Automatic, Spray Gun with X-SuperVIT aircap and 1.00mm needle & nozzle


Part Number : PG10250919

Sagola V4000 DMM Automatic, Spray Gun with X-SuperVIT aircap and 1.20mm needle & nozzle


Part Number : PG10250920

Sagola V4000 DMM Automatic, Spray Gun with X-SuperVIT aircap and 1.40mm needle & nozzle


Part Number : PG10250921

Sagola V4000 DMM Automatic, Spray Gun with X20A aircap and 1.20mm needle & nozzle


Part Number : PG10250922

Sagola V4000 DMM Automatic, Spray Gun with X20A aircap and 1.40mm needle & nozzle


Part Number : PG10250923

Sagola V4000 DMM Automatic, Spray Gun with X20A aircap and 1.80mm needle & nozzle


Part Number : PG10250924

Sagola V4000 DMM Automatic, Spray Gun with 797 aircap and 1.00mm needle & nozzle


Part Number : PG10250925

Sagola V4000 DMM Automatic, Spray Gun with X3030 aircap and 1.20mm needle & nozzle


Part Number : PG10250926

Sagola V4000 DMM Automatic, Spray Gun with X3030 aircap and 1.40mm needle & nozzle


Part Number : PG10250927

Sagola V4000 DMM Automatic, Spray Gun with X96 aircap and 1.40mm needle & nozzle


Part Number : PG10250928

Sagola V4000 DMM Automatic, Spray Gun with X96 aircap and 1.80mm needle & nozzle


Part Number : PG10250929

Sagola V4000 DMR Automatic, Spray Gun with X765 aircap and 0.80mm needle & nozzle


Part Number : PG10251001

Sagola V4000 DMR Automatic, Spray Gun with X765 aircap and 1.00mm needle & nozzle


Part Number : PG10251002

Sagola V4000 DMR Automatic, Spray Gun with X765 aircap and 1.40mm needle & nozzle


Part Number : PG10251003

Sagola V4000 DMR Automatic, Spray Gun with 500 aircap and 0.80mm needle & nozzle


Part Number : PG10251004

Sagola V4000 DMR Automatic, Spray Gun with 500 aircap and 1.00mm needle & nozzle


Part Number : PG10251005

Sagola V4000 DMR Automatic, Spray Gun with 500 aircap and 1.20mm needle & nozzle


Part Number : PG10251006

Sagola V4000 DMR Automatic, Spray Gun with XT01B aircap and 0.80mm needle & nozzle


Part Number : PG10251007

Sagola V4000 DMR Automatic, Spray Gun with XT01B aircap and 1.40mm needle & nozzle


Part Number : PG10251008

Sagola V4000 DMR Automatic, Spray Gun with 797 aircap and 1.00mm needle & nozzle


Part Number : PG10251009

Sagola V4000 DMR Automatic, Spray Gun with 797 aircap and 1.20mm needle & nozzle


Part Number : PG10251010

Sagola V4000 DMR Automatic, Spray Gun with X20A aircap and 1.20mm needle & nozzle


Part Number : PG10251011

Sagola V4000 DMR Automatic, Spray Gun with X20A aircap and 1.40mm needle & nozzle


Part Number : PG10251012

Sagola V4000 DMR Automatic, Spray Gun with 600 aircap and 1.20mm needle & nozzle


Part Number : PG10251013

Sagola V4000 DMR Automatic, Spray Gun with 600 aircap and 1.40mm needle & nozzle


Part Number : PG10251014

Sagola V4000 DMR Automatic, Spray Gun with X3030 aircap and 1.20mm needle & nozzle


Part Number : PG10251015

Sagola V4000 DMR Automatic, Spray Gun with X3030 aircap and 1.40mm needle & nozzle


Part Number : PG10251016

Sagola V4000 QCM Automatic, Spray Gun with X765 aircap and 0.80mm needle & nozzle


Part Number : PG10250950

Sagola V4000 QCM Automatic, Spray Gun with X765 aircap and 1.00mm needle & nozzle


Part Number : PG10250951

Sagola V4000 QCM Automatic, Spray Gun with X765 aircap and 1.20mm needle & nozzle


Part Number : PG10250952

Sagola V4000 QCM Automatic, Spray Gun with X765 aircap and 1.40mm needle & nozzle


Part Number : PG10250953

Sagola V4000 QCM Automatic, Spray Gun with 500 aircap and 0.80mm needle & nozzle


Part Number : PG10250954

Sagola V4000 QCM Automatic, Spray Gun with 500 aircap and 1.00mm needle & nozzle


Part Number : PG10250955

Sagola V4000 QCM Automatic, Spray Gun with 500 aircap and 1.20mm needle & nozzle


Part Number : PG10250956

Sagola V4000 QCM Automatic, Spray Gun with 600 aircap and 0.80mm needle & nozzle


Part Number : PG10250957

Sagola V4000 QCM Automatic, Spray Gun with 600 aircap and 1.00mm needle & nozzle


Part Number : PG10250958

Sagola V4000 QCM Automatic, Spray Gun with 600 aircap and 1.20mm needle & nozzle


Part Number : PG10250959

Sagola V4000 QCM Automatic, Spray Gun with 600 aircap and 1.40mm needle & nozzle


Part Number : PG10250960

Sagola V4000 QCM Automatic, Spray Gun with XT01B aircap and 0.80mm needle & nozzle


Part Number : PG10250961

Sagola V4000 QCM Automatic, Spray Gun with XT01B aircap and 1.00mm needle & nozzle


Part Number : PG10250962

Sagola V4000 QCM Automatic, Spray Gun with XT01B aircap and 1.20mm needle & nozzle


Part Number : PG10250963

Sagola V4000 QCMAutomatic, Spray Gun with XT01B aircap and 1.40mm needle & nozzle


Part Number : PG10250964

Sagola V4000 QCM Automatic, Spray Gun with X777 aircap and 1.00mm needle & nozzle


Part Number : PG10250965

Sagola V4000 QCM Automatic, Spray Gun with XT03 aircap and 1.00mm needle & nozzle


Part Number : PG10250966

Sagola V4000 QCM Automatic, Spray Gun with XT03 aircap and 1.20mm needle & nozzle


Part Number : PG10250967

Sagola V4000 QCM Automatic, Spray Gun with X-SuperVIT aircap and 1.00mm needle & nozzle


Part Number : PG10250968

Sagola V4000 QCM Automatic, Spray Gun with X-SuperVIT aircap and 1.20mm needle & nozzle


Part Number : PG10250969

Sagola V4000 QCM Automatic, Spray Gun with X-SuperVIT aircap and 1.40mm needle & nozzle


Part Number : PG10250970

Sagola V4000 QCM Automatic, Spray Gun with X20A aircap and 1.20mm needle & nozzle


Part Number : PG10250971

Sagola V4000 QCM Automatic, Spray Gun with X20A aircap and 1.40mm needle & nozzle


Part Number : PG10250972

Sagola V4000 QCM Automatic, Spray Gun with X20A aircap and 1.80mm needle & nozzle


Part Number : PG10250973

Sagola V4000 QCM Automatic, Spray Gun with 797 aircap and 1.20mm needle & nozzle


Part Number : PG10250974

Sagola V4000 QCM Automatic, Spray Gun with X3030 aircap and 1.20mm needle & nozzle


Part Number : PG10250975

Sagola V4000 QCM Automatic, Spray Gun with X3030 aircap and 1.40mm needle & nozzle


Part Number : PG10250976

Sagola V4000 QCM Automatic, Spray Gun with X96 aircap and 1.40mm needle & nozzle


Part Number : PG10250977

Sagola V4000 QCM Automatic, Spray Gun with X96 aircap and 1.80mm needle & nozzle


Part Number : PG10250978

Sagola V4000 QCR Automatic, Spray Gun with X765 aircap and 0.80mm needle & nozzle


Part Number : PG10251050

Sagola V4000 QCR Automatic, Spray Gun with X765 aircap and 1.00mm needle & nozzle


Part Number : PG10251051

Sagola V4000 QCR Automatic, Spray Gun with X765 aircap and 1.40mm needle & nozzle


Part Number : PG10251052

Sagola V4000 QCR Automatic, Spray Gun with 500 aircap and 0.80mm needle & nozzle


Part Number : PG10251053

Sagola V4000 QCR Automatic, Spray Gun with 500 aircap and 1.00mm needle & nozzle


Part Number : PG10251054

Sagola V4000 QCR Automatic, Spray Gun with 500 aircap and 1.20mm needle & nozzle


Part Number : PG10251055

Sagola V4000 QCR Automatic, Spray Gun with XT01B aircap and 0.80mm needle & nozzle


Part Number : PG10251056

Sagola V4000 QCR Automatic, Spray Gun with XT01B aircap and 1.40mm needle & nozzle


Part Number : PG10251057

Sagola V4000 QCR Automatic, Spray Gun with 797 aircap and 1.00mm needle & nozzle


Part Number : PG10251058

Sagola V4000 QCR Automatic, Spray Gun with 797 aircap and 1.20mm needle & nozzle


Part Number : PG10251059

Sagola V4000 QCR Automatic, Spray Gun with X20A aircap and 1.20mm needle & nozzle


Part Number : PG10251060

Sagola V4000 QCR Automatic, Spray Gun with X20A aircap and 1.40mm needle & nozzle


Part Number : PG10251061

Sagola V4000 QCR Automatic, Spray Gun with 600 aircap and 1.20mm needle & nozzle


Part Number : PG10251062

Sagola V4000 QCR Automatic, Spray Gun with aircap and 1.40mm needle & nozzle


Part Number : PG10251063

Sagola V4000 QCR Automatic, Spray Gun with X3030 aircap and 1.20mm needle & nozzle


Part Number : PG10251064

Sagola V4000 QCR Automatic, Spray Gun with X3030 aircap and 1.40mm needle & nozzle


Part Number : PG10251065

Sagola V4000 DMM Automatic, Spray Gun with X765 aircap and 1.20mm Tungsten Carbide needle & nozzle


Part Number : PG10250935

Sagola V4000 DMM Automatic, Spray Gun with X765 aircap and 1.40mm Tungsten Carbide needle & nozzle


Part Number : PG10250936

Sagola V4000 DMM Automatic, Spray Gun with 500 aircap and 1.20mm Tungsten Carbide needle & nozzle


Part Number : PG10250937

Sagola V4000 DMM Automatic, Spray Gun with 600 aircap and 1.40mm Tungsten Carbide needle & nozzle


Part Number : PG10250938

Sagola V4000 DMM Automatic, Spray Gun with XT03 aircap and 1.40mm Tungsten Carbide needle & nozzle


Part Number : PG10250939

Sagola V4000 DMM Automatic, Spray Gun with 67 aircap and 1.80mm Tungsten Carbide needle & nozzle


Part Number : PG10250940

Sagola V4000 DMM Automatic, Spray Gun with 64 aircap and 2.20mm Tungsten Carbide needle & nozzle


Part Number : PG10250941


Sagola V4000 DMM Automatic, Spray Gun with 62 aircap and 2.80mm Tungsten Carbide needle & nozzle


Part Number : PG10250942

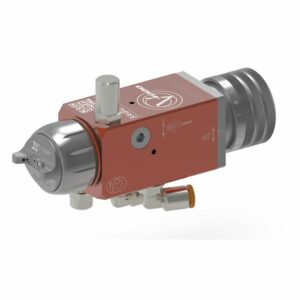

Sagola V4000 DMR Automatic, Spray Gun with X765 aircap and 1.20mm Tungsten Carbide needle & nozzle


Part Number : PG10251020

Sagola V4000 DMR Automatic, Spray Gun with X765 aircap and 1.40mm Tungsten Carbide needle & nozzle


Part Number : PG10251021

Sagola V4000 DMR Automatic, Spray Gun with 500 aircap and 1.20mm Tungsten Carbide needle & nozzle


Part Number : PG10251022

Sagola V4000 DMR Automatic, Spray Gun with 600 aircap and 1.20mm Tungsten Carbide needle & nozzle


Part Number : PG10251023

Sagola V4000 DMR Automatic, Spray Gun with 600 aircap and 1.40mm Tungsten Carbide needle & nozzle


Part Number : PG10251024

Sagola V4000 DMR Automatic, Spray Gun with XT01B aircap and 1.20mm Tungsten Carbide needle & nozzle


Part Number : PG10251025

Sagola V4000 DMR Automatic, Spray Gun with 78 aircap and 1.40mm Tungsten Carbide needle & nozzle


Part Number : PG10251026

Sagola V4000 DMR Automatic, Spray Gun with 67 aircap and 1.80mm Tungsten Carbide needle & nozzle


Part Number : PG10251027

Sagola V4000 DMR Automatic, Spray Gun with 64 aircap and 2.20mm Tungsten Carbide needle & nozzle


Part Number : PG10251028

Sagola V4000 DMR Automatic, Spray Gun with 62 aircap and 2.80mm Tungsten Carbide needle & nozzle


Part Number : PG10251029

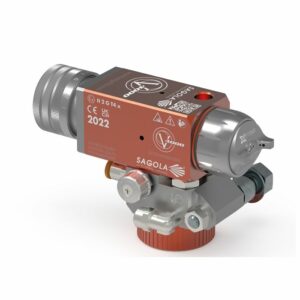

Sagola V4000 QCM Automatic, Spray Gun with X765 aircap and 1.20mm Tungsten Carbide needle & nozzle


Part Number : PG10250985

Sagola V4000 QCM Automatic, Spray Gun with X765 aircap and 1.40mm Tungsten Carbide needle & nozzle


Part Number : PG10250986


Sagola V4000 QCM Automatic, Spray Gun with 500 aircap and 1.20mm Tungsten Carbide needle & nozzle


Part Number : PG10250987

Sagola V4000 QCM Automatic, Spray Gun with 600 aircap and 1.40mm Tungsten Carbide needle & nozzle


Part Number : PG10250988

Sagola V4000 QCM Automatic, Spray Gun with XT03 aircap and 1.40mm Tungsten Carbide needle & nozzle


Part Number : PG10250989

Sagola V4000 QCM Automatic, Spray Gun with 67 aircap and 1.80mm Tungsten Carbide needle & nozzle


Part Number : PG10250990

Sagola V4000 QCM Automatic, Spray Gun with 64 aircap and 2.20mm Tungsten Carbide needle & nozzle


Part Number : PG10250991

Sagola V4000 QCM Automatic, Spray Gun with 62 aircap and 2.80mm Tungsten Carbide needle & nozzle


Part Number : PG10250992

Sagola V4000 QCR Automatic, Spray Gun with X765 aircap and 1.20mm Tungsten Carbide needle & nozzle


Part Number : PG10251070

Sagola V4000 QCR Automatic, Spray Gun with X765 aircap and 1.40mm Tungsten Carbide needle & nozzle


Part Number : PG10251071

Sagola V4000 QCR Automatic, Spray Gun with 500 aircap and 1.20mm Tungsten Carbide needle & nozzle


Part Number : PG10251072

Sagola V4000 QCR Automatic, Spray Gun with 600 aircap and 1.20mm Tungsten Carbide needle & nozzle


Part Number : PG10251073

Sagola V4000 QCR Automatic, Spray Gun with 600 aircap and 1.40mm Tungsten Carbide needle & nozzle


Part Number : PG10251074

Sagola V4000 QCR Automatic, Spray Gun with XT01B aircap and 1.20mm Tungsten Carbide needle & nozzle


Part Number : PG10251075

Sagola V4000 QCR Automatic, Spray Gun with aircap and 1.40mm Tungsten Carbide needle & nozzle


Part Number : PG10251076


Sagola V4000 QCR Automatic, Spray Gun with 67 aircap and 1.80mm Tungsten Carbide needle & nozzle


Part Number : PG10251077

Sagola V4000 QCR Automatic, Spray Gun with 64 aircap and 2.20mm Tungsten Carbide needle & nozzle


Part Number : PG10251078

Sagola V4000 QCR Automatic, Spray Gun with 62 aircap and 2.80mm Tungsten Carbide needle & nozzle


Part Number : PG10251079


Accessories

Sagola X20A Aircap
Part Number:PT56418156





Sagola X765 Aircap
Part Number:PT56418157





Sagola X777 Aircap
Part Number:PT56418158





Sagola 797 Aircap
Part Number:PT56418159





Sagola 600 Aircap
Part Number:PT56418161





Sagola X3030 Aircap
Part Number:PT56418207





Sagola 500 Aircap
Part Number:PT56418231





Sagola X96 Aircap
Part Number:PT56418726





Sagola XT03 Aircap
Part Number:PT56418727





Sagola XT01B Aircap
Part Number:PT56418729





Sagola 67 Aircap
Part Number:PT56418731





Sagola 64 Aircap
Part Number:PT56418732





Sagola 62 Aircap
Part Number:PT56418733





Sagola 78 Aircap
Part Number:PT56418734





Sagola XSuperVIT Aircap
Part Number:PT56418725





Aircap Gasket & Spring Clip Kit

Part Number:PT56418678





Aircap Gasket, Pack of 5

Part Number:PT56418681





0.80mm Stainless Steel Needle and Nozzle Kit Sagola V4000
Part Number:PT56418150





1.00mm Stainless Steel Needle and Nozzle Kit Sagola V4000
Part Number:PT56418151





1.20mm Stainless Steel Needle and Nozzle Kit Sagola V4000
Part Number:PT56418152





1.40mm Stainless Steel Needle and Nozzle Kit Sagola V4000
Part Number:PT56418153





1.80mm Stainless Steel Needle and Nozzle Kit Sagola V4000
Part Number:PT56418154





1.20mm Tungsten Carbide Needle and Nozzle Kit Sagola V4000
Part Number:PT56418101





1.40mm Tungsten Carbide Needle and Nozzle Kit Sagola V4000
Part Number:PT56418102





1.80mm Tungsten Carbide Needle and Nozzle Kit Sagola V4000
Part Number:PT56418103





2.20mm Tungsten Carbide Needle and Nozzle Kit Sagola V4000
Part Number:PT56418104





2.80mm Tungsten Carbide Needle and Nozzle Kit Sagola V4000
Part Number:PT56418105
