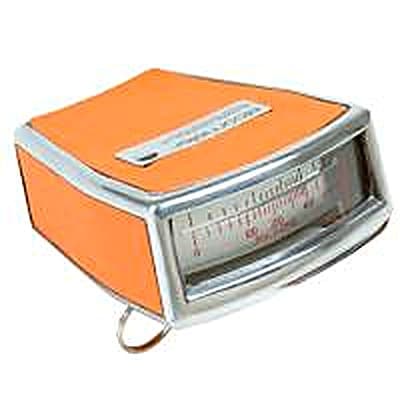

Elcometer 101 Magnetic Coating Thickness Gauge - Discontinued

  elcometer-101-magnetic-coating-thickness-gauge

Product Description

The original non – destructive dry film thickness gauge, the Elcometer 101 Magnetic Coating Thickness Gauge was the world’s first portable coating thickness gauge with the original being produced in 1947.
  • Insensitive to hot and cold surfaces – ideal for hot sprayed metal coatings
  • Incorporates reading hold feature
  • Accuracy of ±10%
  • Ideal for hazardous areas
The Elcometer 101 Magnetic Coating Thickness Gauge can be used in accordance with:
  • AS 2331.1.3
  • ASTM B 499
  • ASTM G 12
  • BS 5411-11
  • ISO 2178
  • SSPC PA2
Standards not in bold have been superseded but are still recognised in some industries


Specifications

Elcometer 101 Magnetic Coating Thickness Gauge – Specifications

Part Number Description Range
A101A-05A Elcometer 101 Mechanical Coating Thickness Gauge 0 – 250µm
A101A-01A Elcometer 101 Mechanical Coating Thickness Gauge 0 – 600µm
Operating Plane 90° to substrate
Minimum Measurement Area 38 x 15mm
Minimum Measurement Diameter 25mm (on bar material)
Accuracy ±10% of the reading or 2.5µm whichever is the greater
Certificate available Certificate of Calibration: issued for Fixed Calibration equipment and shows readings and traceability.
Elcometer 101 Magnetic Coating Thickness Gauge Packing List:
  • Elcometer 101
  • calibration foils
  • carry case
  • wrist harness
  • operating instructions

Data Sheet

Elcometer 101 Magnetic Coating Thickness Gauge – Data Sheet

Elcometer 101 Magnetic Coating Thickness Gauge Data Sheet

Standards

Elcometer 101 Magnetic Coating Thickness Gauge – Standards

The Elcometer 101Magnetic Coating Thickness Gauge can be used in accordance with the following Standards:
  • ISO 2178
  • AS 2331.1.3
  • ASTM B 499
  • ASTM G 12
  • BS 5411-11
  • ISO 2178
  • SSPC PA2
Standards not in bold have been superseded but are still recognised in some industries

Instruction Manual

Elcometer 101 Magnetic Coating Thickness Gauge – Instruction Manual

Elcometer 101 Magnetic Coating Thickness Gauge Instruction Manual
